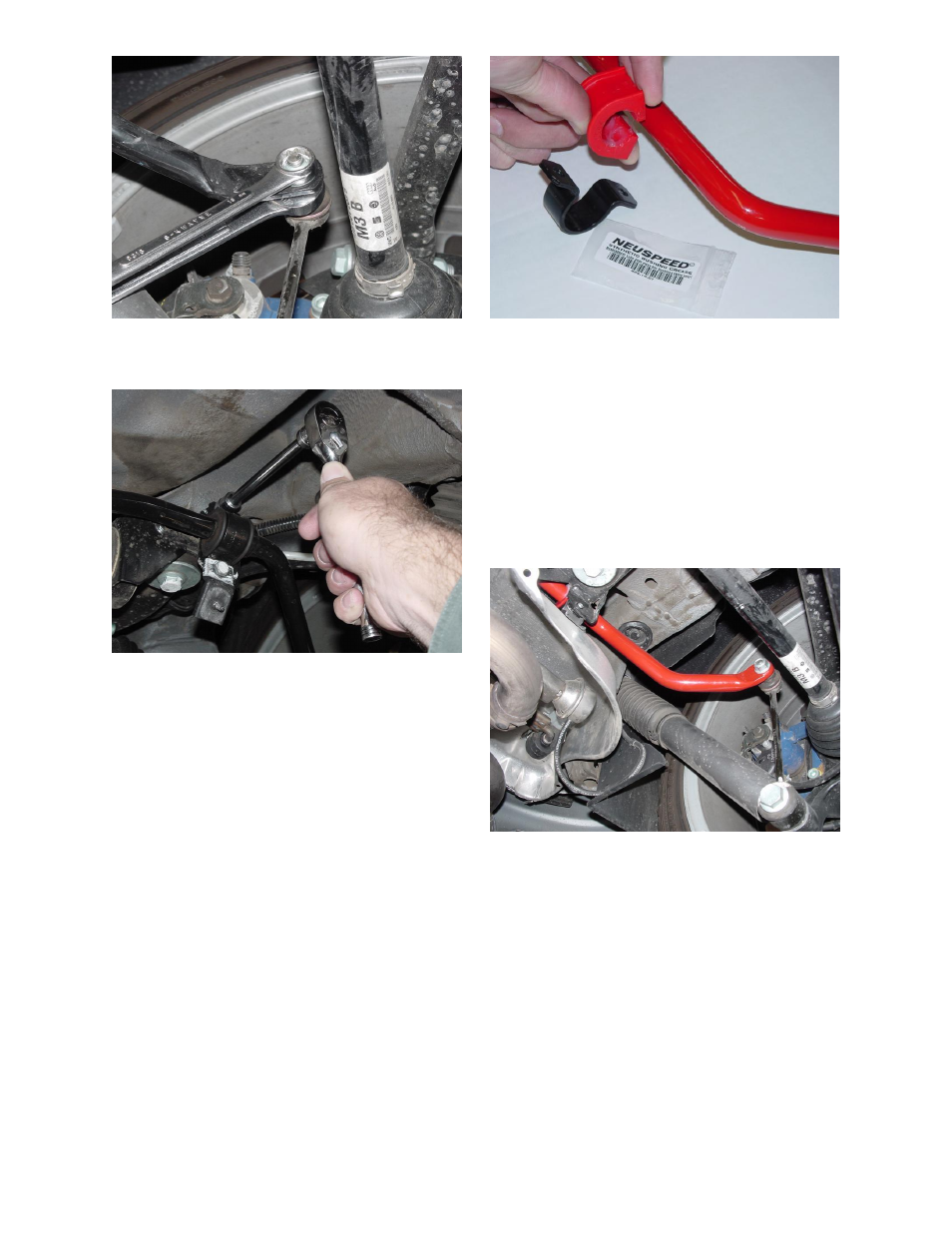

6. Disconnect end links from anti-roll bar by securing
stud with 17mm wrench and loosening nut with 16mm
wrench. (Left side shown, repeat for right side)
7. Remove four mounting bolts (13mm hex) and
remove anti-roll bar from vehicle.
8. Apply supplied grease to inside of supplied bushing
and install bushing onto supplied bar. (Left side shown,
repeat for right side)
9. Position supplied bar on end links and install nuts.
Torque to 30 Nm (22 lbf ft.)
10. Rotate bar up to sub-frame, position mounting
clamps and install bolts (13mm Hex). Torque bolts to
25 Nm (18 lbf ft.)
11. Install heat shield and exhaust in reverse of
removal.
9. Installation is complete.
10. Double-check complete installation and TEST
DRIVE CAREFULLY!
