Spectrum2 Printer Operator’s Guide

Document Revision: 100102

38

Lightly hold printhead in place and tighten the two Philips head screws

Close chassis and completely tighten screws

Printer is now ready to resume operation

Printhead Replacement, cont'd.

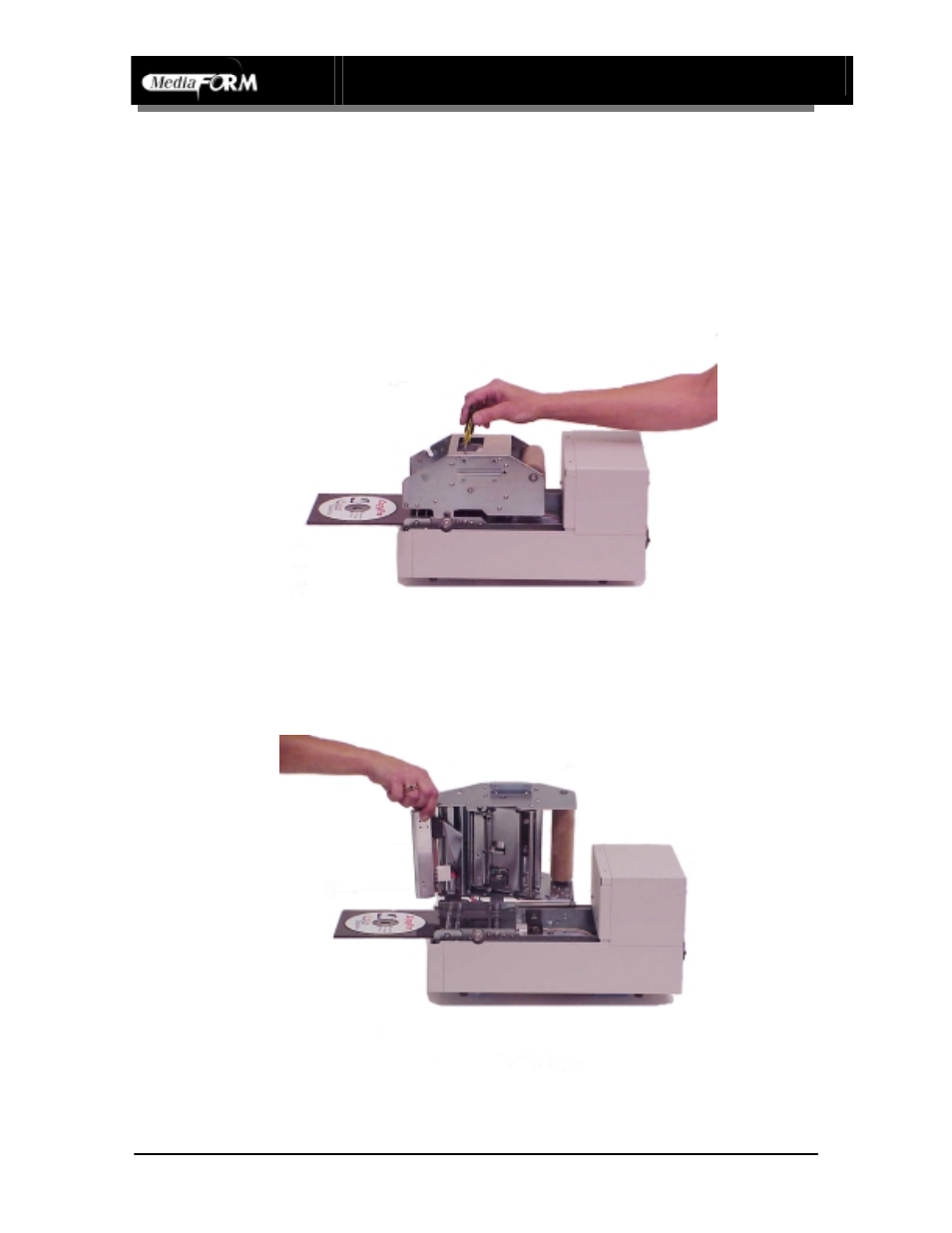

Figure 17:

Printhead is retained by Philips type screws accessed from top of printer

Figure 18:

Printhead power and data cables shown after printhead screws removed
