Spectrum2 Printer Operator’s Guide

Document Revision: 100102

21

Control Panel Operation


Spectrum2 keypad

The Control Panel consists of three buttons and status LEDs, which controls the operation
of the Spectrum2 as described below.















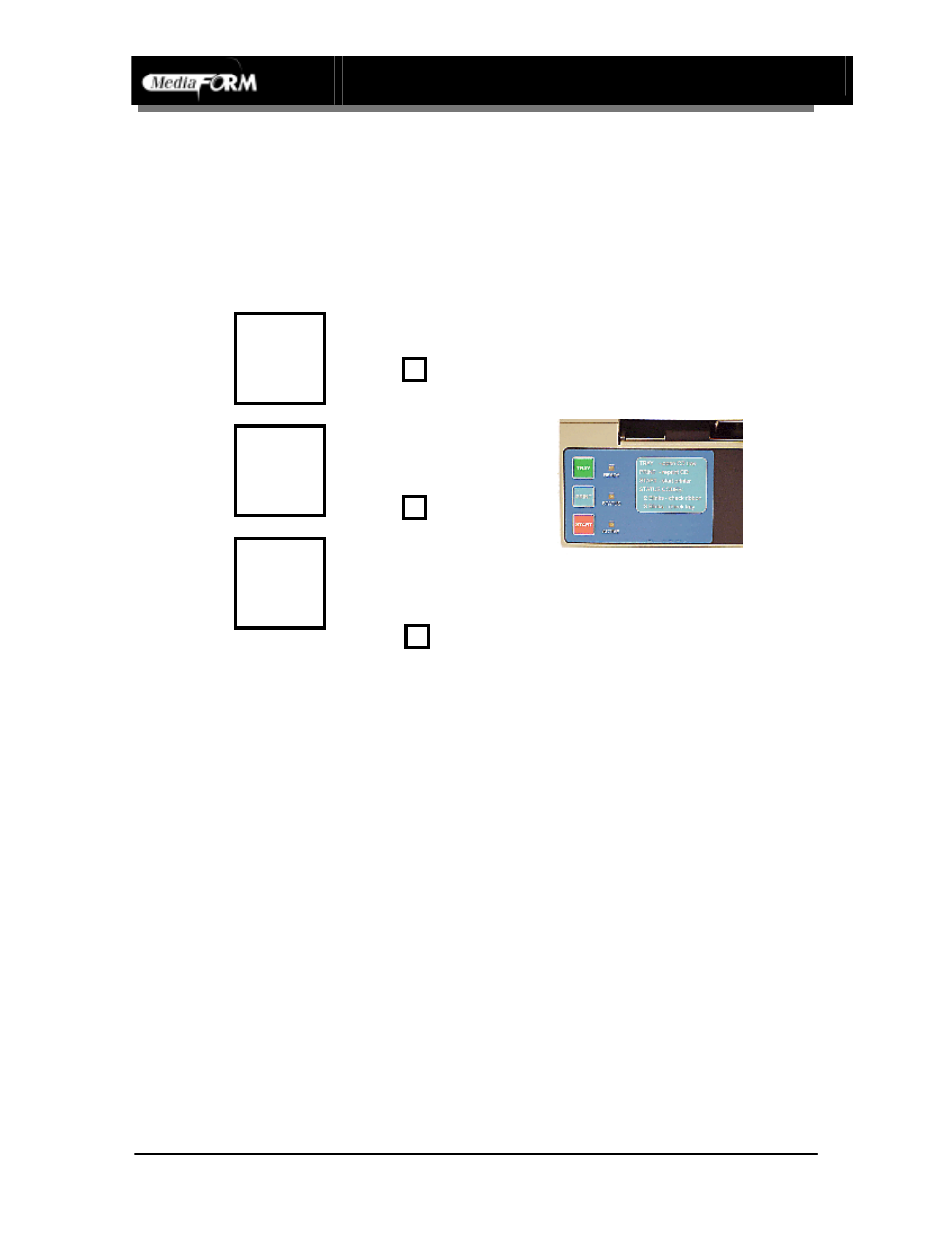

Figure 5:

Spectrum2 Control

Panel

Tray Button

The ‘Tray’ button will extend and retract the CD tray. Use this button for manually
opening the CD tray for loading and unloading CD media.

Print Button

The ‘Print’ button is used to reprint the most recent label. The CD tray is closed
automatically when the print is started.

Start Button

The ‘Start’ button is used to re-start printer after error condition (ie. ribbon out) is
cleared. Pressing 'Start' resets the printer and may allow quick resumption of the print
job. (Some errors may require resubmitting the print file after pressing 'Start')

Ready LED

This LED indicates printer is ON and ready to accept a print job

Status LED

This LED indicates error conditions by flashing error codes (See error code list section)

TRAY

PRINT

START

READY

STATUS

ACTIVE
