Changing the CD Tray

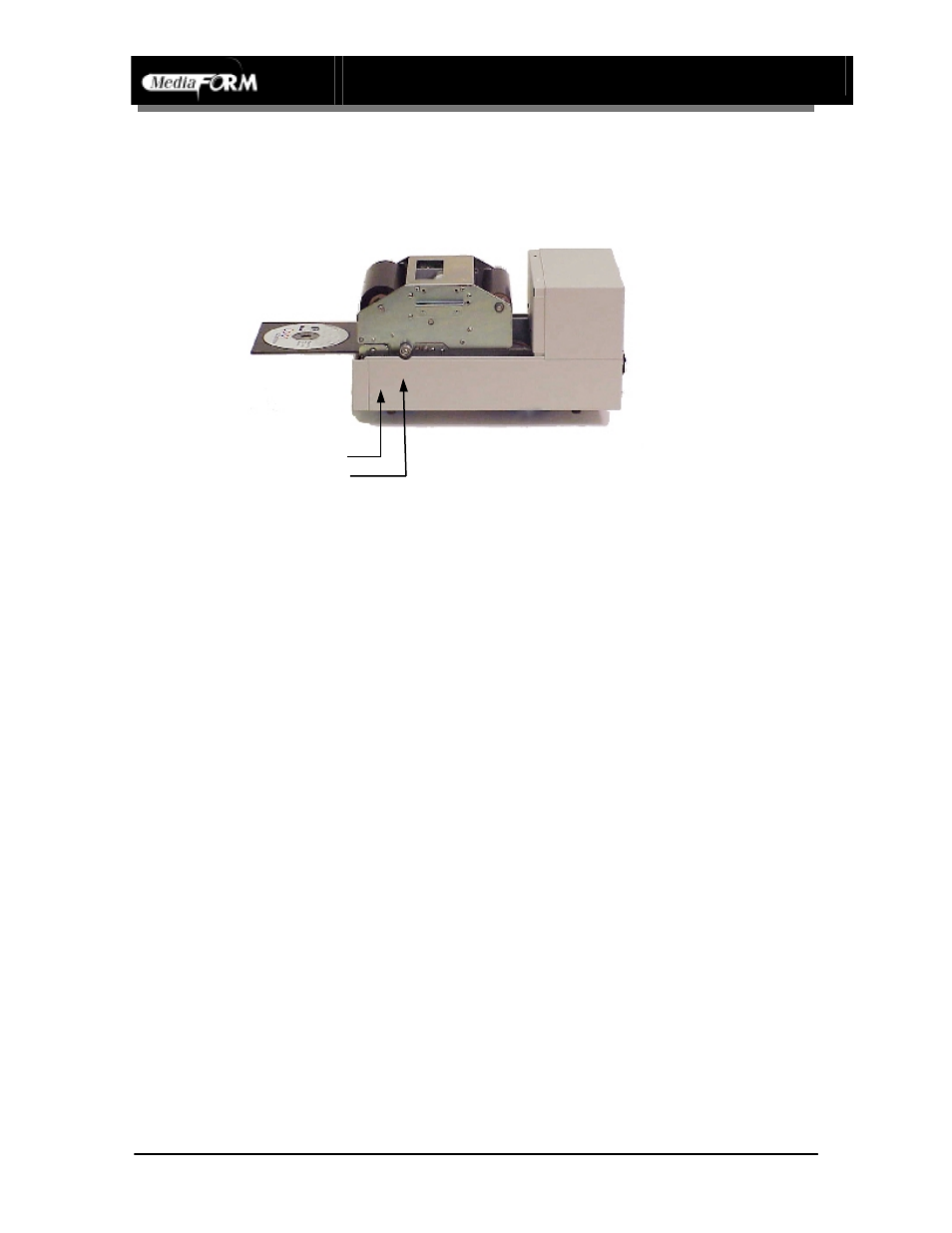

Figure 9: Spectrum2 Tray Release Button location
To Remove CD Tray
• Remove top cover
• From the Printer’s front control panel: Press Tray button to extend tray
• Press Tray Release button (this is a small, metal, spring loaded button located near
Chassis Release Knob)
• Hold CD Tray with left hand and pull outward, while pressing Tray Release button
• CD Tray should disengage from printer
To Insert CD Tray
• Turn OFF Power, and remove top cover
• If there is a CD tray in printer, remove CD tray from printer (see above)
• Hold CD tray in front of printer, with circular disc end oriented outward
• Gently guide end of tray into printer
• Try to guide CD tray straight into printer
• Stop when CD tray is at least halfway into printer
• Power ON printer
• At Power ON printer will bring CD tray into printer at proper position
Tray Release Button
Chassis Lock Knob
Note: Tray Release Button is located inside printer case
