Spectrum2 Printer Operator’s Guide

Document Revision: 100102

37


Printhead Replacement Procedure


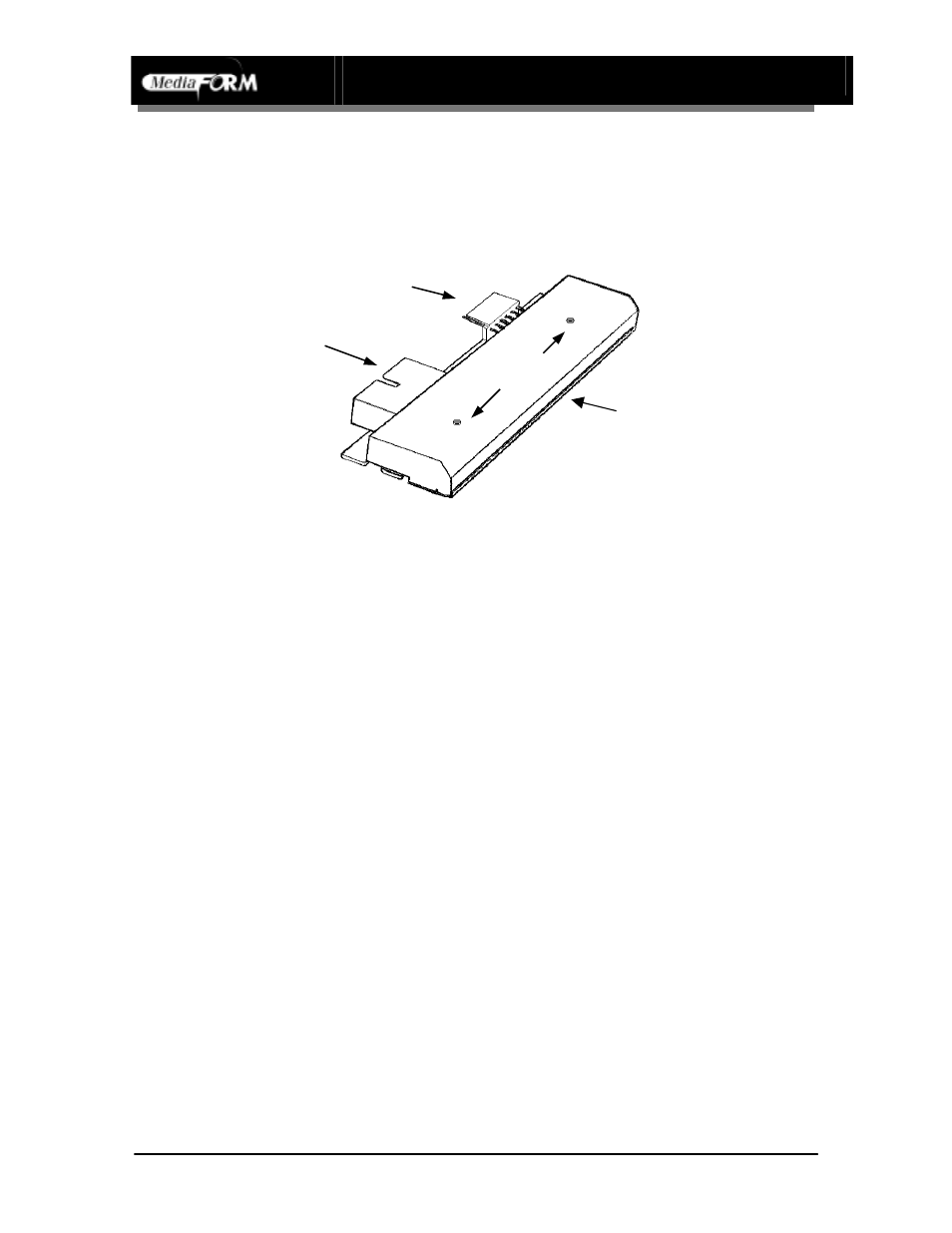

Figure 16:

The printhead's printing element is fragile, avoid touching the printing element

To replace printhead, you will need the following tools:

Phillips-head screwdriver


Important:

Always turn power off and unplug printer prior to removing print head.


Important:

The printhead is fragile. Avoid touching the printing element and always

store the printhead on a soft area such as a clean paper towel

Wait until all printing has finished, and remove any CD still on the Tray.

Power off and unplug printer

Remove the top cover, remove ribbon, and set aside.

Printhead is held by two Philips head screws

Look down top of chassis to locate Philips head screws

Use screw driver to loosen screw (note: screws are captive and will not fall out)

Open Chassis (pull chassis knob out, and lift chassis)

Printhead will hang from two cable connectors

Note the position and orientation of the connectors

Remove printhead from cable connectors, and place aside

Attach cable connectors (noting orientation) to new printhead

Printing element

Print Control

Power Connection

Securing Screw

Holes
