MF Digital Scribe SA (DPx-3102 & 3104)

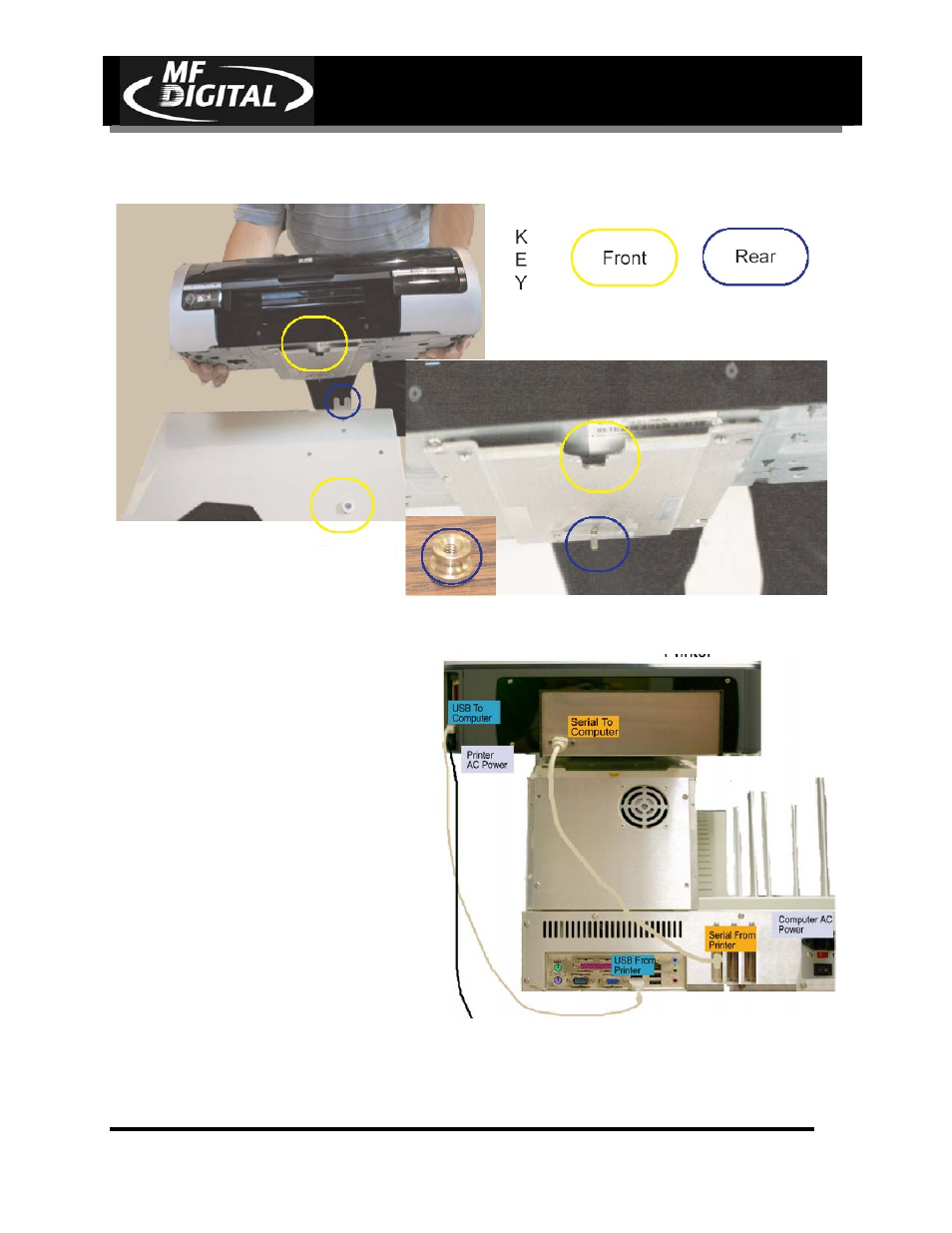

1. Locate the front of the mounting
plate as indicated by the yellow
circle to the right.
2. Slip the groove of the mounting plate
around the white plastic knob. See
picture above (yellow circle).
3. The threaded screw located at the
rear of the mounting plate will line
up with the “U”shaped housing
located on the rear of the MF Digital
SA Series Unit. See picture above
(blue circle).
4. After mounting the Printer, be sure to
push the printer all the way forward
then use the Thumbscrew to secure
the printer to the MF Digital SA
Series Unit.
5. To wire your printer to MF Digital
SA Series please follow the wiring
diagram to the right.
