1. Locate the front of the
mounting plate as indicated
by the yellow circle to the
right.
2. Slip the groove of the
mounting plate around the
white plastic knob. See
picture above (yellow
circle).
3. The threaded screw located
at the rear of the mounting
plate will line up with the
“U”shaped housing located
on the rear of the MF
Digital PC Series Unit. See
picture above (blue circle).
4. After mounting the Printer,
be sure to push the printer
all the way forward then use
the Thumbscrew to secure
the printer to the MF Digital
PC Series Unit.

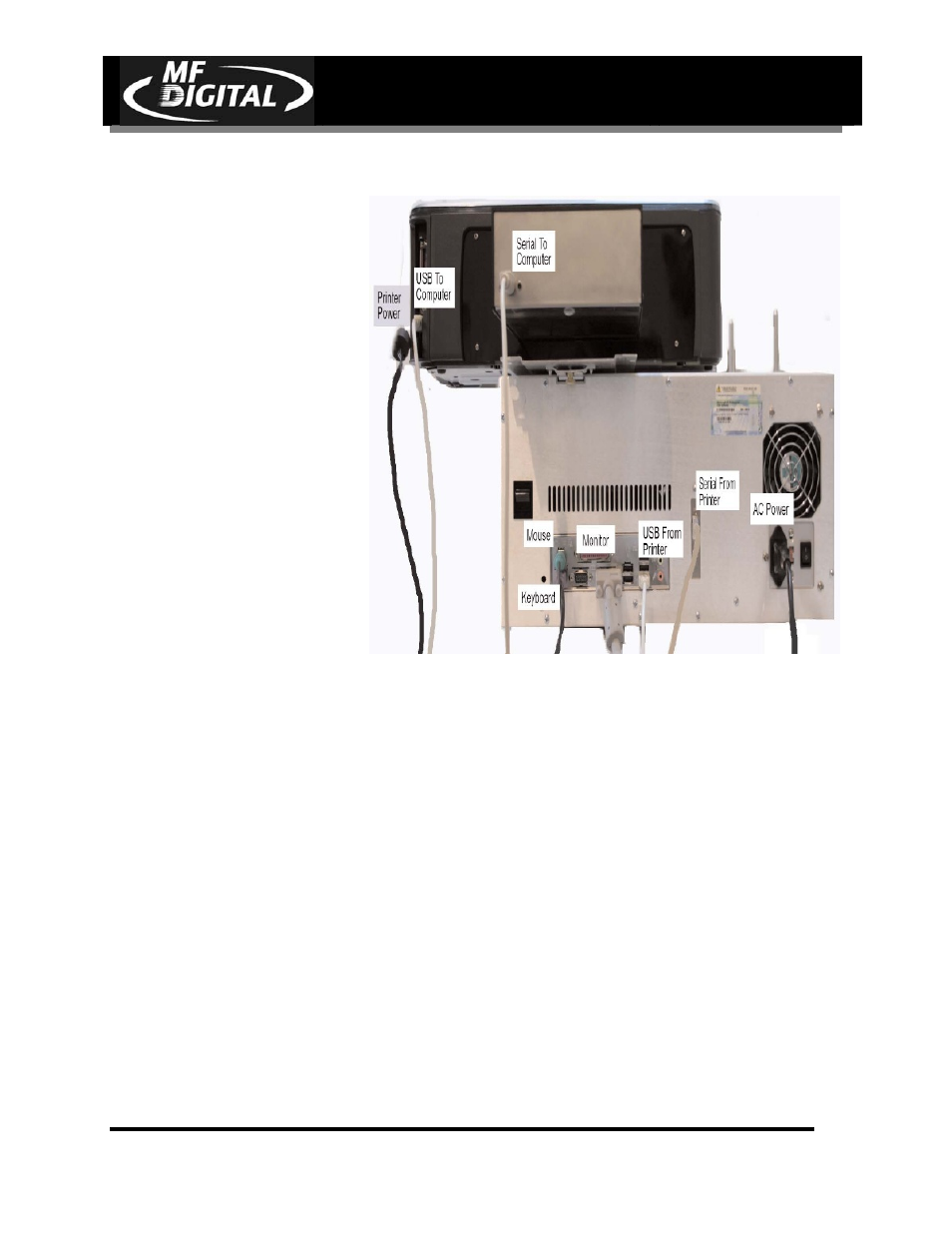

5. To wire your printer to MF
Digital PC Series please
follow the wiring diagram
to the right.
