V.22 bis Linux Softmodem for 73M1x22 MicroDAA User Guide

UG_1x22_043

8

Rev. 1.5

A/

Repeat Last Command

The A/ command causes the modem to re-execute the last command or command
sequence that was issued.
A/ and +++AT are the only commands that are neither preceded by AT nor followed by
.

B

Communication Standard Selection

 B0

ITU V22bis, V22 or V21 operation

B1

Bell 212A or Bell 103 operation (also V.22bis for 2400 bps operation)

B2

V23 – 75bps transmission, 1200bps reception – Master mode

B3

V23 – 1200bps transmission, 75bps reception – Slave mode

B4

Bell 202 – 1200bps reception

B5

Bell 202 – 1200bps transmission

B6

V23 4-Wire – 1200bps receive and transmit

B7

V23 4-Wire – 1200bps receive and transmit (same as B6)

B8

Bell 202 4-Wire – 1200bps receive and transmit

B9

Bell 202 4-Wire – 1200bps receive and transmit (same as B8)

B10

Selects 1200 bps V.23 Half duplex mode ( V23H). B10 and B11 are the same

B11

Selects 1200 bps V.23 Half duplex mode ( V23H). B10 and B11 are the same.

C

Data Carrier Detect Signal (DCD) Monitoring

C0

DCD always ON

C1

DCD ON in presence of qualified carrier signal

C2

DCD ON in presence of raw carrier signal

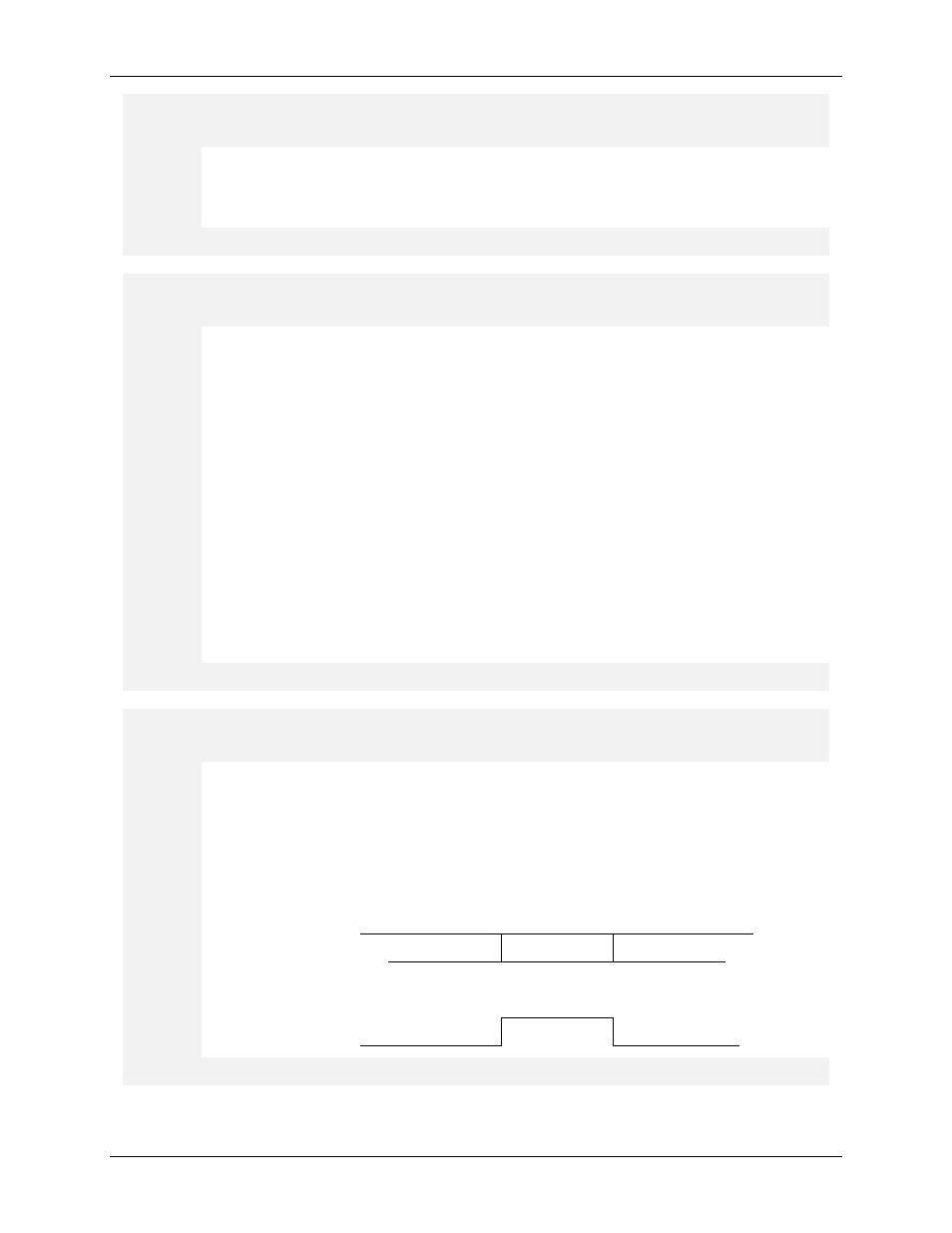

During V23 turnaround phases, the

DCD signal is OFF if C1 or C2 options selected

V23 Master or Slave

mode

V23 Slave or Master

mode

Turnaround phase

DCD

Active

Inactive
