ENGLISH
Easy Link PRO Series: Operating the DVR
DVR User’s Manual
57

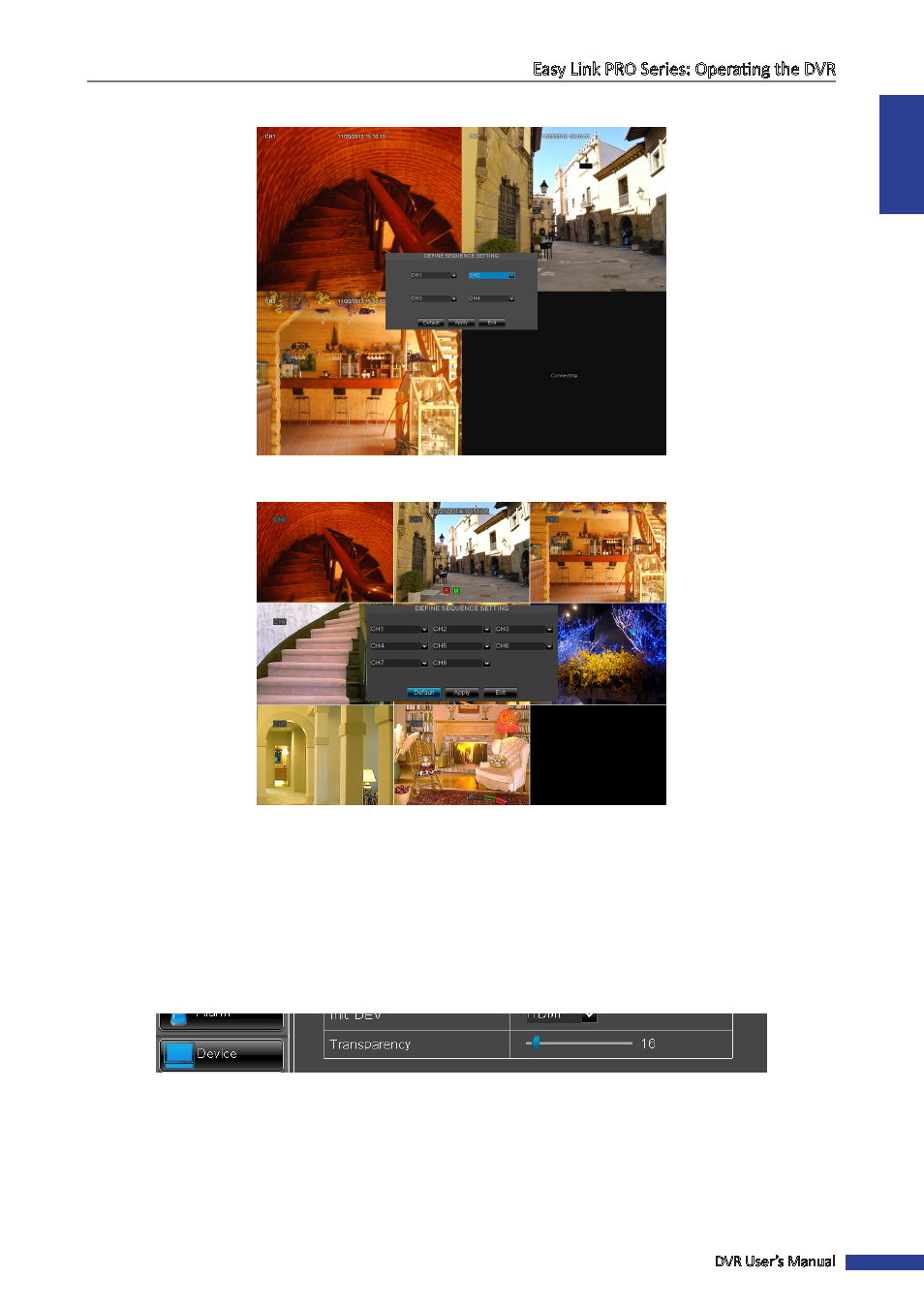

Quad Mode
Nine Mode
• VGA/HDMI Resolution: Select the highest resolution your monitor/TV supports. The available options the
following: 800 x 600, 1024 x 768, 1280 x 1024, 1440 x 900, and 1920 x 1080. The higher the resolution, the more
details you will see on your images. The DVR will restart after you change the resolution.
• Init. DEV: This is the default video output. The option is HDMI (HDMI/VGA monitor/TV) and VOUT (BNC monitor/
TV). To let the DVR to detect the video output, select AUTO.
• Transparency: Set how you want the settings menu to be displayed. To adjust the transparency, click and slide
the sliderbar. The number next to the sliderbar shows the level of transparency. Depending on the live views, the
higher the transparency, the more difficult it may be to read the menu items. Choose the optimal setting for your
circumstances.
