ENGLISH
Easy Link PRO Series: Quick Setup Guide
DVR User’s Manual
11

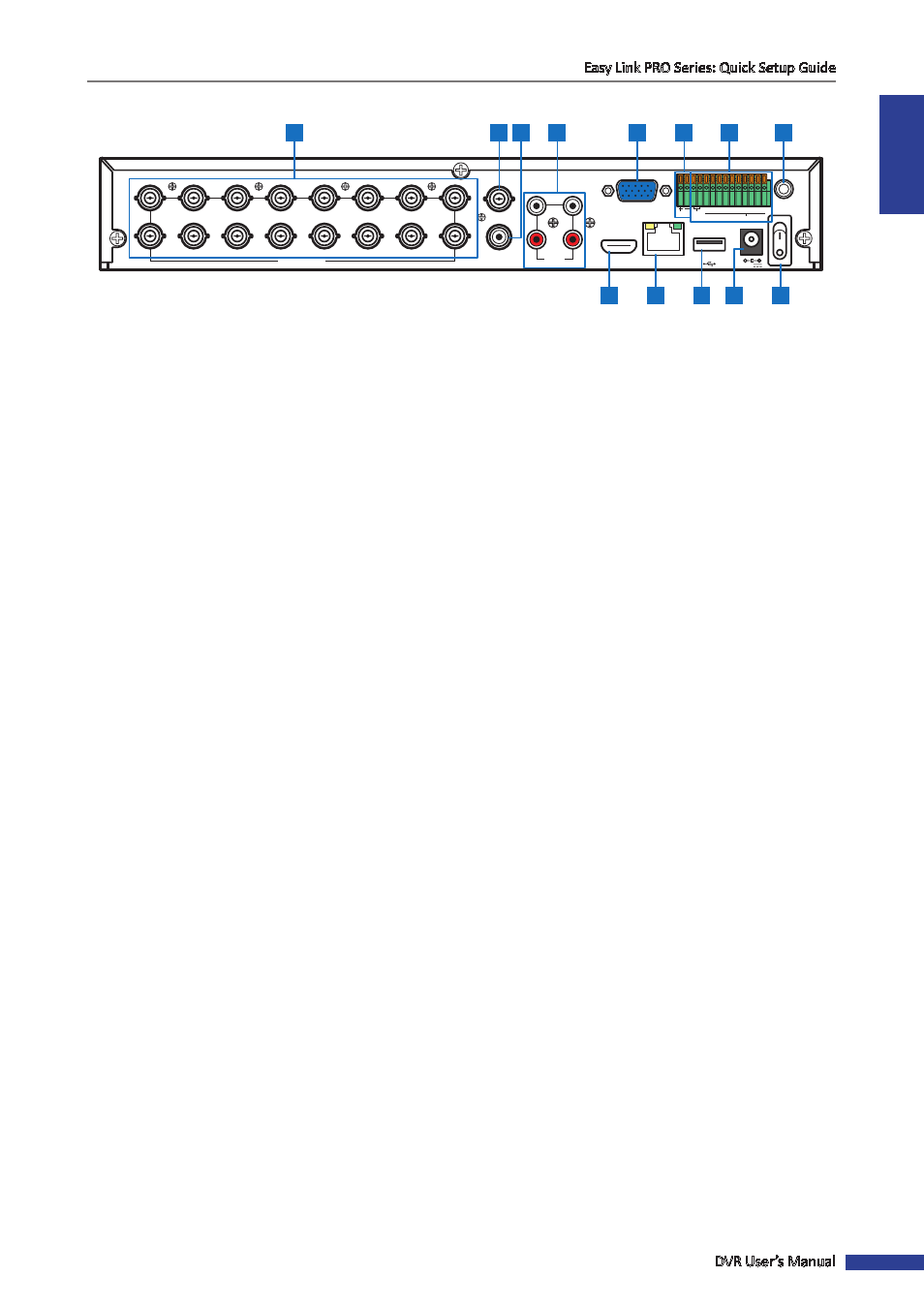

16-Channel DVR
RS-485 ALARM
SENSOR
G 1 2 3 4 G 5 6 7 8
HDMI
5
6
7
8
1
2
AUDIO
OUTPUT
1
2
3
4
13
14
15
16
9
10
11
12
VIDEO INPUT
3
4
AUDIO
INPUT
VIDEO OUTPUT
LAN
VGA
IR-EXT
12V
1 2 3 4 6
5 8 7 11 13
9 10 12
1) Video input: Connects to a maximum of 16 cameras (BNC).
2) Video output: Connects to a monitor/TV via BNC.
3) Audio output: Connects to an audio output device (for example, speaker) via RCA.
4) Audio input: Connects to a maximum of 4 microphones and/or audio-supported camera (not included) via RCA.
5) HDMI output: Connects to a monitor/TV via HDMI.
6) VGA output: Connects to a VGA monitor.
7) USB port: Connects to a USB mouse, flash disk, and other external storage drives.
8) LAN port: Connects to a router via RJ-45.
9) RS-485 port: Connects to a Speed dome camera via RS-485.
10) Alarm and Sensor I/O block: Connect to external Sensors and Alarm devices.
11) Power: Connects to the power adapter.
12) Infrared extender port: If the distance between the remote control and the DVR is too far, you need to install an
IR extender into the IR extender port (not supplied).
13) Power switch: Switch to turn the DVR on / off.
