Easy Link PRO Series: Quick Setup Guide
10
DVR User’s Manual

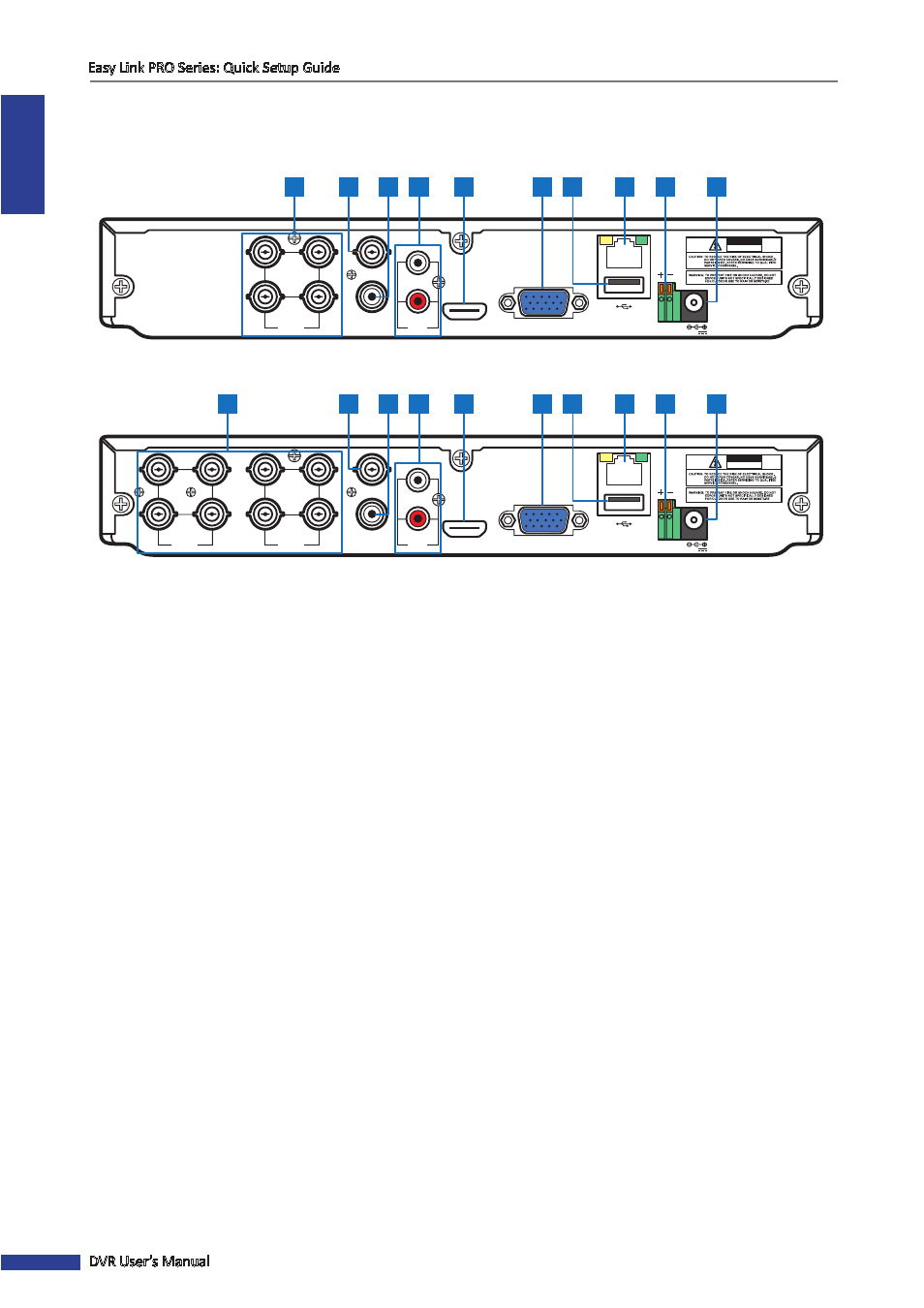

Rear Panel
4-Channel DVR
LAN
RS-485
VGA
12V
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
HDMI
1
2
AUDIO
OUTPUT
1
2
3
4
VIDEO
INPUT
AUDIO
INPUT
VIDEO
OUTPUT
1
6
7
9
10
8
5
3
2
4
8-Channel DVR
VIDEO
INPUT
LAN
RS-485
VGA
12V
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
HDMI
5
6
7
8
1
2
AUDIO
OUTPUT
1
2
3
4
VIDEO
INPUT
AUDIO
INPUT
VIDEO
OUTPUT
1
6
7
9
10
8
5
3
2
4
1) Video input:
• 4-Channel DVR: Connects to a maximum of 4 cameras (BNC).
• 8-Channel DVR: Connects to a maximum of 8 cameras (BNC).
2) Video output: Connects to a monitor/TV via BNC.
3) Audio output: Connects to an audio output device (for example, speaker) via RCA.
4) Audio input: Connects to a maximum of 2 microphones and/or audio-supported camera (not included) via RCA.
5) HDMI output: Connects to a monitor/TV via HDMI.
6) VGA output: Connects to a VGA monitor.
7) USB port: Connects to a USB mouse, flash disk, and other external storage drive.
8) LAN: Connects to a router via RJ-45.
9) RS-485: Connects to a Speed dome camera via RS-485.
10) Power: Connects to the power adapter.
