Isys ® G-Series Touchpanel Interface Crestron TPS-GA-TPI
To open the QM AUDIO OUTPUT SETUP menu, press the QM Output button on
the GENERAL AUDIO SETUP menu. The QM AUDIO OUTPUT SETUP menu
offers a series of buttons that adjust the Program Gain and Transmit QM ID.
The Restore Default Output Settings button returns all audio parameters on this
menu to their default settings. Program Gain buttons and Transmit QM ID Manual
and Auto buttons are provided to adjust QM audio output. After these parameters
have been set, select the Return button to return to the SETUP MENU.

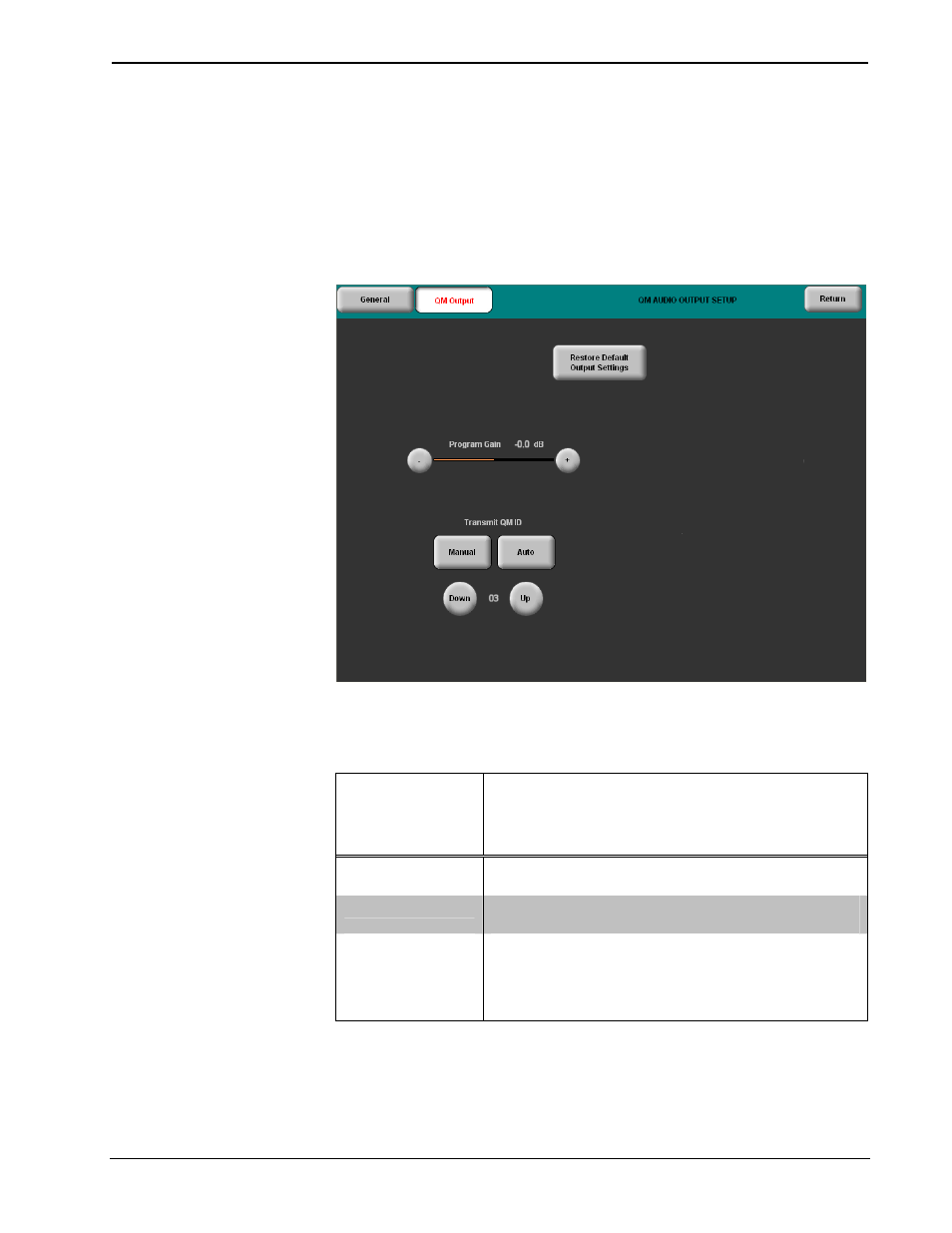

QM AUDIO OUTPUT SETUP MENU
Refer to the following table for additional QM AUDIO OUTPUT SETUP menu
details.
QM Audio Output Setup Details
QM AUDIO
OUTPUT SETUP
SCREEN
CONTROLS
DESCRIPTION
Restore Default
Output Settings Returns the settings on this menu to their factory
defaults.
Program Gain This controls the volume of the QM Program audio sent
to the QM output with the – and + buttons.
Transmit QM ID Allows transmission of touchpanel’s QM ID for use in QM
systems utilizing auto compensation*. Manual will
transmit a specific QM ID, adjustable with the Down and
Up
Buttons. Auto, the default setting, will transmit the
Cresnet ID as the QM ID.
* Auto compensation automatically recalls program gain settings when acting as an origination point.
