Crestron TPS-GA-TPI Isys ® G-Series Touchpanel Interface

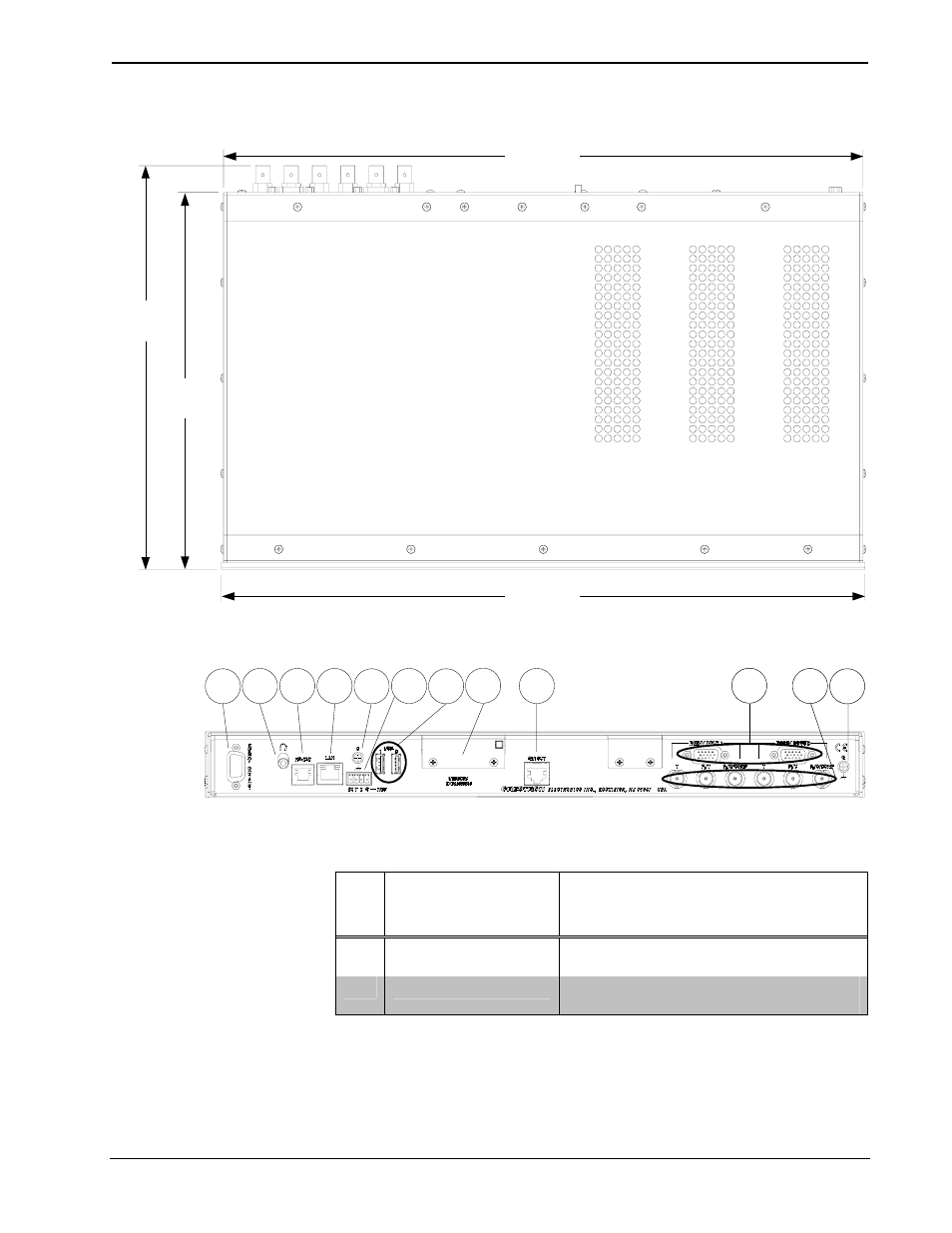

TPS-GA-TPI Overall Dimensions (Top)
16.92 in
(42.98 cm)
10.68 in
(27.13 cm)
9.97 in
(25.32 cm)
17.03 in
(43.25 cm)
TPS-GA-TPI Overall Dimensions (Rear)
9 8 3 4 5 6 7 13 12 11 10 7
Connectors, Controls & Indicators
# CONNECTORS 1 ,
CONTROLS &
INDICATORS
DESCRIPTION
1 PWR LED (1) Green LED, indicates DC power applied
to NET port.
2 RESET BUTTON (1) Recessed miniature pushbutton, reboots
the touchpanel interface.
(Continued on following page)
Operations Guide – DOC. 6609A Isys ® G-Series Touchpanel Interface: TPS-GA-TPI • 7
