Crestron TPS-GA-TPI Isys ® G-Series Touchpanel Interface

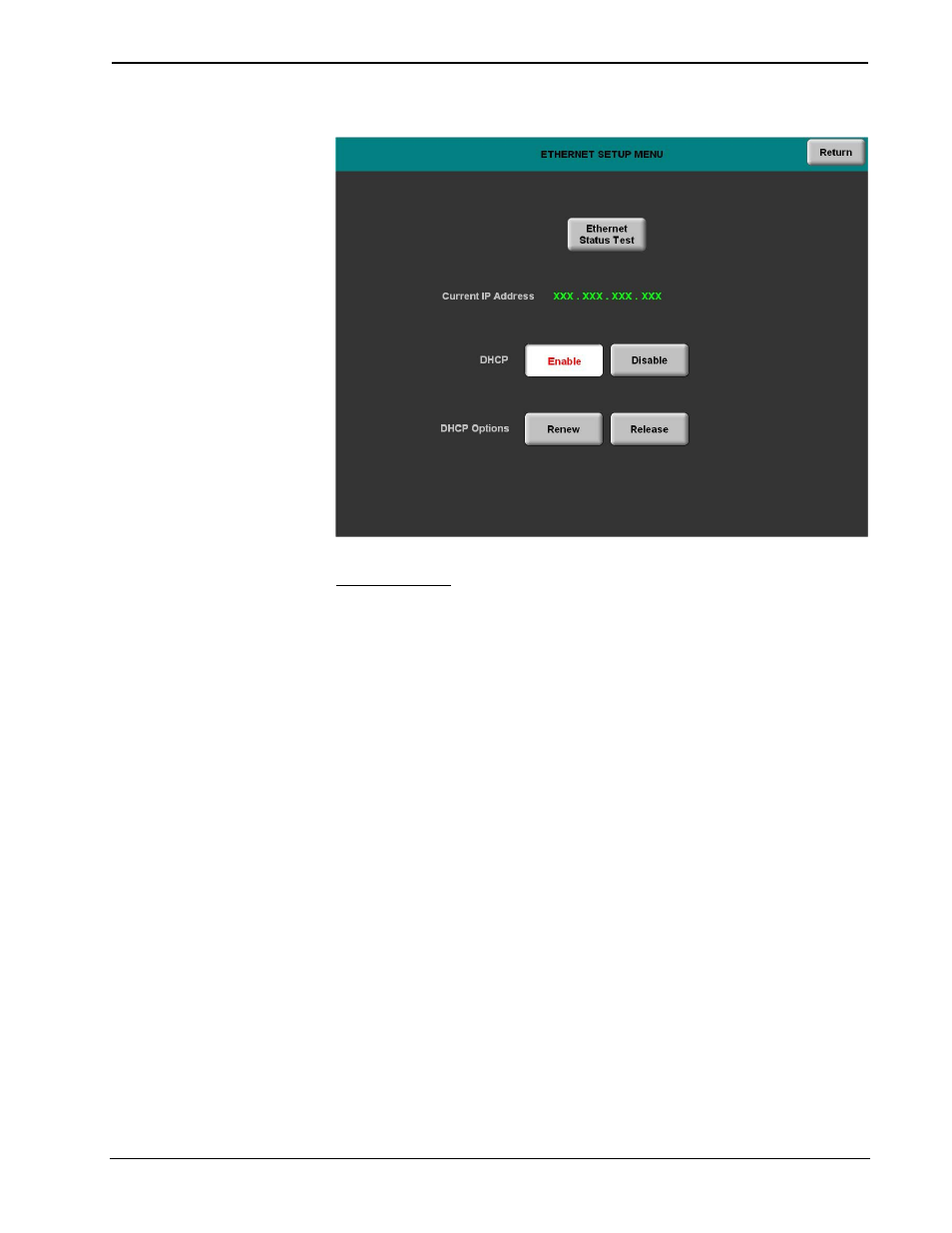

ETHERNET SETUP MENU (DHCP ENABLED)
RS-232 Menu
The TPS-GA-TPI interface allows for one of four RS-232 communication modes:
• Console (i.e., loading TPS-GA-TPI interface projects and firmware)
• Touch Output (communication of touch coordinates to an external device)
• Mouse Input (allows a mouse to control the interface)
• External Touch Input (allows another device to control the interface).
For convenience, the RS-232 MENU Console Port Mode also permits the selection
of the RS-232 communication options, Baud Rate, Data Bits, Stop Bits, Parity, RTS
On/Off and XON-XOFF On/Off.
Touch the communication option to select communication parameters and then select
Save and Return to save the RS-232 settings and return to the SETUP MENU.
Default settings: Console mode, Baud rate: 115200, data bits: 8 bit, stop bit: 1,
parity: none, RTS off and XON/XOFF off.
Operations Guide – DOC. 6609A Isys ® G-Series Touchpanel Interface: TPS-GA-TPI • 21
