1BChapter 2: Camera operation
26 TruVision IP Camera Configuration Manual
• IP Address Conflicted: Conflict in IP address setting.
• Illegal Login: Wrong user ID or password used to login to the cameras.

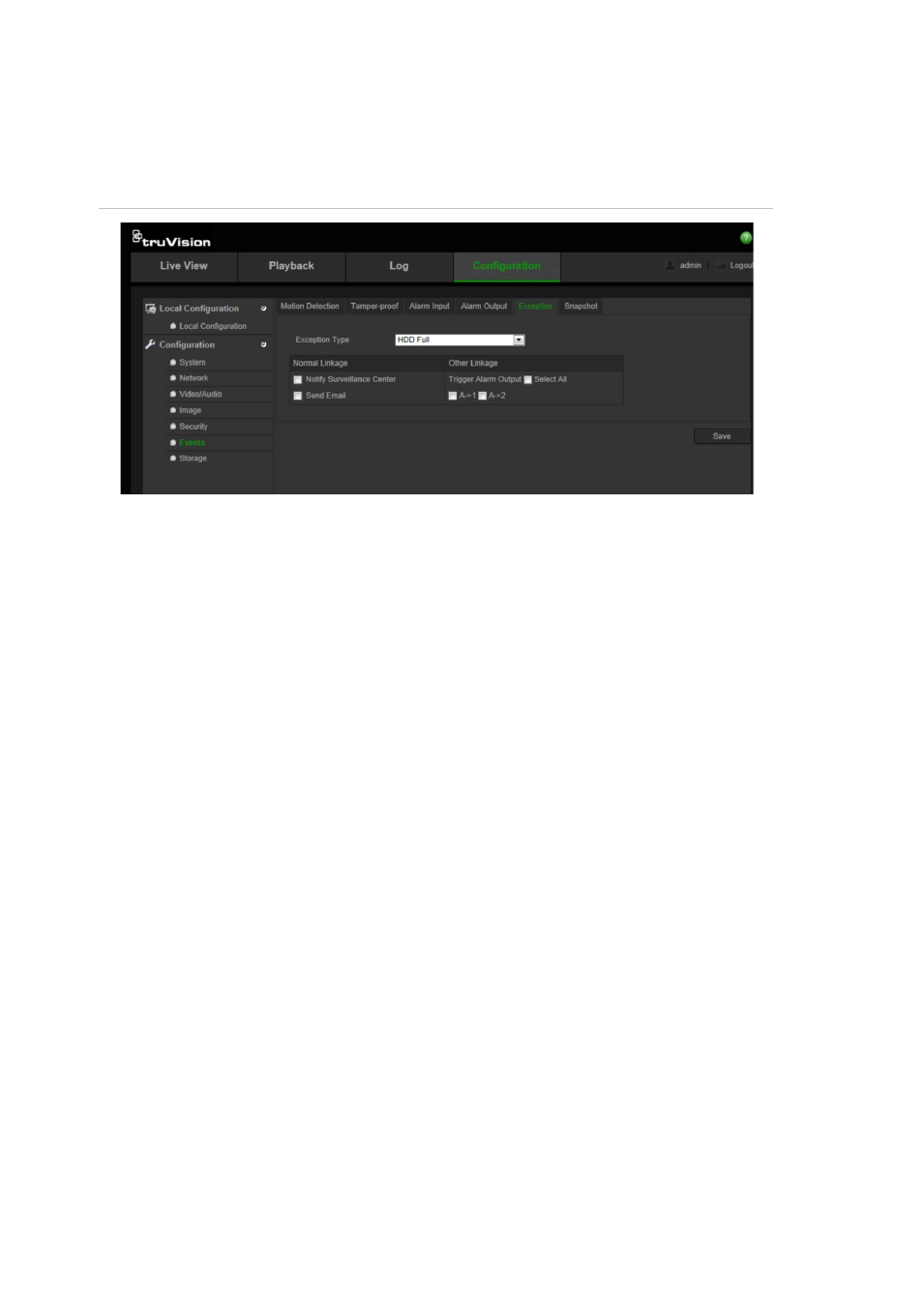

Figure 13: Exception menu
To define exception alarms:
1. In the Events folder, click the Exception subfolder to open its window.
2. Under Exception Type , select an exception type from the drop-down list.
3. Check the checkbox to select the linkage method.
4. Click Save to save changes.
Configuring alarm input and output
To define the external alarm input:
1. In the Events folder, click the Alarm Input subfolder to open its window.
2. Choose the Alarm Input No. and the Alarm Type . The alarm type can be NO
(Normally Open) and NC (Normally Closed). Enter a name for the alarm input.
3. Click Edit to set the arming schedule for the alarm input. See “To set up
motion detection” for more information.
4. Check the checkbox to select the linkage method.
5. Click Save to save changes.
To define alarm output:
1. In the Events folder, click the Alarm Output subfolder to open its window.
2. Select one alarm output channel from the Alarm Output drop-down list. You
can also set a name for the alarm output.
