: Camera configuration
TruVision IP Camera Configuration Manual 33

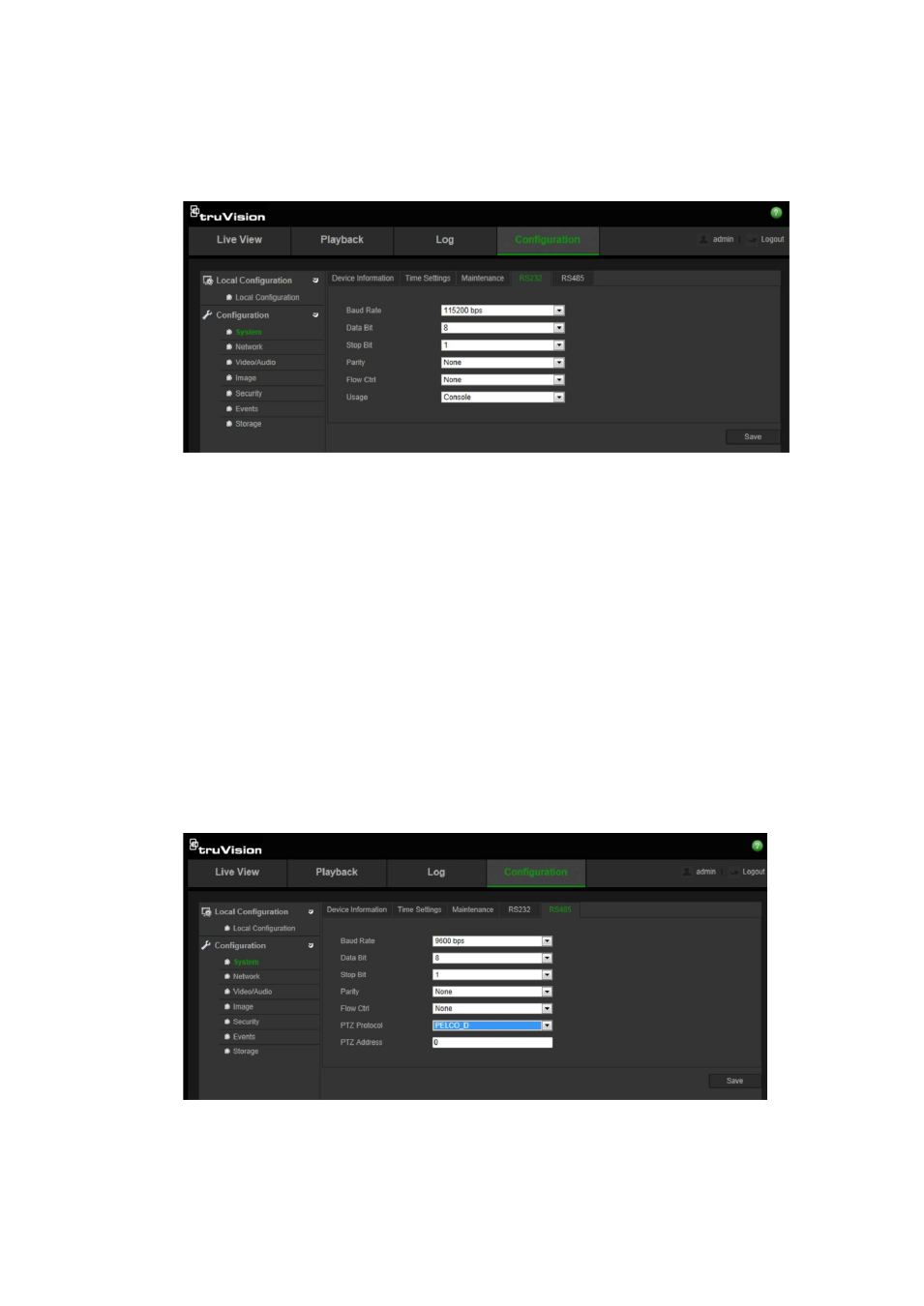

To set up the RS-232 settings:
1. In the System folder, click the RS232 tab to open its window.
2. Select the RS-232 port parameters.
Note: If you want to connect the camera using the RS-232 port, the RS-232
parameters must be the same as those configured here.
3. Click Save to save changes.
RS-485 settings
The RS-485 serial port is used to control the PTZ of the camera or connect to
light and wiper devices. Configuration of these parameters should be done
before you connect to any devices.
To set up RS-485 settings:
1. In the System folder, click the RS485 tab to open its window.
2. Select the RS-485 port parameters.
Note: The Baud Rate, PTZ Protocol, and PTZ Address parameters should be
exactly the same as the PTZ camera parameters.
3. Click Save to save changes.
