Simon XT Installation Manual 29

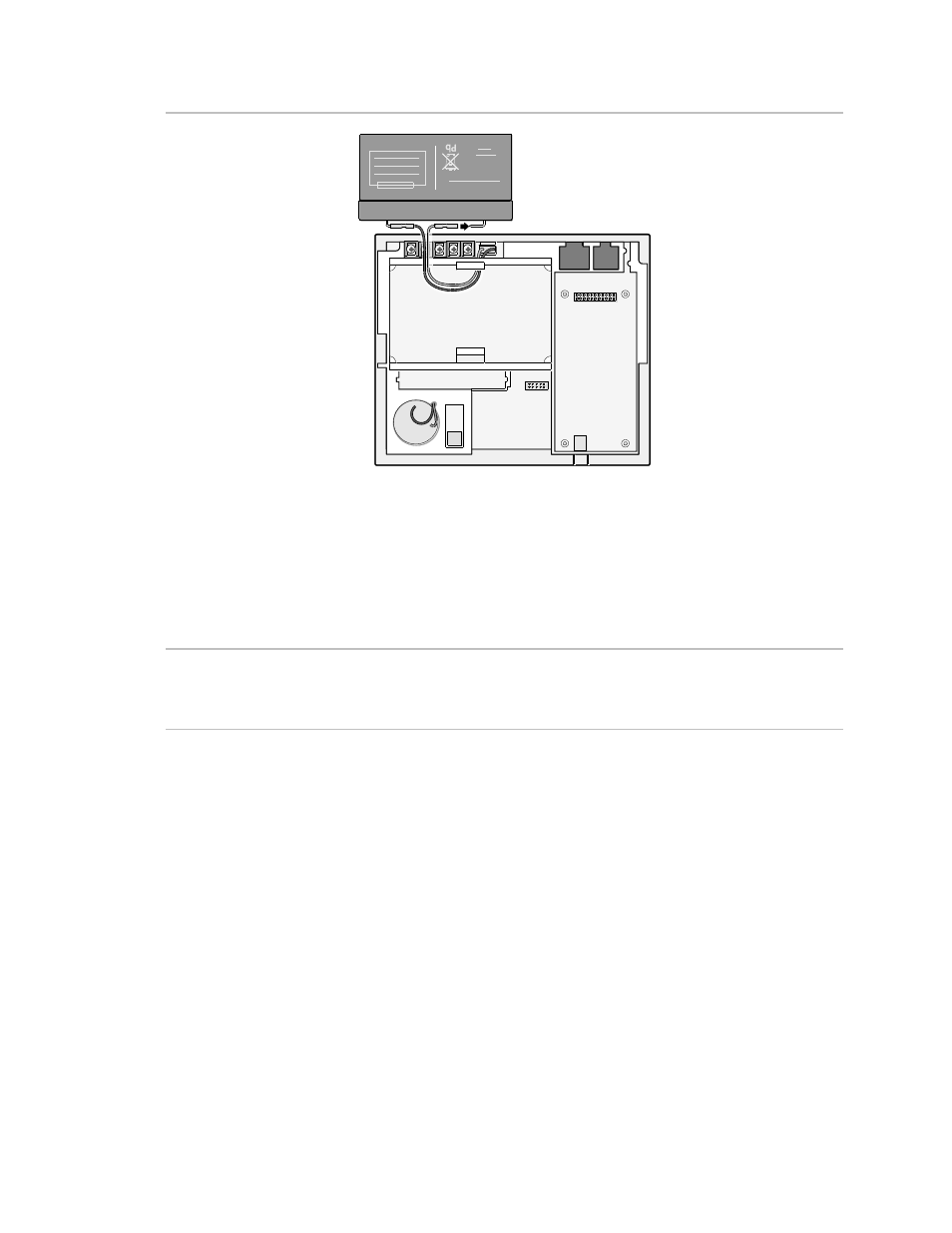

Figure 11: Installing the panel backup battery
Applying AC power
Make sure the outlet is not controlled by a switch or that it is not part of a ground
fault circuit interrupt (GFCI).
1. Remove the center screw from the outlet cover plate and hold the cover plate
in place.
WARNING: Use extreme caution when securing the transformer to a metal outlet
cover. You could receive a serious shock if a metal outlet cover drops down onto
the prongs of the plug.
2. Plug the transformer into the lower receptacle of the outlet so that the hole in
the transformer tab lines up with the outlet cover screw hole.
3. Insert the cover plate screw through the transformer tab and the outlet cover
plate. Tighten the screw.
Installing X10 modules
To install lamp and appliance modules, do the following:
1. Set the unit code dial to a unit number between 1 and 8.
2. Set the housecode for the installation.
3. Plug the module into a wall outlet.
4. Plug the lamp/appliance into the module.
