Speed Dome Camera Instruction Manual
12/47

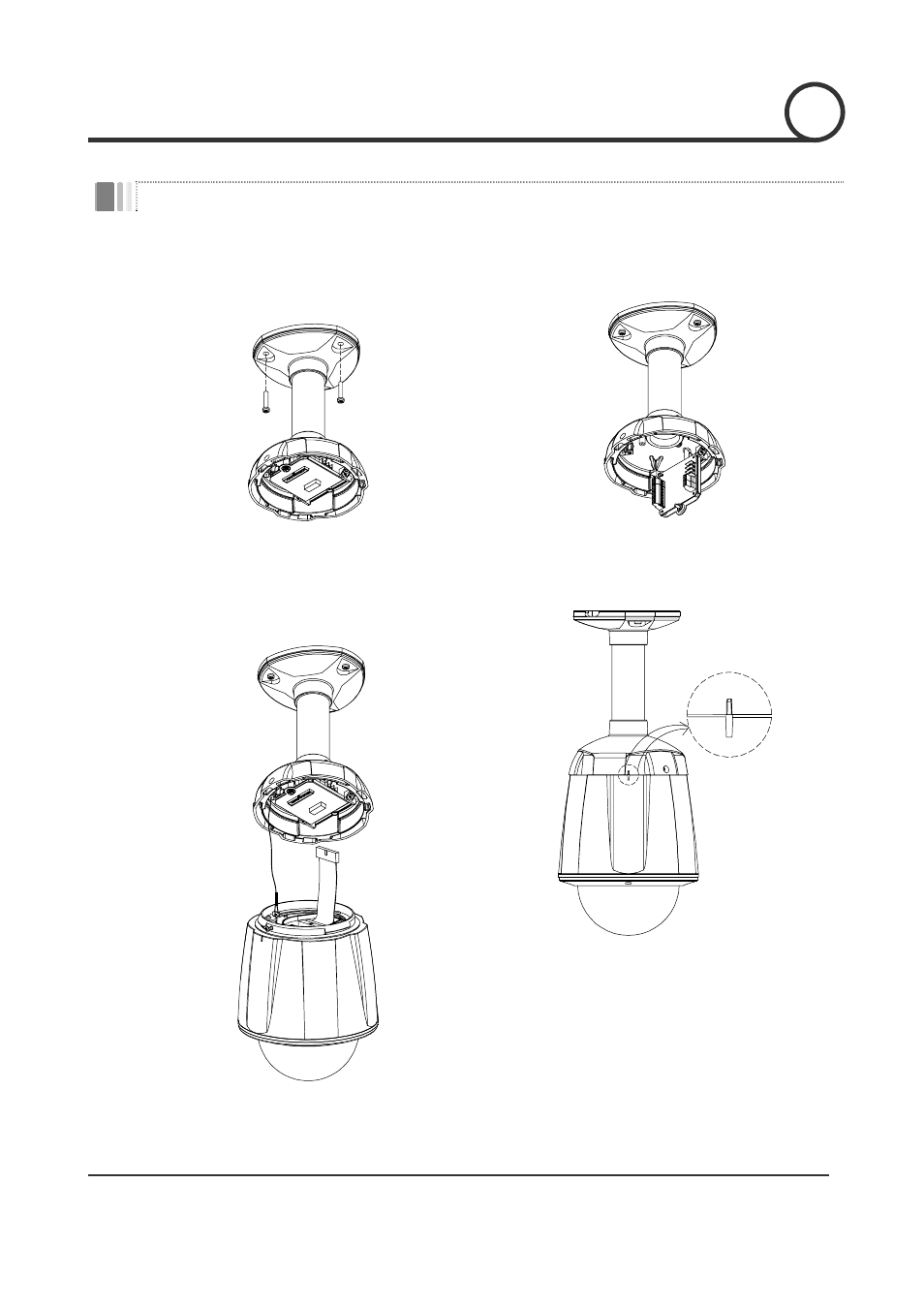

Installation using Ceiling Mount Bracket
①
To pass cables to upside of ceiling, please make a
hole with 50~60mm diameter on the ceiling panel
and attach the Ceiling mount bracket on it.
②
Wire cables to terminal blocks on the PCB in
Ceiling Mount Bracket.
③
Hook up “Drop Prevention Spring” on main body
to prevent camera from unexpected drop and
connect Main Body Cable to Main Body
Connector in Ceiling Mount Bracket.
④
Line up the mold lines and assemble main body
to Ceiling Mount Bracket.
INSTALLATION
2
