Installation – IC Realtime 22X Optical / 10X Digital Zoom High Res Day/Night Speed Dome-24VAC (ICR2200DN) User Manual
Page 11
Speed Dome Camera Instruction Manual
11/47

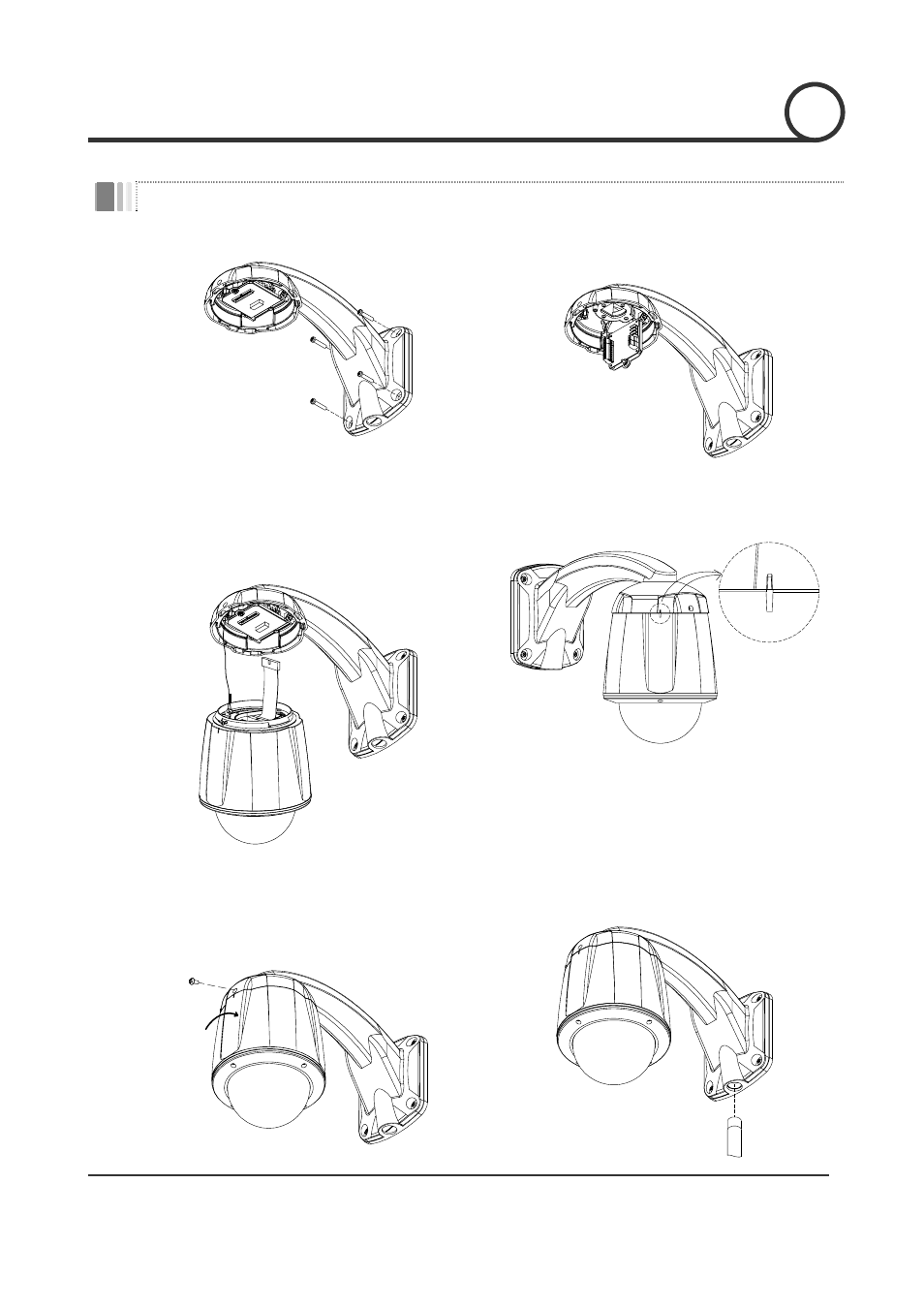

Installation using Wall Mount Bracket
①
Install Wall Mount Bracket on wall.
②
Wire cables to terminal blocks on the PCB in Wall
Mount Bracket.
③
Hook up “Drop Prevention Spring” on main body
to prevent camera from unexpected drop and
connect Main Body Cable to Main Body
Connector in Wall Mount Bracket.
④
Line up the mold lines and assemble main body
to Wall Mount Bracket.
⑤
Turn main body on its axis in CW(Clockwise)
direction and, after assembling them, screw main
body to Wall Mount Bracket to protect them from
separation by vibration or others.
⑥
In case of using pipe, use the hole located on
lower side of Wall Mount Bracket to fix pipe.
INSTALLATION
2
