Great Planes 38% Extra 330S ARF - GPMA1290 User Manual
Page 26
26

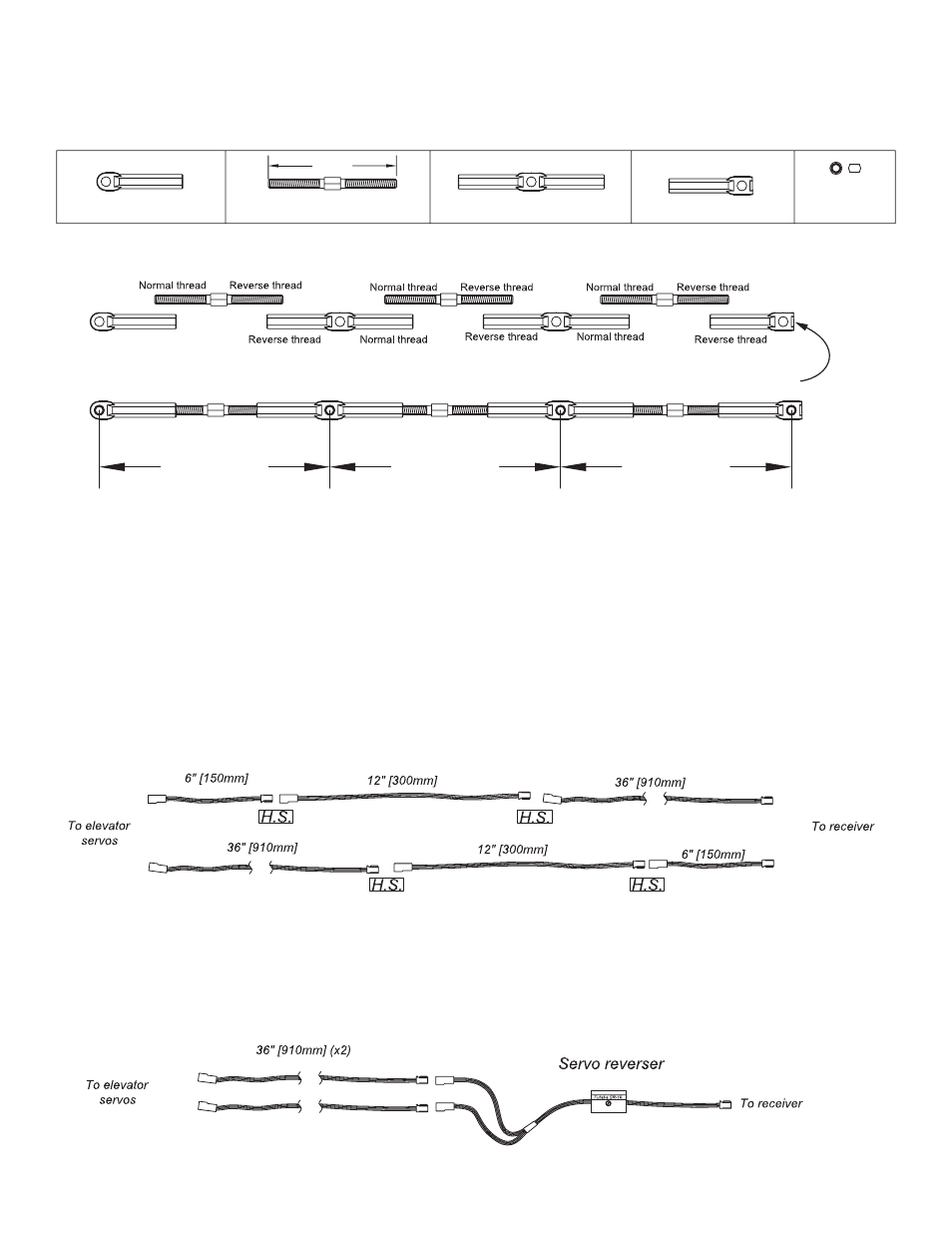

RUDDER PUSHROD ASSEMBLY
ELEVATOR SERVO EXTENSIONS
90mm
90mm
90mm
Make the servo extensions this way if connecting
the elevator servos to separate channels.
Make the servo extension this way if connecting
the elevator servos to the same channel.
Regular Ball Link (x2)
Dual-Ended Ball Link (x6)
Brass Ball
Link Ball (x8)
Cut-Off Ball Link (x2)
Cut-Off Ball Link
(Reverse Thread)
Turnbuckle Pushrod (x6)
55mm
