Overview
® DS-EQ230 L IN R IN L OUT R OUT L COMP R COMP

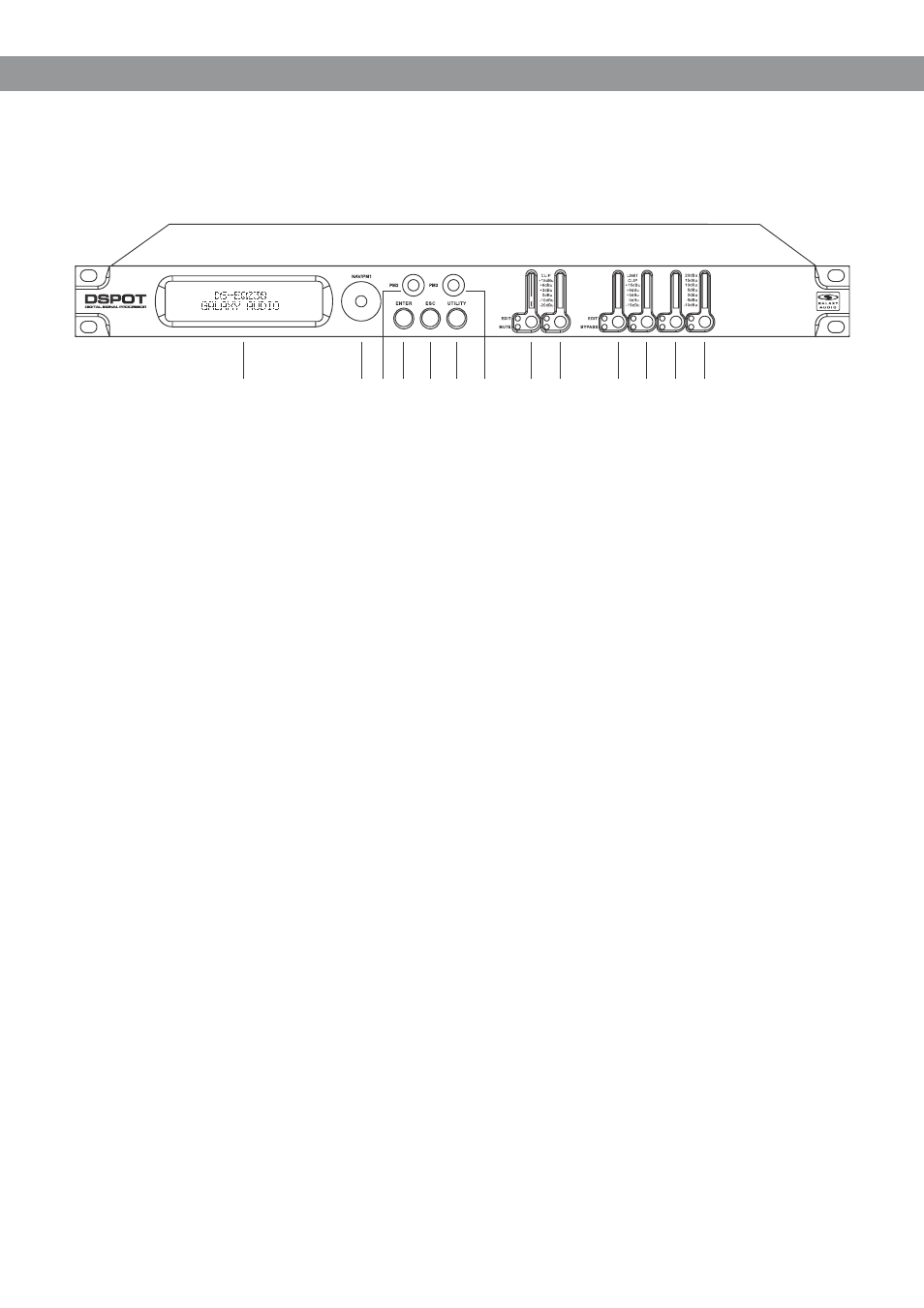

Described below are the functions of the front panel control buttons and encoders for the
DS-EQ230.
1 2 3 4 5 6 7 8 9 10 11 12 13
1 - LCD Display
2 - Navigation/Parameter 1 Key
3 - Parameter 2 Key
4 - Enter Key
5 - Escape Key
6 - Utility Key
7 - Parameter 3 Key
8 - Left Input Edit/Mute Key
9 - Right Input Edit/Mute Key
10 - Left Output Edit/Bypass Key
11 - Right Output Edit/Bypass Key
12 - Left Comp Edit/Bypass Key
13 - Right Comp Edit/Bypass Key
