TRANSMITTER DISPLAYS & BUTTONS
When you first turn on your transmitter, the screen shown below appears on the LCD
display. Before flying, or even starting the engine, BE SURE that the model number appearing
in the lower right of the display matches the model that you are about to fly! If you don’t, servos
may be reversed, and travels and trims will be wrong, leading to an immediate crash. (If you
have trouble remembering which model memory to use, write them on a small piece of tape
affixed to the front of the transmitter.)

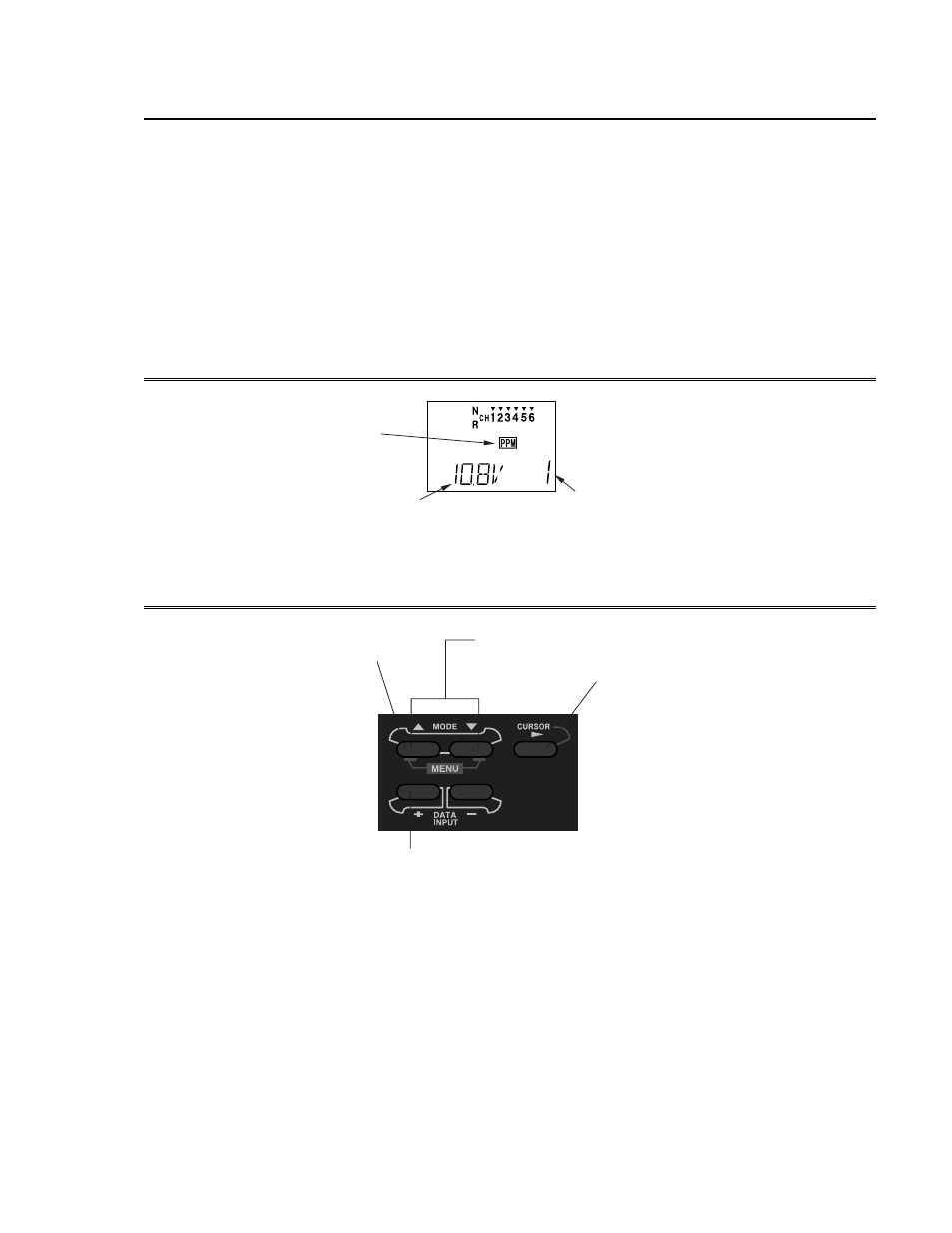

Startup Screen (appears when system is first turned on)
Modulation
indicator
PPM shown
Battery voltage
(Alarm goes off at 8.5V)
Current model memory
Model 1 shown
Edit keys
MODE keys - use to
select desired function
while programming
Press these two
keys to enter the
programming
menu
CURSOR key - use to
step through menu and
select item to be set or
changed in the screen
DATA INPUT keys - use
these to input numbers or
settings
– 11 –
