Functions

(Initial screen)

Use the

button to select the
menu screen.

Press the

button.

Use the

button to select the
function.

Press the

button.

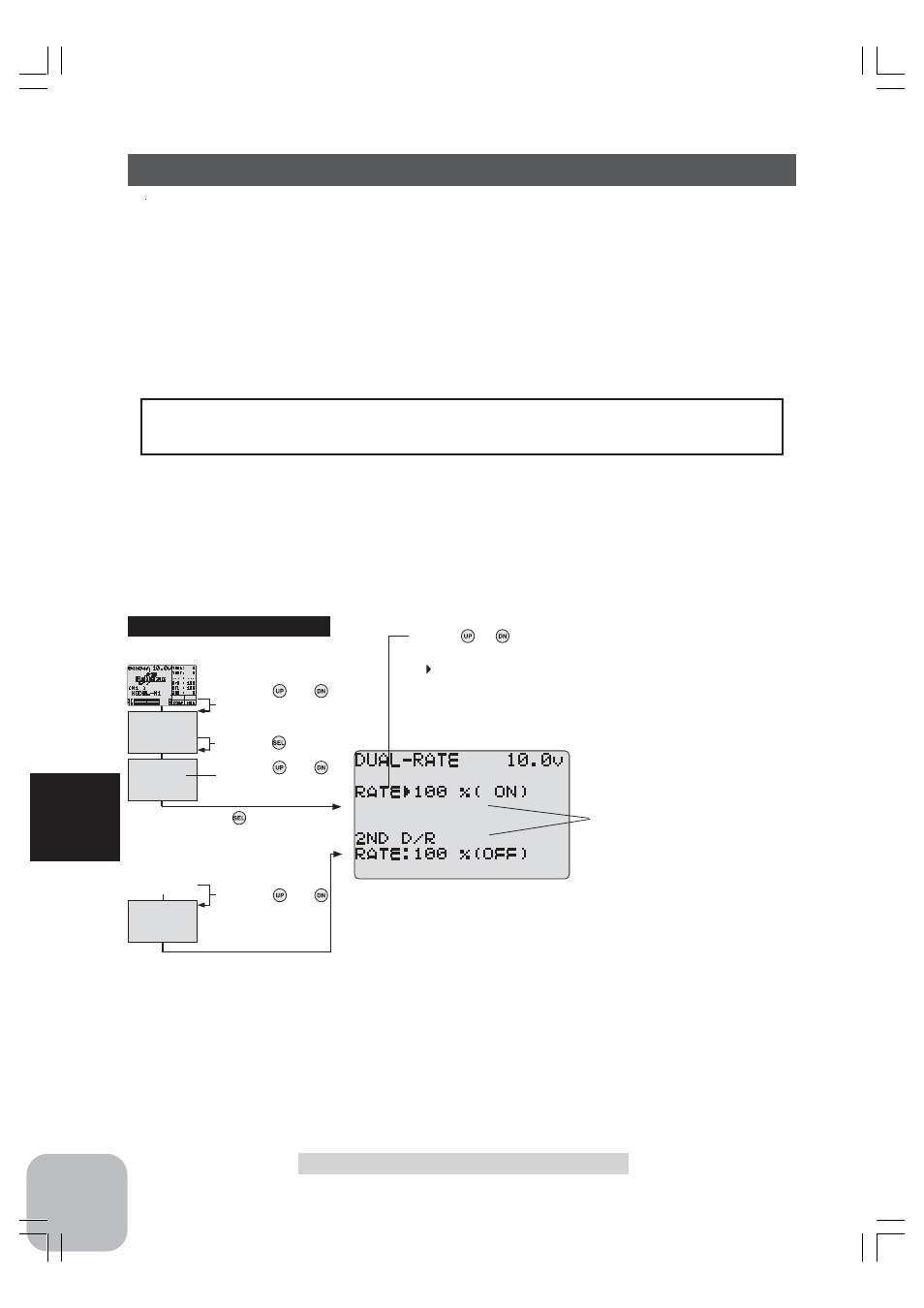

Calling the setup screen

* When the direct call button is set,
the setup screen is also called by the
following method:

MENU SELECT

DIRECT SEL

Press the

and

button simulataneously.

Press the button set
at this function.

* Calling from menu screen

Use the

button to

select the setup item.

blinks at the current

setup item.

(Initial screen)

Dual rate/ST-D/R (Steering system)

Dual rate
When the steering angle is too small at under steering at corners while running, adjust
at the "+" side and when the steering angle is too large at over steering , adjust at the
"-" side. The setup here is linked with transmitter grip dial BT1. Adjustments can be
made at this screen even if BT2 is assigned to another function.
Second dual rate
Use when facing a fence and escape is difficult at a crash and similar cases.

Switch setup
When using second dual rate, the function select switch function must be used to
preselect the switching switch. (See page 82)

Operation
- The steering servo left and right steering angles are adjusted simultaneously.
- Dual rate and second dual rate steering angle switching is performed by switch.

*ON/OFF display. Linked with 2nd
dual rate switch.

Setup Item
RATE

: Rate setting (D/R)

2ND D/R
RATE : Rate setting (2nd D/R)

Adjustment buttons
- Use the (+) and (-) buttons to make
adjustments.
- Press the (+) and (-) buttons simul-
taneously (approx. 1 sec) to return to
the initial screen.
