15

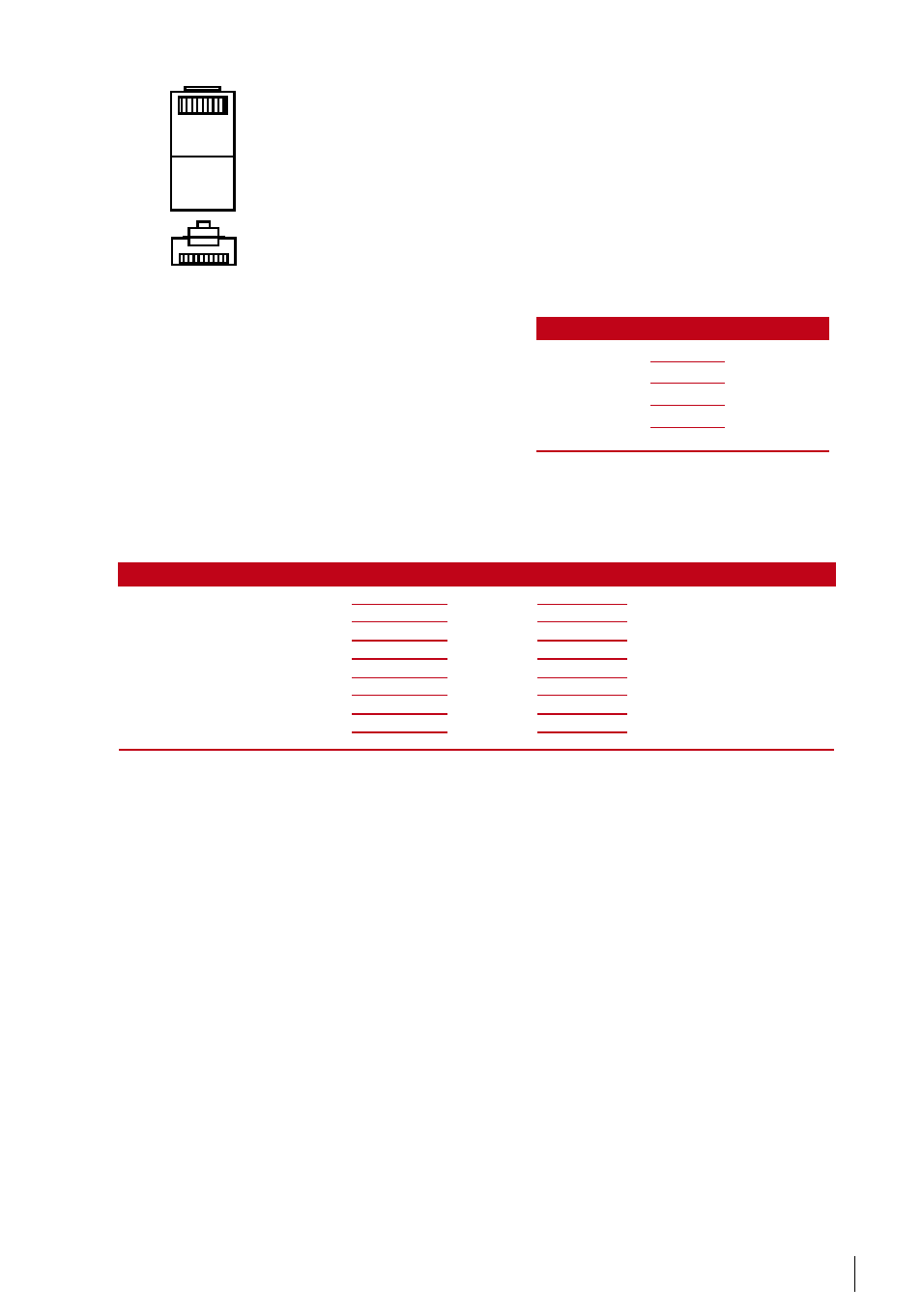

1 8
TOP
FRONT
1 8
CONNECTOr pIN CABlE COlOr CONNECTOr
TX+ 1
•
White/Orange
•
1 TX+
TX- 2
•
Orange
•
2 TX-
RX+
•
White/Green
•
RX+
4
•
Blue
•
4
5
•
White/Blue
•
5
RX- 6
•
Green
•
6 RX-
7
•
White/Brown
•
7
8
•
Brown
•
8
JOINT 1 pIN JOINT 2 pIN
TX+ 1
• •
RX+
TX- 2
• •
6 RX-
RX+
• •
1 TX+
RX- 6
• •
2 TX-
UsB pOrT
Linking with USB flash disk for remote data transfer.
TCp/Ip pOrT
Connect with CAT 5 cable for LAN connection, one end to this port
and another end to the computer’s TCP/IP Port.
TCP/IP for Single Connection –
Linking the termi-
nal to a single computer using TCP/IP requires Ethernet
10/100Base-T Crossover Cable. The cable can be used
to cascade hubs or to connect Ethernet stations back-
to-back without a hub. It works with both 10Base-T and
100Base-TX.
TCP/IP for Network Connection –
Linking the terminals to multiple computers using TCP/IP re-
quires Ethernet 10/100Base-T Straight Thru Cable or “whips”. The cable works with both 10Base-T and
100Base-TX, connecting a network interface card to a hub or network outlet.
pOwEr sUpply pOrT
Insert the Power Adapter point to this port for power.
Security
Create password for a specific terminal here. Press Menu > Comm. > Password > Insert
Password> OK to Save. The security password known as COMM Key is intended for extra
security. To connect the terminal with the software, the COMM key inserted in the soft-
ware must be the same as the one inserted in the terminal or else connection cannot be
established even though the activation key and product key are correctly inserted.
Installation and Setup of TCMS V2
Install TCMS V2 in a PC that fulfills the softwares’ minimum requirements. Refer to
http://www.fingertec.com/customer/download/postsales/SUM-TCMSV2-E.pdf for the
TCMS V2 user guide online. Setup Wizard will require you to do online activation before
any connection is established between TCMS V2 and the terminal(s).
