14
4 feet / 1.2 meter
(recommended)
s u p p o r t @ f i n g e r t e c . c o m
TA500
1 2 ABC 3 DEF ESC
7 PQRS
5 JKL 4 GHI
8 TUV 9 WXYZ
6 MNO
0 / M/OK
POWER PORT
TCP/IP PORT
........
4 • INSTALLATIONS & COMMUNICATION

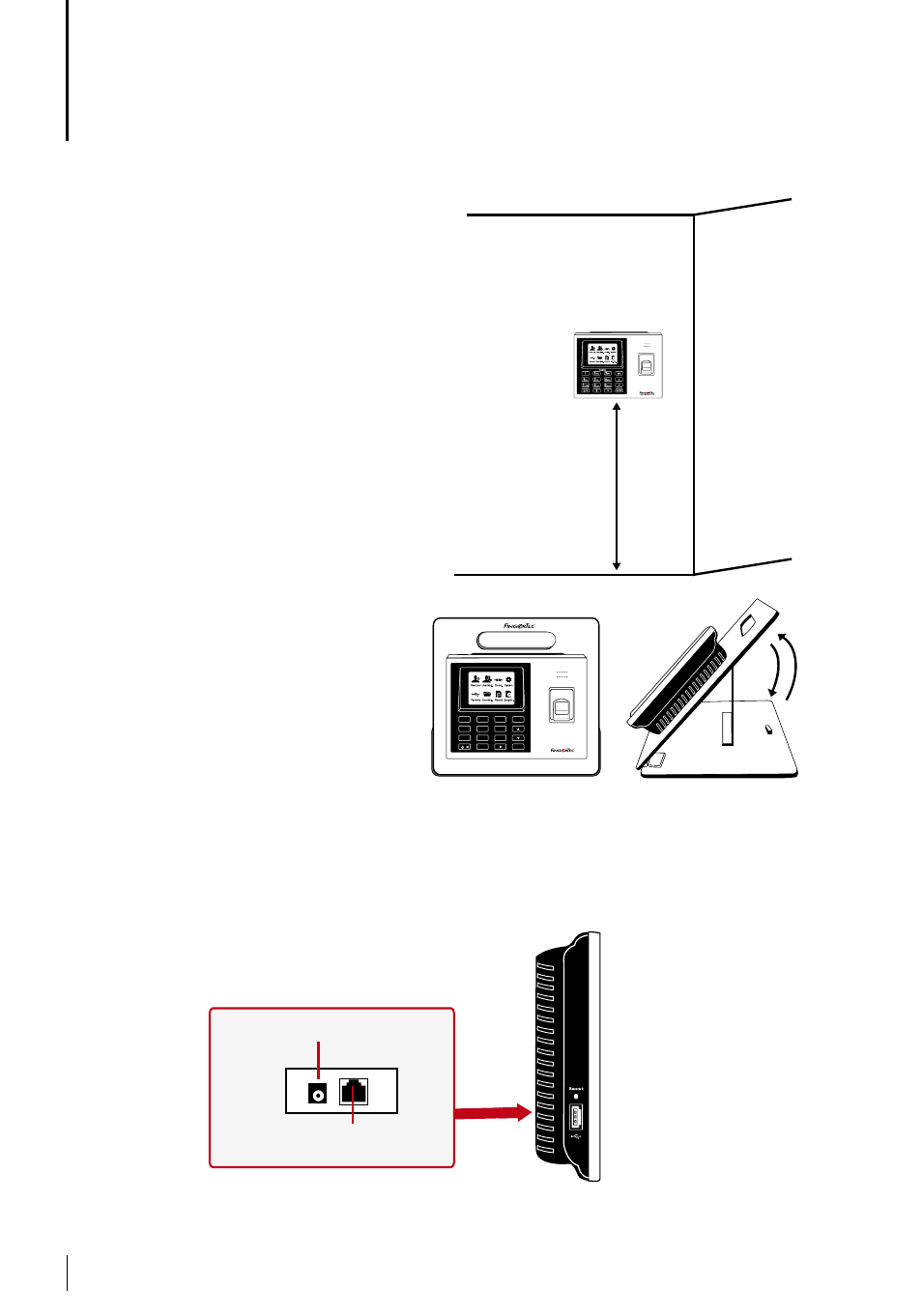

Installations
FingerTec terminals offer several con-
nections for power and communica-
tions. Installations of FingerTec time
attendance terminals are simple.
MOUNT ON wAll
After measuring the height accord-
ingly and make relevant marking on
the wall, drill the screws into the wall
to secure the back plate.
FlExI-KIT
FingerTec offers flexi-kit for all its time
attendance models. Attach the termi-
nal on the flexi- kit for convenience and
cosmetic purposes. View flexi-kit at:
accessory.fingertec.com
Communications
Connection points for power and communication are available on top of the terminals.
Refer to the following diagrams for the terminals you require.
