46

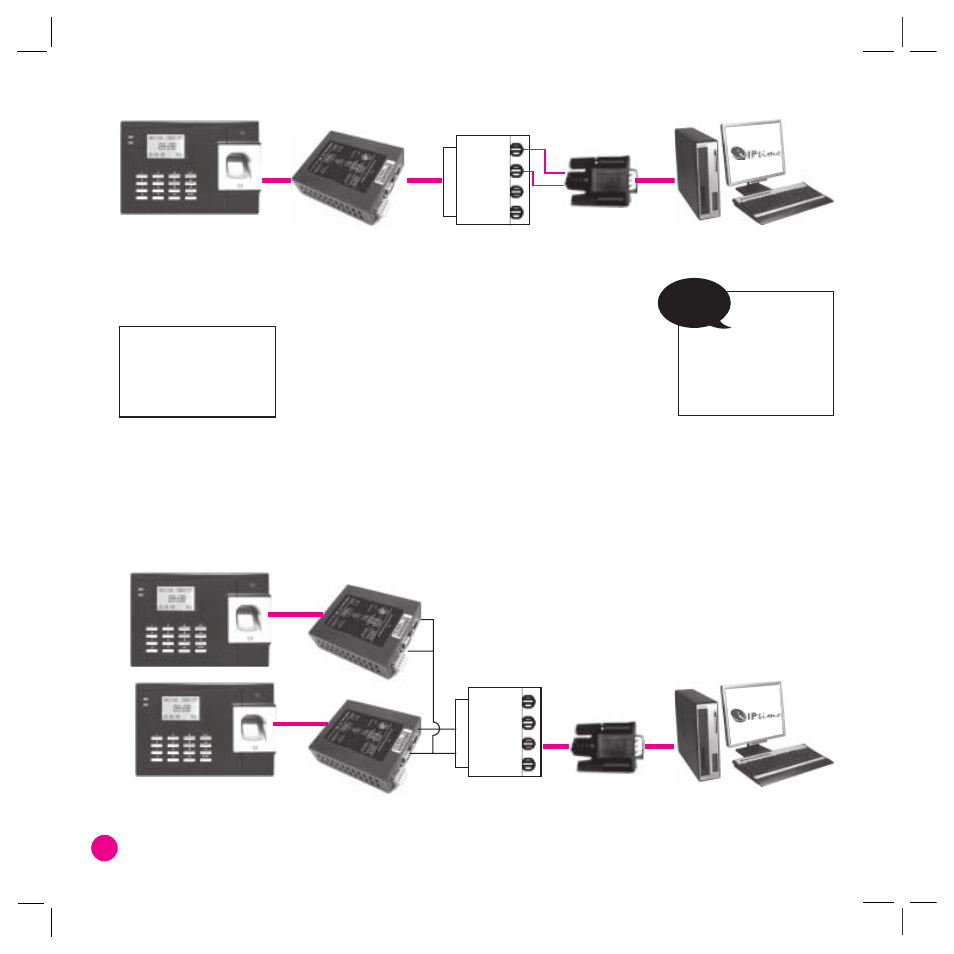

RX+

RX-

Q2 Reader C2 Controller

RS232/RS485

RS232 cable

PC

Data

converter

Note

When the RS485

function is enabled,

the Ethernet will be

disabled.

Comm Opt

u

4

RS232 Yes

4RS485 Yes

RX+

RX-

Q2 Reader C2 Controller

RS232/RS485

RS232 cable

PC

Data

converter

RS485 Network Connection

1. Setup of RS485

Access Menu, select “Options” > “Comm. Opt”

> “RS485”, select “Yes” to enable RS485

function.

2. Turn off the reader.

3. Plug the RS485 cable extender to the RS232/485 port on the Power Controller,

and another end of the cable to the RS232/485 network.

4. Connect computer to the RS485 network with the RS232/485 converter.
5. Turn the power on.
