42
Lock Control •
This port allows you to con-
nect to an optional electro-
magnetic door (EM lock)
and door push button.
• TCP/IP Port
A straight RJ45 cable is used to connect
to a network switch/hub. A crossover
RJ45 cable is used instead to connect
directly to a PC network port.
• Serial Port
RS232 is a serial communication cable used to connect
from this port at one end to a serial port of a PC at an-
other end. RS485 cable extender should be connected to
this port and the other end should connect to an optional
RS232/RS485 Data Converter before it can be connect-
ed to the serial port of a PC.
NO => door lock +
COM => Door lock-
NC => N/A Power supply
PUSH => push button 220 V
GND => push button
Bell and Alarm
RS232/485 connector
TCP/IP To reader

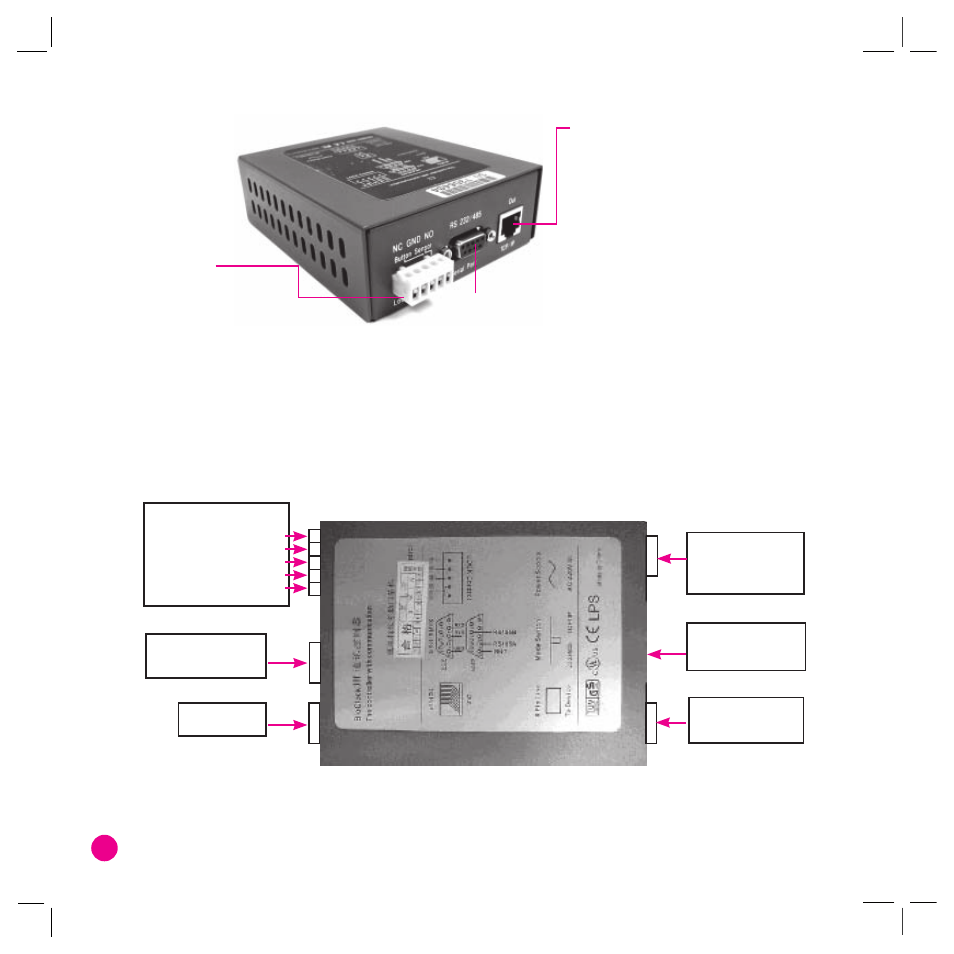

The diagram of an C2 Controller and its points of connections.
