43
Comm Opt u
4Ethernet Yes
RS232
No
RS485 No
IP Addr
192. 168. 1.201
ESC OK
Note

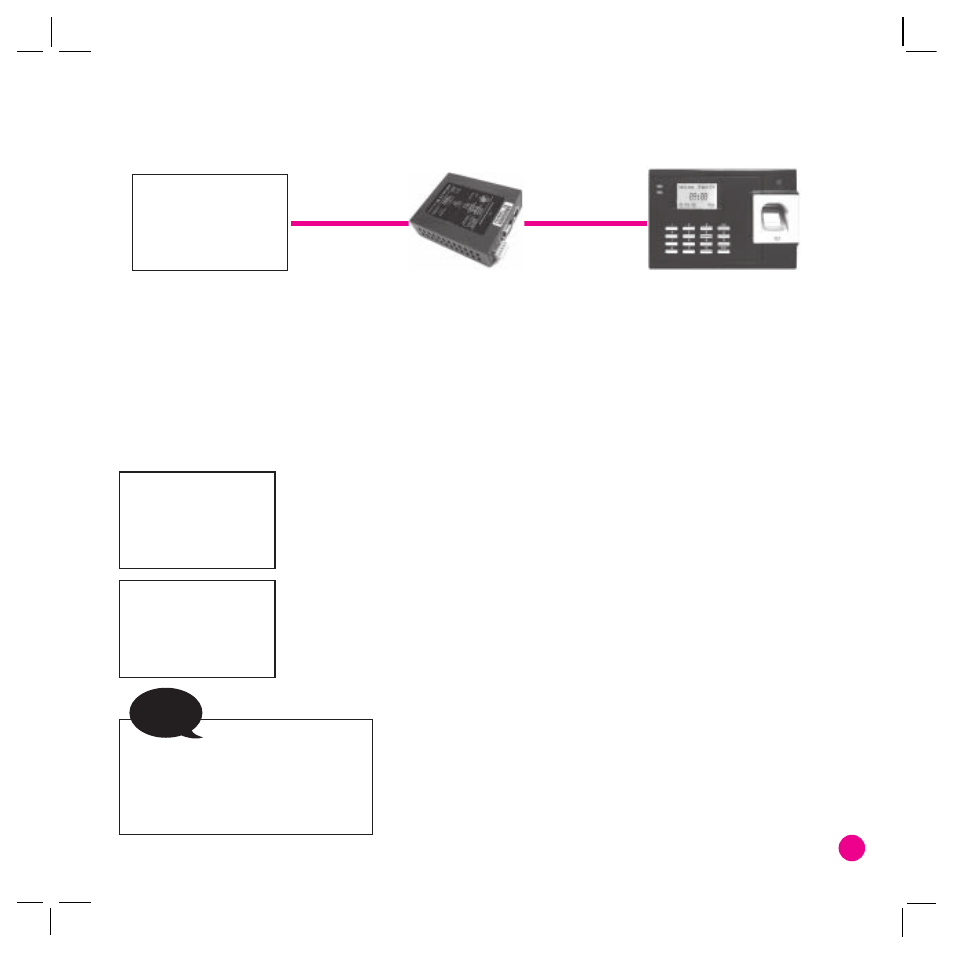

AC110-220V
Power Source C2 Controller Q2 Reader
Power Cable Direct Cable
POWER SUPPLY CONNECTION
1. Connect power cable from power source (AC110~240V) to C2 controller.
2. Connect direct cable from C2 controller to Q2.
3. Turn on the power source and Q2 will start.
COMMUNICATION CONNECTION
Q2 model be connected to computer by four ways:
TCP/IP Connection
1. Setup the IP address by network configuration
The machine default IP address is 192.168.1.201; this is a legal and
available IP address in many LAN environment. If the host IP address
is 192.168.1.X and it is in the same network region, then this IP can
be used directly. If not, please make sure that you have changed the
IP address accordingly.
2. Setup of Ethernet.
Access Menu select “Options” > “Comm. Opt” > “Ethernet”, select
“Yes” to enable Ethernet function.
3. Turn the power off.
4. Plug the network plug to the Ethernet interface.
5. Turn the power on.
When RS232/RS485/Ethernet is
enabled, only the Ethernet function
will be enabled while the RS232/
RS485 will be disabled.
