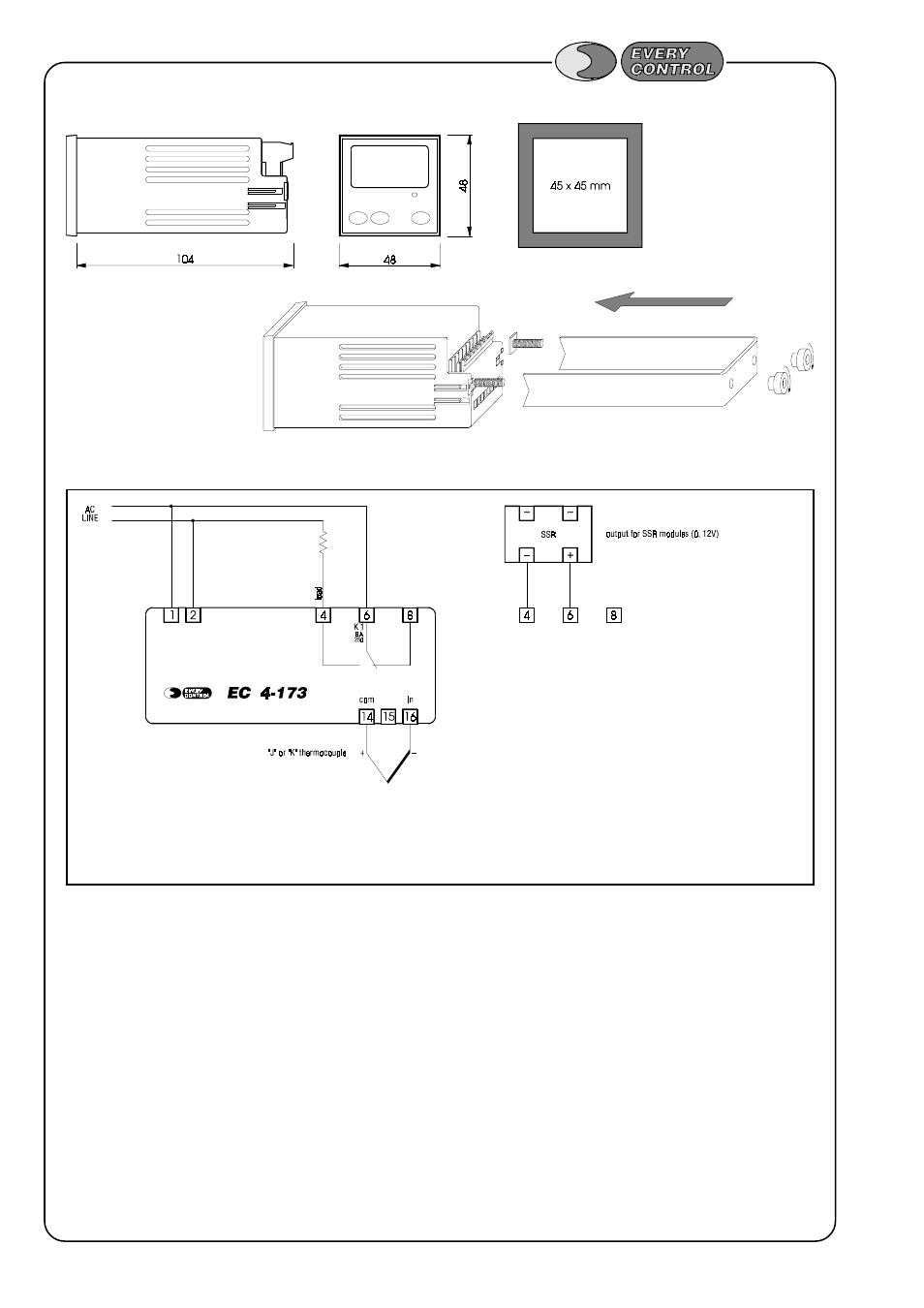

SIZE AND PIERCING TEMPLATE
Measure in mm.
MOUNTING
With U-bracket.
The panel thickness will be
between 1 and 5 mm.
ELECTRICAL CONNECTIONS
Example of typical application.
ELECTROMECHANICAL CHARACTERISTICS
Case:
self-extinguishing plastic (PPO) black, according to
UL94 V-0.
Size:
48 x 48 x 95 mm.
Mounting:
panel mounting with U-bracket.
Environment
temperature:
from 0 to +60 °C.
Humidity:
10 ... 90% not condensing.
Connections:
extractable screw connectors.
Power-supply:
230 Vac 50-60 Hz 2 VA (standard);
others on request.
Insulation class:
II (only with ac power-supply).
Inputs for measure: 1 configurable for "J" or "K" thermocouple.
Range of measure: from -99 to +700 °C ("J" thermocouple);
from -99 to +999 °C ("K" thermocouple).
Range of regulator
programming:
from 0 to +999 °C.
Display:
3 digits display, height 12,5 mm;
output status indicator.
Resolution:
1 °C.
Outputs:
1 SPDT 8 A/250 Vac relay (K 1).
Serial port for data
exchange:
TTL with EVCOBUS protocol (on request).
