Every Contr
ol S.r
.l. • EK 356A • Sheet 1/2
1 PREPARATIONS

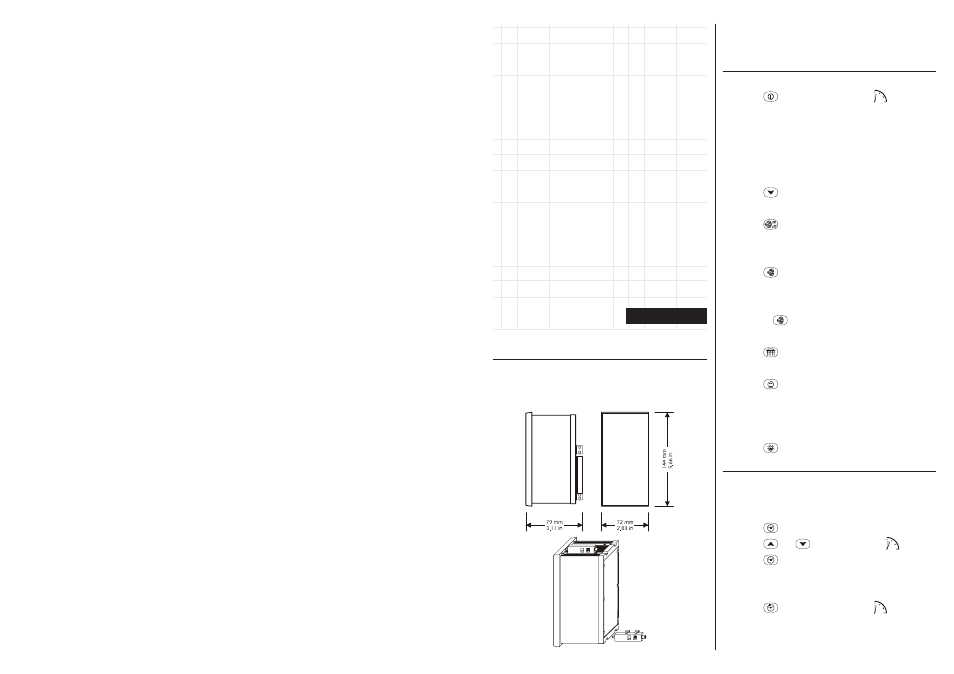

1.1 How to install the instrument
Panel mounting, panel cut out 67 x 138 mm (2.63 x 5.43 in),
with screw brackets (supplied by the builder).
smart guide
EK
356A
ON-OFF digital controller for electrical bread
ovens
Version 1.00 of 16 th March 2004
File ek356a_eng_v1.00.pdf
PT
EVERY CONTROL S.r.l.
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone 0039-0437-852468 • Fax 0039-0437-83648
[email protected] • www.evco.it
installation with screw brackets; moderate the clamping torque, in order not to damage
box and screw brackets.
2 OPERATION
2.1 How to turn the instrument ON/OFF
• press for 2 s
During the normal operation the instrument shows the top tem-
perature (in the display at the top), the floor temperature
(in the display in the middle) and the cooking timer length
(in the display at the bottom).
2.2 How to silence the buzzer
• press
2.3 How to turn the steam generator ON/OFF
• press
2.4 Steam injection
To inject steam:
• press
The steam will be injected if the steam generator is turned ON,
for the time you have set with parameter tb1 or as long as you
release button
2.5 How to turn the extractor ON/OFF
• press
2.6 How to activate/deactivate function Economy
• press
During this function top and floor outputs will alternatively be
activated for 50 % of the time you have set with parameter c1.
2.7 How to turn the chamber light ON/OFF
• press
3 TIMER FOR DELAYED STARTING
3.1 How to set the timer for delayed starting
To modify the timer for delayed starting:
• be sure the instrument is turned OFF
• press
• press or within 4 s (1)
• press
To activate the timer:
• be sure the instrument is turned OFF
• press for 2 s
As soon as the time you have set with the procedure passes, the
device will automatically turn ON (2) (3) .
ENGLISH
