Every Contr
ol S.r
.l. • EK 354A • Sheet 1/2
1
PREPARATIONS
1.1

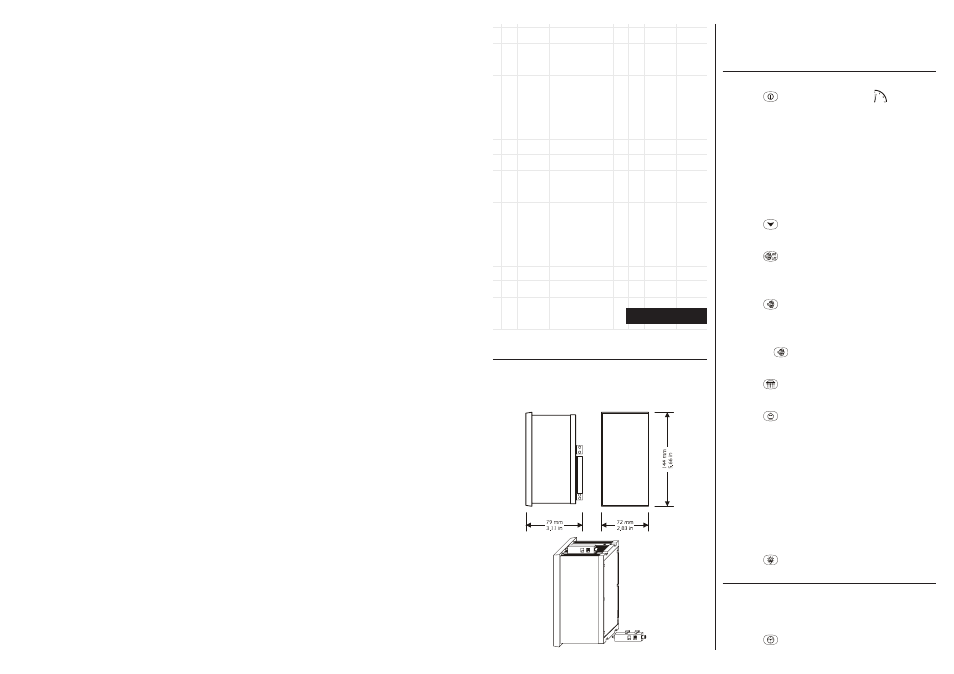

How to install the instrument
Panel mounting, panel cut out 67 x 138 mm (2.63 x 5.43 in),
with screw brackets (supplied by the builder).
smart guide
EK
354A
ON-OFF digital controller for electrical bread
ovens
Version 1.00 of 16
th
April 2004
File ek354a_eng_v1.00.pdf
PT
EVERY CONTROL S.r.l.
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone 0039-0437-852468 • Fax 0039-0437-83648
[email protected] • www.evco.it
installation with screw brackets; moderate the clamping torque, in order not to dam-
age box and screw brackets.
2
OPERATION
2.1
How to turn the instrument ON/OFF
• press
for 2 s
During the normal operation the instrument shows the tempera-
ture the chamber probe is reading (in the display at the top), the
percentage of power supplied to the top heating group (in the
LED bar at the top), the percentage of power supplied to the
floor heating group (in the LED bar at the bottom) and the
cooking timer length (in the display at the bottom).
2.2
How to silence the buzzer
• press
2.3
How to turn the steam generator ON/OFF
• press
2.4
Steam injection
To inject steam:
• press
The steam will be injected if the steam generator is turned ON,
for the time you have set with parameter tb1 or as long as you
release button
2.5
How to turn the extractor ON/OFF
• press
2.6
How to activate/deactivate function Economy
• press
During this function the time the top output is turned ON is
“ {[(time you have set with parameter c1) / 2] / 10} x (number of
bars turned ON in the LED bar at the top) “ ; the time the floor
output is turned ON is “ {[(time you have set with parameter c1)
/ 2] / 10} x (number of bars turned ON in the LED bar at the
bottom) “ .
During this function the outputs are alternatively activated.
2.7
How to turn the chamber light ON/OFF
• press
3
TIMER FOR DELAYED STARTING
3.1
How to set the timer for delayed starting
To modify the timer for delayed starting:
• be sure the instrument is turned OFF
• press
ENGLISH
