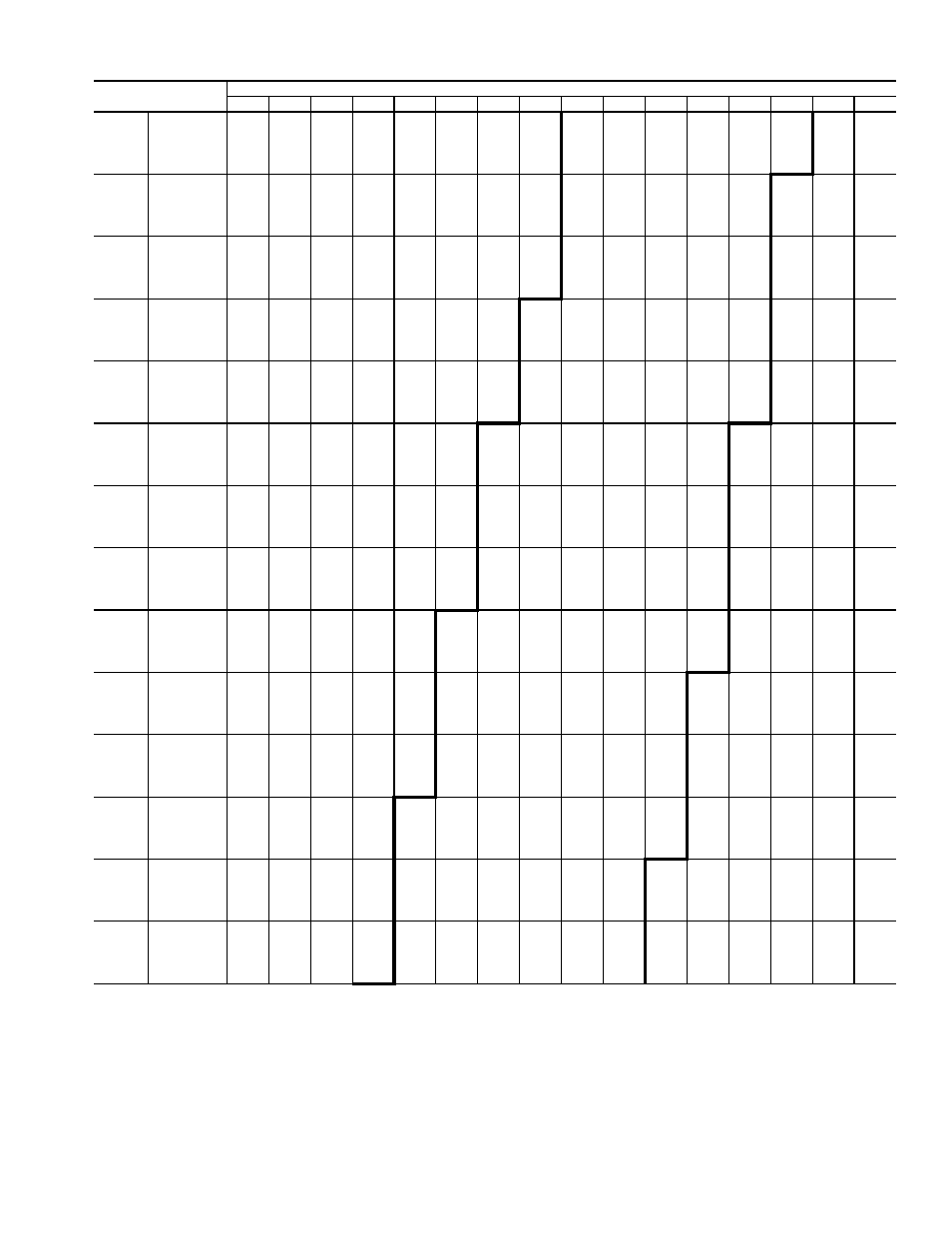

Table 12 — 50VQP300 Blower Performance Data
LEGEND NOTES:
1. Unit is factory shipped with standard static sheave and drive at 2.5 turns open. Other
speeds require field selection.
2. For applications requiring higher static pressures, contact your local Carrier repre-
sentative. Performance data does not include drive losses and is based on sea level
conditions.
3. All airflow is rated at lowest voltage. If unit is dual voltage rated, data is based on
lowest voltage.
4. A = Standard Rpm/Standard Motor, B = Low Rpm/Standard Motor, C = High Rpm/
Standard Motor, E = High Rpm/Large Motor.
AIRFLOW
(l/s)
EXTERNAL STATIC PRESSURE (Pa)
0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375
2643.2
BkW — — — — — 0.69 0.75 0.84 0.99 1.05 1.14 1.29 1.44 1.59 1.74 1.88
Sheave/Mtr — — — — — B B B A A A A A A C C
RPM — — — — — 533 572 606 640 676 712 746 783 821 859 901
Turns Open — — — — — 5.5 4 3 6 4.5 3.5 2 1 0 1.5 0.5
2737.6
BkW — — — — — 0.75 0.84 0.90 1.05 1.14 1.20 1.35 1.50 1.62 1.80 1.94
Sheave/Mtr — — — — — B B B A A A A A C C C
RPM — — — — — 544 582 619 652 686 719 754 789 823 860 902
Turns Open — — — — — 5 4 2.5 5.5 4 3 2 0.5 2.5 1.5 0
2832.0
BkW — — — — 0.75 0.84 0.90 1.05 1.14 1.20 1.35 1.50 1.59 1.65 1.88 2.03
Sheave/Mtr — — — — B B B B A A A A A C C C
RPM — — — — 521 558 595 628 663 697 728 762 796 828 863 903
Turns Open — — — — 6 4.5 3 2 5 4 2.5 1.5 0.5 2 1 0
2926.4
BkW — — — — 0.84 0.90 1.05 1.11 1.20 1.29 1.44 1.56 1.65 1.80 1.94 2.09
Sheave/Mtr — — — — B B B A A A A A A C C C
RPM — — — — 536 572 608 640 674 705 737 769 799 832 866 904
Turns Open — — — — 5.5 4 3 6 4.5 3.5 2.5 1.5 0 2 1 0
3020.8
BkW — — — — 0.90 0.99 1.11 1.20 1.35 1.41 1.50 1.71 1.80 1.94 2.09 —
Sheave/Mtr — — — — B B B A A A A A A C C —
RPM — — — — 548 585 618 652 685 715 747 778 807 836 868 —
Turns Open — — — — 5 3.5 2.5 5.5 4 3 2 1 0 2 1 —
3115.2
BkW — — — 0.90 0.96 1.05 1.20 1.29 1.41 1.56 1.65 1.80 2.48 2.68 2.88 —
Sheave/Mtr — — — B B B A A A A A A C C C —
RPM — — — 522 562 599 631 664 694 725 756 784 815 845 874 —
Turns Open — — — 6 4.5 3 6 5 4 3 1.5 1 2 1 0.5 —
3209.6
BkW — — — 0.96 1.05 1.14 1.26 1.35 1.50 1.65 1.71 1.86 2.68 2.88 3.08 —
Sheave/Mtr — — — B B B A A A A A A C C C —
RPM — — — 537 576 612 643 676 705 736 763 793 823 850 880 —
Turns Open — — — 5.5 4 2.5 5.5 4.5 3.5 2.5 1.5 0.5 2 1 0.5 —
3304.0
BkW — — — 1.05 1.14 1.20 1.35 1.50 1.56 1.71 1.86 2.00 2.80 3.00 3.20 —
Sheave/Mtr — — — B B B A A A A A A C C C —
RPM — — — 551 589 622 655 685 716 746 776 802 829 858 886 —
Turns Open — — — 5 3.5 2 5 4 3 2 1 0 1.5 1 0 —
3398.4
BkW — — 1.05 1.11 1.20 1.35 1.50 1.56 1.71 1.86 1.94 2.09 2.88 3.08 3.28 —
Sheave/Mtr — — B B B A A A A A A A C C C —
RPM — — 526 565 600 634 665 696 727 754 783 809 837 865 891 —
Turns Open — — 6 4.5 3 6 5 4 3 2 1 0 1.5 1 0 —
3492.8
BkW — — 1.11 1.26 1.35 1.41 1.56 1.71 1.86 1.94 2.00 2.15 3.08 3.28 3.48 —
Sheave/Mtr — — B B B A A A A A A C C C C —
RPM — — 541 579 613 647 677 707 737 764 793 818 846 871 898 —
Turns Open — — 5 4 2.5 5.5 4.5 3.5 2.5 1.5 0.5 2.5 1.5 0.5 0 —
3587.2
BkW — — 1.26 1.33 1.41 1.56 1.71 1.86 1.93 2.00 2.15 2.30 3.28 3.48 3.68 —
Sheave/Mtr — — B B B A A A A A A C C C C —
RPM — — 554 591 626 659 688 718 746 774 802 829 640 657 677 —
Turns Open — — 5 3.5 2 5 4 3 2 1 0 2 1.5 0.5 0 —
3681.6
BkW — 1.18 1.26 1.41 1.56 1.71 1.78 1.86 2.00 2.15 2.30 2.45 3.48 3.68 — —
Sheave/Mtr — B B B A A A A A A A C C C — —
RPM — 531 569 605 639 669 702 729 757 785 811 838 645 663 — —
Turns Open — 6 4.5 3 6 5 3.5 3 2 1 0 2 1 0.5 — —
3776.0
BkW — 1.26 1.41 1.56 1.71 1.78 1.86 2.00 2.15 2.30 2.45 2.53 3.48 3.68 — —
Sheave/Mtr — B B B A A A A A A C C C C — —
RPM — 545 582 618 651 683 710 739 767 794 821 845 651 669 — —
Turns Open — 5 4 2.5 5.5 4.5 3.5 2.5 1.5 0.5 2.5 1.5 1 0 — —
3870.4
BkW 1.26 1.41 1.56 1.63 1.71 1.86 2.00 2.15 2.30 2.45 2.53 2.60 3.68 3.88 — —
Sheave/Mtr B B B B A A A A A A C C C C — —
RPM 523 560 596 631 661 692 722 750 778 804 831 854 657 676 — —
Turns Open 6 4.5 3.5 2 5 4 3 2 1 0 2 1.5 0.5 0 — —
A — Standard rpm/Standard Motor
B — Low rpm/Standard Motor
bhp — Brake Horsepower
C — High rpm/Standard Motor
E — High rpm/Large Motor
ESP — External Static Pressure
