Basys Reference Manual
www.digilentinc.com
Copyright Digilent, Inc. Page 10/12 Doc: 502-107
Information is only displayed when the beam is moving in the “forward” direction (left to right and top
to bottom), and not during the time the beam is reset back to the left or top edge of the display. Much
of the potential display time is therefore lost in “blanking” periods when the beam is reset and
stabilized to begin a new horizontal or vertical display pass. The size of the beams, the frequency at
which the beam can be traced across the display, and the frequency at which the electron beam can
be modulated determine the display resolution. Modern VGA displays can accommodate different
resolutions, and a VGA controller circuit dictates the resolution by producing timing signals to control
the raster patterns. The controller must produce synchronizing pulses at 3.3V (or 5V) to set the
frequency at which current flows through the deflection coils, and it must ensure that video data is
applied to the electron guns at the correct time. Raster video displays define a number of “rows” that
corresponds to the number of horizontal passes the cathode makes over the display area, and a
number of “columns” that corresponds to an area on each row that is assigned to one “picture
element” or pixel. Typical displays use from 240 to 1200 rows and from 320 to 1600 columns. The
overall size of a display and the number of rows and columns determines the size of each pixel.
Video data typically comes from a video refresh memory, with one or more bytes assigned to each
pixel location (the Basys uses three bits per pixel). The controller must index into video memory as
the beams move across the display, and retrieve and apply video data to the display at precisely the
time the electron beam is moving across a given pixel.

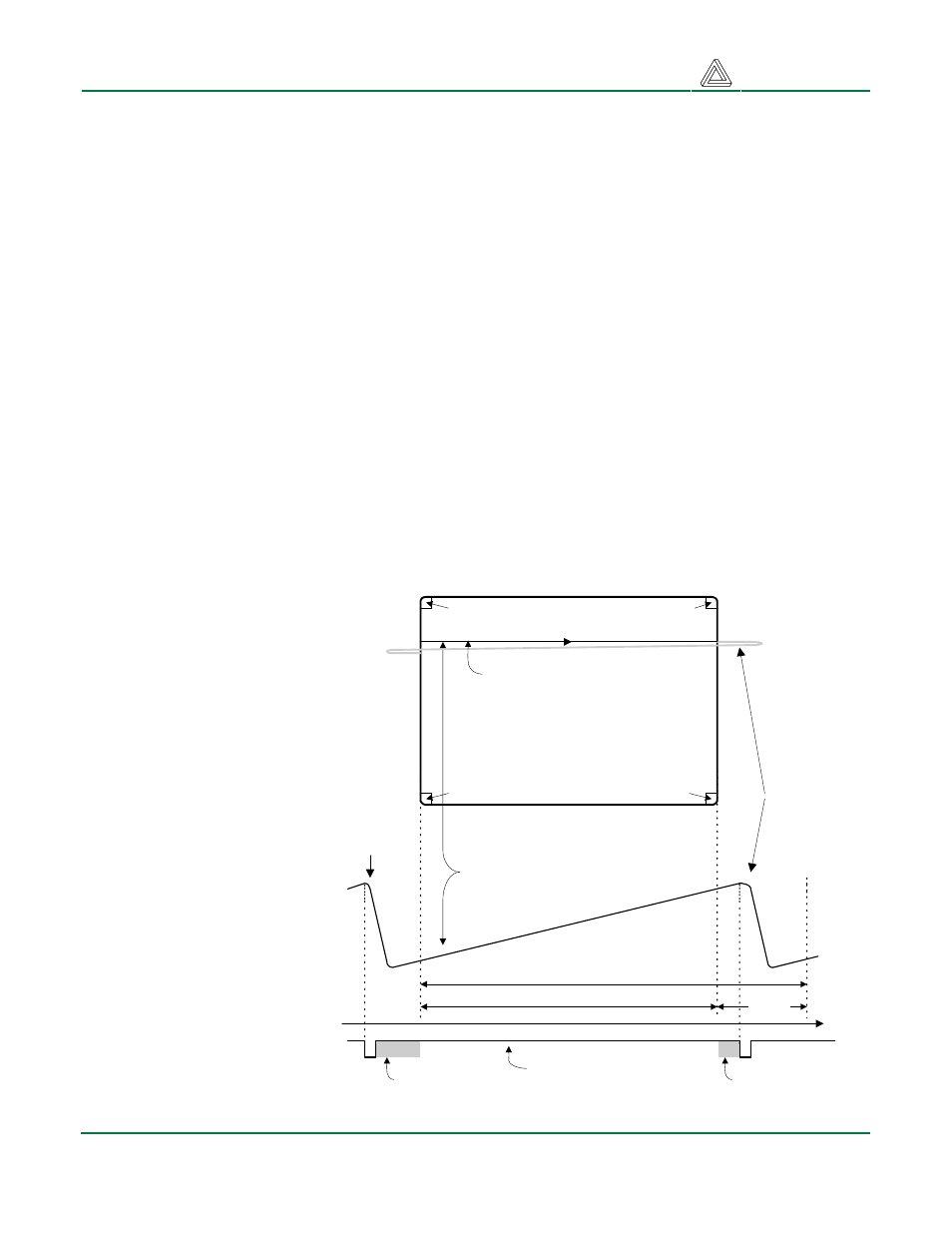

Current
through
horizontal
defletion
coil
Stable current ramp - information
displayed during this time
Retrace - no
information
displayed
during this
time
Total horizontal time
Horizontal display time
Horizontal sync signal
sets retrace frequency
retrace
time time
HS
"back porch" "front porch"
VGA display
surface
640 pixels are displayed each
time the beam travels across
the screen
pixel 0,639 pixel 0,0
pixel 479,0 pixel 479,639
A VGA controller circuit must generate the HS and VS timings signals and coordinate the delivery of
video data based on the pixel clock. The pixel clock defines the time available to display one pixel of
information. The VS signal defines the “refresh” frequency of the display, or the frequency at which all
information on the display is
redrawn. The minimum
refresh frequency is a
function of the display’s
phosphor and electron beam
intensity, with practical
refresh frequencies falling in
the 50Hz to 120Hz range.
The number of lines to be
displayed at a given refresh
frequency defines the
horizontal “retrace”
frequency. For a 640-pixel by
480-row display using a
25MHz pixel clock and 60 +/-
1Hz refresh, the signal
timings shown in the table
below can be derived.
Timings for sync pulse width
and front and back porch
intervals (porch intervals are
the pre- and post-sync pulse
times during which
information cannot be
displayed) are based on
observations taken from
actual VGA displays.
