IO-Link Master EtherNet/IP Reference Manual: 2000589 Rev. A
Chapter 6. ControlLogix Family - Example PLC Programs - 91
Example PLC Program Operation
-
When the device status transitions to active (2): The PrtN_Operational tag is enabled (latched).
This enables explicit message communication to the IO-Link Master on Rungs 3-6.
-
When the device status transitions to inactive (0) or initializing (1): The PrtN_Shutdown flag is
enabled (latched) which causes a full shutdown of the port.
c.

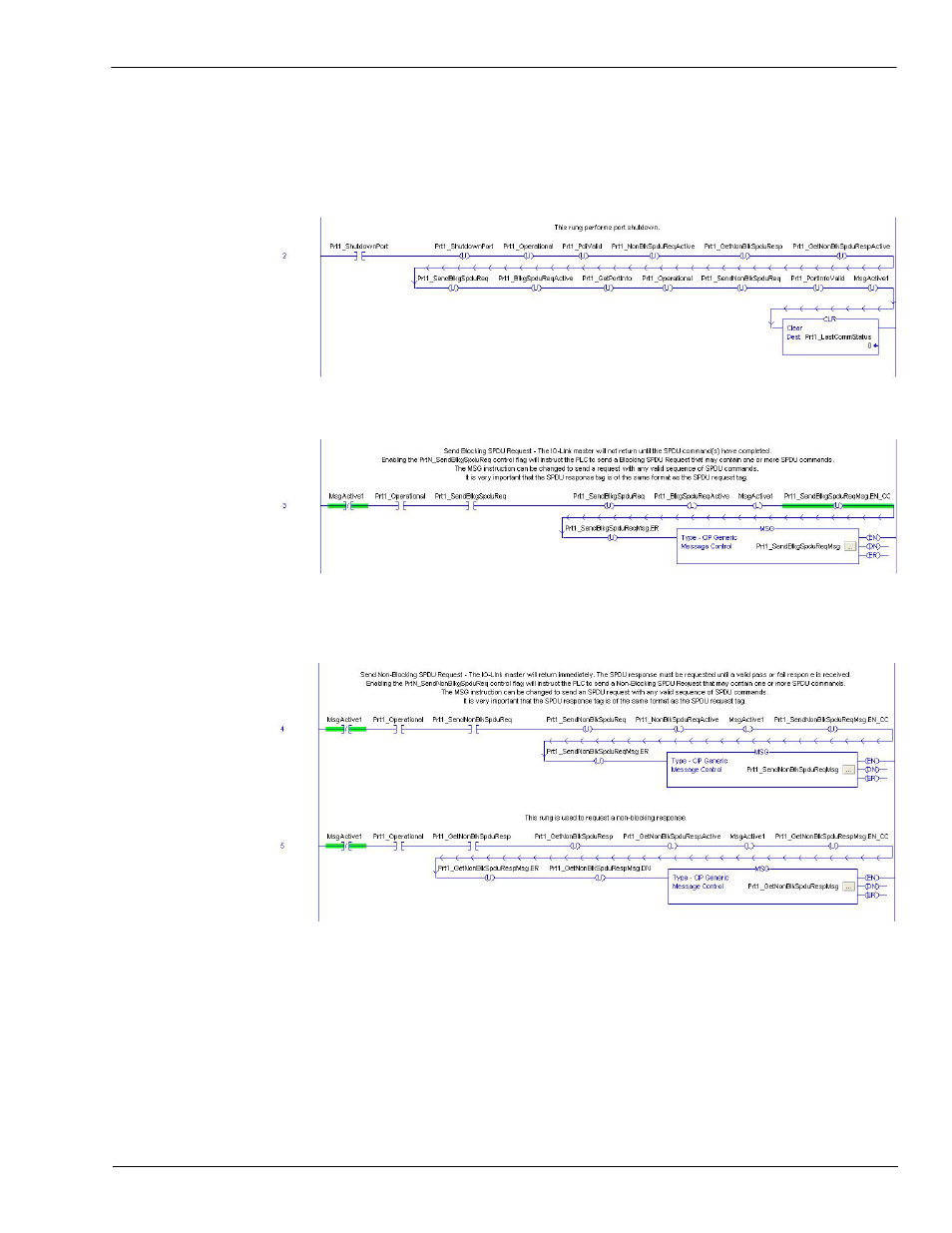

Rung 2:
This rung clears all flags necessary to cleanly shut down a port.
d.
Rung 3:
When the PrtN_SendBlkISDUReq tag is enabled, this rung sends an explicit message to the IO-Link
Master. This message starts a blocking ISDU process where the IO-Link Master will not return a MSG
response until all ISDU commands have been processed.
e.
Rung 4-5:
• When the PrtN_SendNonBlkISDUReq tag is enabled, this rung sends an explicit message to the IO-
Link Master.
-
This message starts a blocking ISDU process where the IO-Link Master returns a MSG
response immediately after verifying the ISDU request.
-
The IO-Link Master then processes all ISDU commands within the request.
-
The IO-Link returns In-Process statuses until all ISDU commands have been processed.
• When the PrtN_GetNonBlkISDUResp tag is enabled, this rung sends an explicit message to the IO-
Link Master to retrieve the ISDU response.
• Run 7 enables (latches) GetNonBlkISDUResp as soon the MSG in Rung 4 has completed
