TOSHIBA
6 f , 8 A 0 , a 0 ^ 2
I
Excitation Cable
Remove each core coating for cable as shown in Figure 5.5. Next, attach the insulating
sleeve crimp-style terminals (Note). Then, connect to the converter’s terminal block X and Y.
Also, connect the red cable core to converter’s terminal block E.
Note: Set the size of insulating sleeve crimp-style terminal as below.
Converter type
size of insulating sleeve crimp-style terminal
LF420
M3.5
LF230
M4
Insulating sleeve crimp-style terminals
(Note)

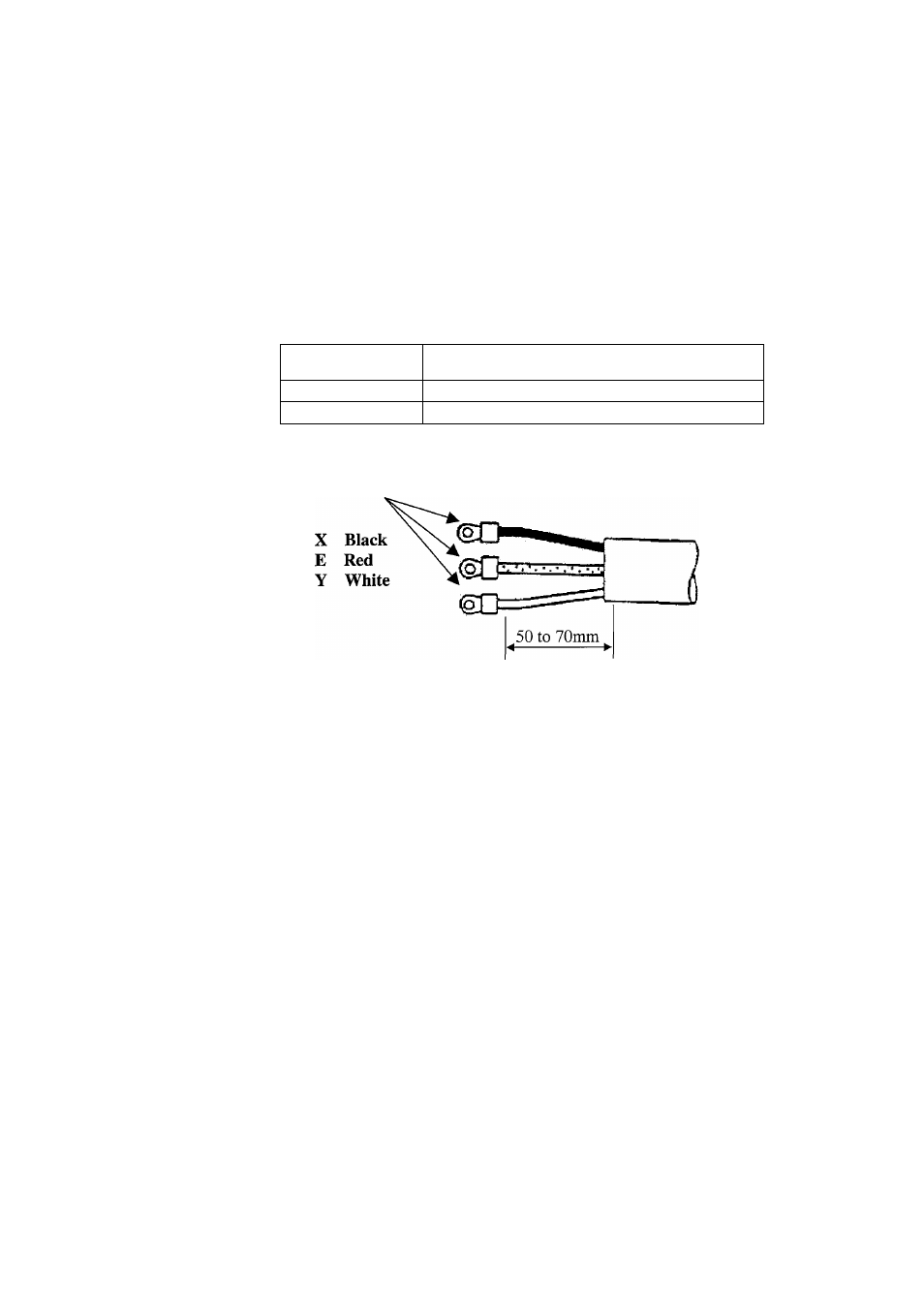

Figure 5.5 Excitation cable end processing
5.3.2 Cable Connections
Refer to the converter instruction manual, to connect the terminated cable wires to the
converter’s terminal board.
IMPORTANT
Connect the wires securely to the terminal board. A loose connection may result in
unsatisfactory flowmeter performance. Make sure the wires are securely connected.
-
2 4
-
