TOSHIBA
6 F 8 A 0 8 0 2
.... i„.... J......I..... J.....1.... i.............
5.3 Wiring Procedure
Cable termination and cable coimections are described below.
Use cables as specified in Table 5.1 and Table 5.2.
5.3.1 Cable Termination
A CAUTION
■ Do not conduct wiring work when ■ Do not work on piping and wiring
power is applied. with wet hands.
Wiring while power is ap- Wet hands may result in
1
plied can cause electric
1
electric shock.
shock.
DON’T DON’T
I Input signal Cable

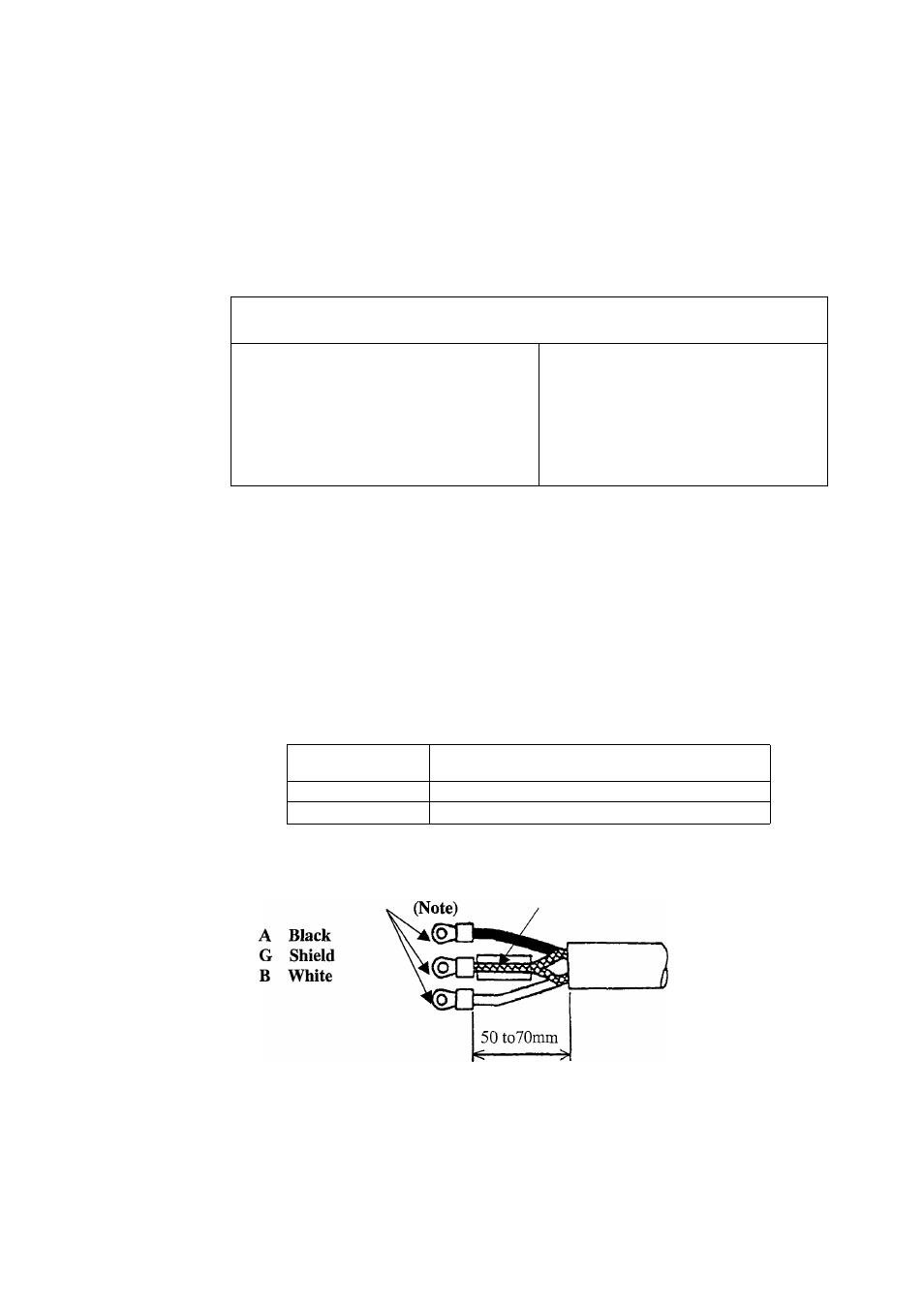

Remove each core coating for cable as shown in Figure 5.3. Next, attach the insulating sleeve
crimp-style terminals (Note). Then, connect to the converter’s terminal block A and B and
twist the shields together. Cover with the terminal contraction tubes before attaching the
crimp-style terminal and connecting to the converter’s terminal block G .
Note: Set the size of insulating sleeve crimp-style terminal as below.
Converter type size of insulating sleeve crimp-style terminal
LF420 M3.5
LF230 M4
Insulating sleeve crimp-style terminals
terminal contraction tubes
Figure 5.3 Input signal cable end processing
-
