KBD200/300/300V CM6700 mode
Input the desired preset number using the numeric keypad.
Hold down the PRESET button until the Edit LABEL screen of CM6700 is displayed.
Press the TILT UP/DOWN button until SET is chosen.
Press the ACK button to set the preset.
MPT9500
Input the desired preset number using the numeric keypad.
Press the PRESET SET button.
Press the F2 button to set the preset.
8.2 PERFORMING PRESET OPERATIONS
JK-UC1
Input the desired preset using the numeric keypad.
Press the PRESET button to perform the preset.
KBD200/300/300V direct and CM6700 mode
Input the desired preset number using the numeric keypad.
Press the PRESET button to perform the preset.
MPT9500
Input the desired preset number using the numeric keypad.
Press the PRESET GO button to perform the preset.
9. Installation :
JK-H01A is a housing for ceiling mount of the Toshiba dome camera.
1. IK-DP20A Installation procedure
(1) Carefully Inspect to insure all parts are
present and remove all parts from the box.
(2) A template is included for ease in cutting
the mounting hole. First, locate a position in
the ceiling for a 9.020.08" (2292mm) hole to
be drilled. Trace around the template,
then cut a hole in the ceiling screw
following the trace lines. [Note: The
thickness of a ceiling to which this housing
can be attached is 0.08-1.77" (2-45mm).]
(3) Remove the dome cover. To separate the
dome cover from the housing, turn the cover
to the left with both hands. This dome cover is

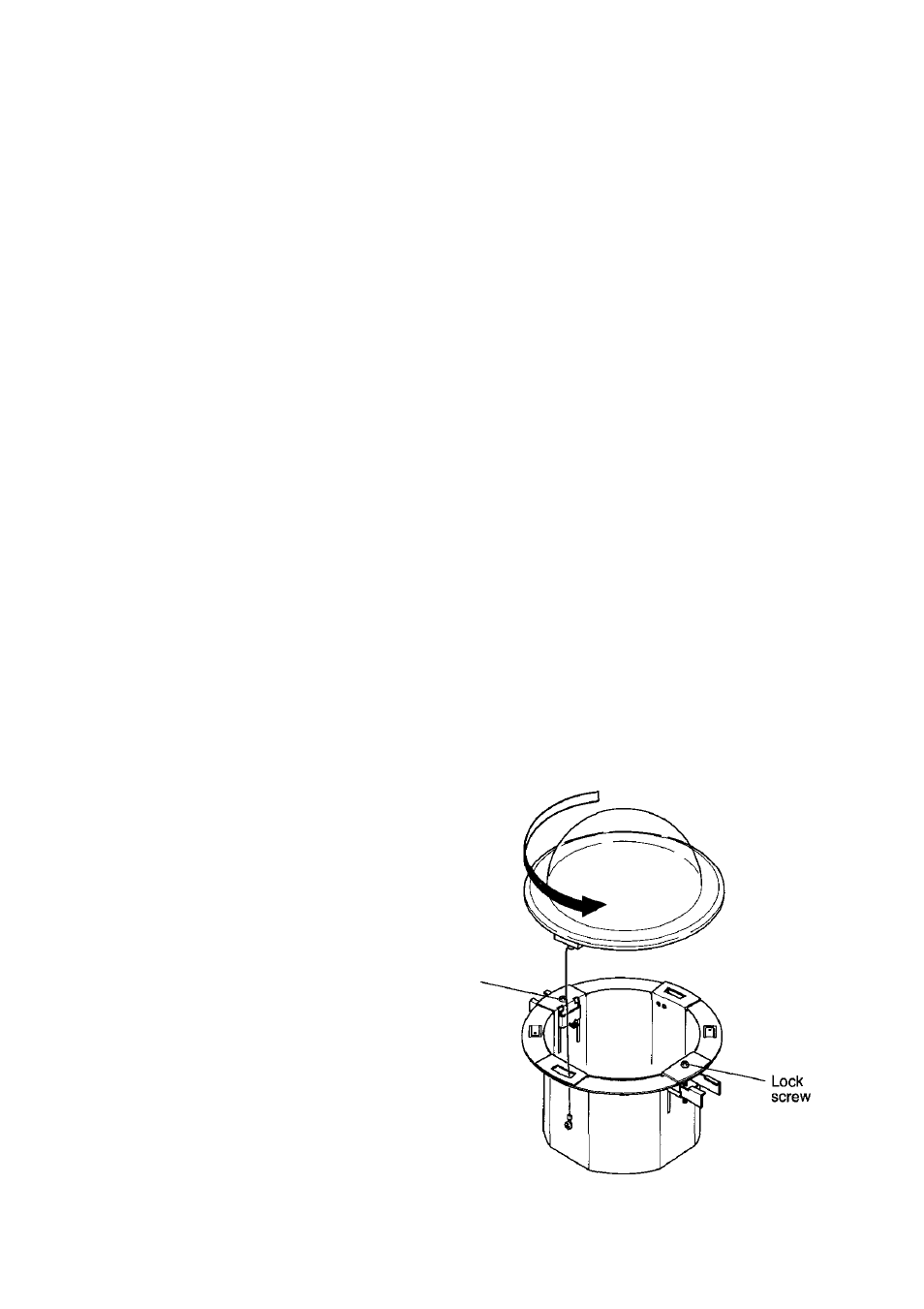

connected to the top housing with the wire. Fig-1
Fig-1
