Using PK-2 fPLU Keyboard: hardware option)
The PK-2 is used to enter a required PLU code by simply depressing the code-preset key on the
PK-2 keyboard in the REG or MGR mode. In addition, the PK-2 can be used to enter characters
directly during the programming operations that require character settings, such as STORE
NAME/MESSAGE AND COMMERCIAL MESSAGE PROGRAMMING, DEPARTMENT TABLE
PROGRAMMING, etc.

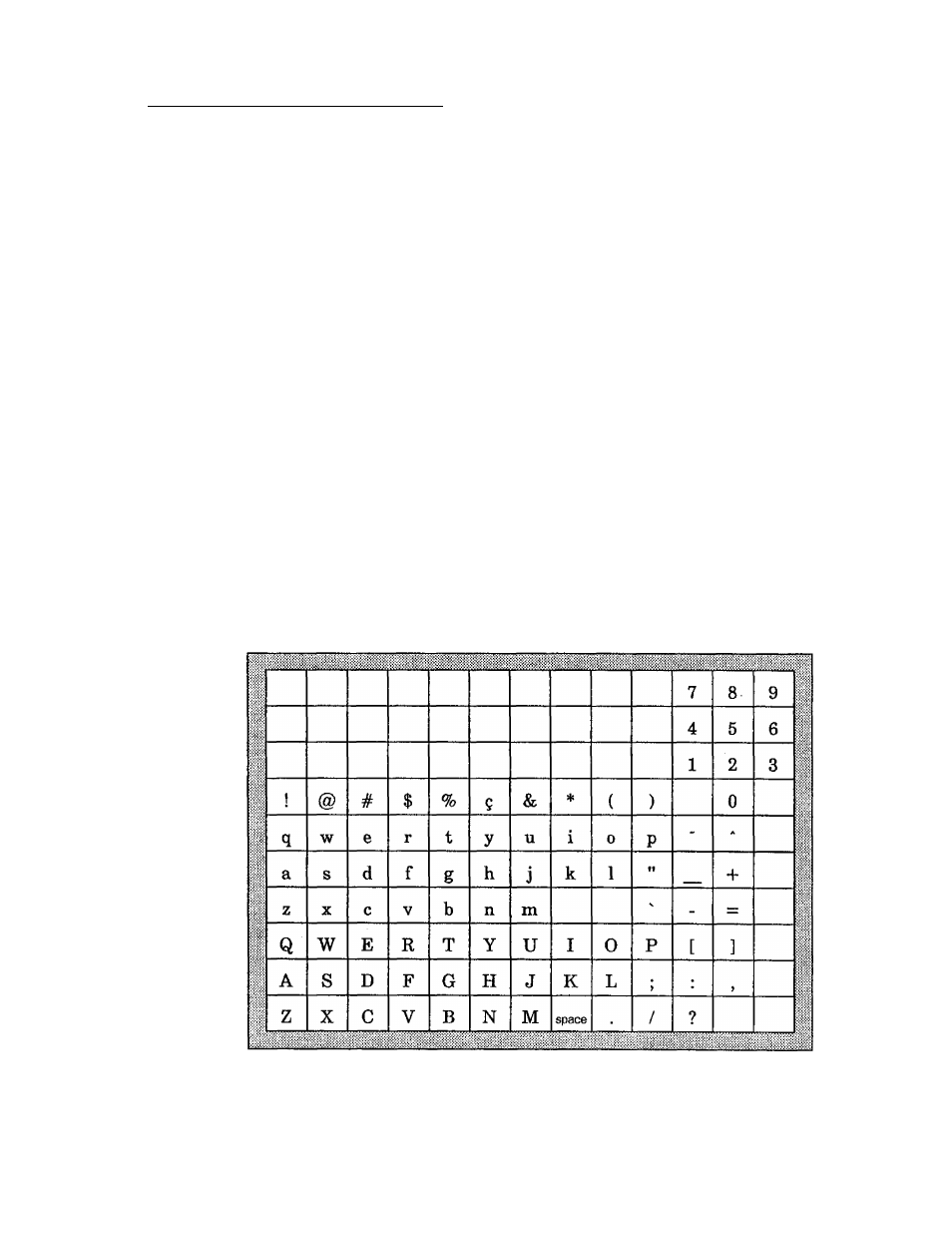

The figure below shows the key indications of the PK-2 keyboard for the character setting
purpose. Insert the template for this purpose between the film layers that cover the PK-2
keyboard.
Instead of entering a 3- or 4 digit character code and depressing the [#] key on the ECR
keyboard, a simple depression of the appropriate key on the PK-2 keyboard will be the character
entry.
Unlike the TKB-1, all the function keys, such as [X], [ST], [#]. [AT/TL], etc. must be operated on
the ECR side. Any characters not listed on the template may be entered by the CHARACTER
CODE ENTRY method on the ECR keyboard (the characters even listed on the template may be
entered as well by that method).
Please note also that the keys “0" to “9” in the figure below function as character keys but do
not function for code entries. Any code entries, for Item Codes, Address Nos, etc. must be
entered through the Numeric Keys on the ECR keyboard.
The One Double-size Declaration (by depressing the [X] key once prior to the required character)
and the All Double-sized Declaration (by depressing [X] twice before all the characters) are the
same as in the CHARACTER CODE ENTRY method.
- 35 -
