Compatible Components
A wide variety of compatible \rideo Cassette Recorders
(VCRs), camcorders, and audio components are
available.
Check with your dealer for details. Other
components can also be connected to your TV. Refer to
the component’s owner’s manual for the manufacturer s
recommended hookup instructions.
cOD
General Cable Information
Antenna (or cable-TV)
connections are made
with either coaxial
antenna cable or twin-
lead cable. Coaxial
cables are shielded so
they are less susceptible
to hum or interference from adjacent cables.
Most audio/video connections
between components can be
made with shielded audio and
Slip^n End
Screw-on End
Round 75-ohm coaxial cable
such as No. AH037 (screw-on),
AH065G (push-on), or AH066G (push-on)
Standard AudioAldeo Cable
with RCA-type phono plugs
video cables that have RCA-type (such as No. aho 69G)
phono connections. When
connecting components to each other, be sure that you
always connect left outputs to left inputs and right outputs
to right inputs. If a component has only one output
(mono), connect it to the R/MONO input jack.
To connect S-VHS (Super-VHS)
components, an S-Video cable is
required.
S-Video Cable
(such as No. VAA020)

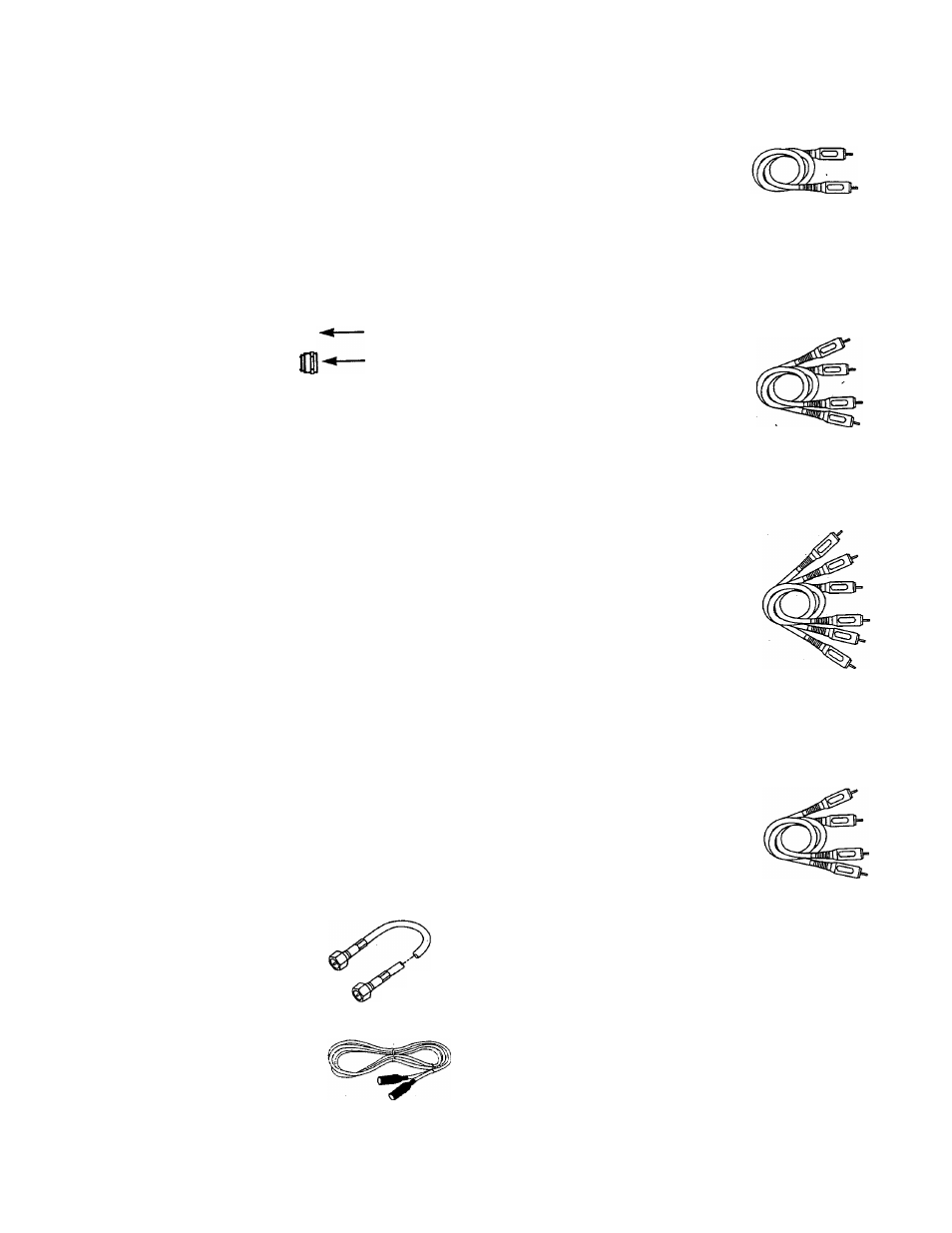

AudioA^ideo Cables
AudioWideo Cable
Shielded cable for connecting A i/D/0 and
VIDEO
jacks. Has an RCA-type phono
plug on each end.
Stereo Audio Cable
Double gold-tipped cable generally used
for connecting stereo audio components.
Stereo VCR Dubbing Cable
Triple cable that lets you connect the
VIDEO
and A
UDIO
jacks of stereo
components.
Gold-Upped Cables
AH069G (3-ft)
AH070G(5-ft)
Gold-Tipped Cable
AH072G (3-ft)
Gold-Tipped Cable
AH077G (6-ft)
The following accessories are available from most
dealers in case you want to position your components
farther apart or need additional cables.
Antenna Cables
Screw-on Antenna Cable
Attaches to the round antenna connectors
(called 75-ohm F-type) on the back of
your VCR or TV. The ends screw onto
the connectors for a secure connection.
AH037 (3-fi)
Push-on Antenna Cable
Attaches to the round antenna connectors
(called 75-ohm F-type) on the back of
your VCR or TV. Ends push on for a
quick connection.
Gold-Tipped Cables
AHOdSG (6-ft)
AH066G (10-fl)
Monaural VCR Dubbing Cable
Double cable that lets you connect the
VIDEO
and A
UDIO
jacks of two VHS
VCR’s to duplicate tapes. Can also be used
to connect a VCR to your TV. Cable is
color-coded and shielded. Has RCA-type
phono plugs on each end.
S-Video Cable
Has multipin S-connector on each end for
connecting S-VHS components to your TV.
When connecting an S-VHS component to
the
S-VIDEO
jack on your TV, remember to
also connect the left and right audio cables
to the
INPUT 1
jacks because the S-Video
cable carries only the picture, not the sound.
Gold-Tipped Cable
AH075G(6ft)
VAA020(8-ft)
