Caution: Do not connect external speakers to more than one audio source at a time. You can connect a set of
speakers to either the TV or the Amplifier
but not to both at the same time. If you connect the same speakers to
both the TV and the amplifier, you will damage your equipment.
Connecting Speakers to Back of TV
If you connect an amplifier or receiver to your TV, connect the
speakers to the amplifier /receiver instead of the TV.
If you do not connect an amplifier or receiver to your TV, you
can connect external speakers to the TV to enhance the TV's
sound.

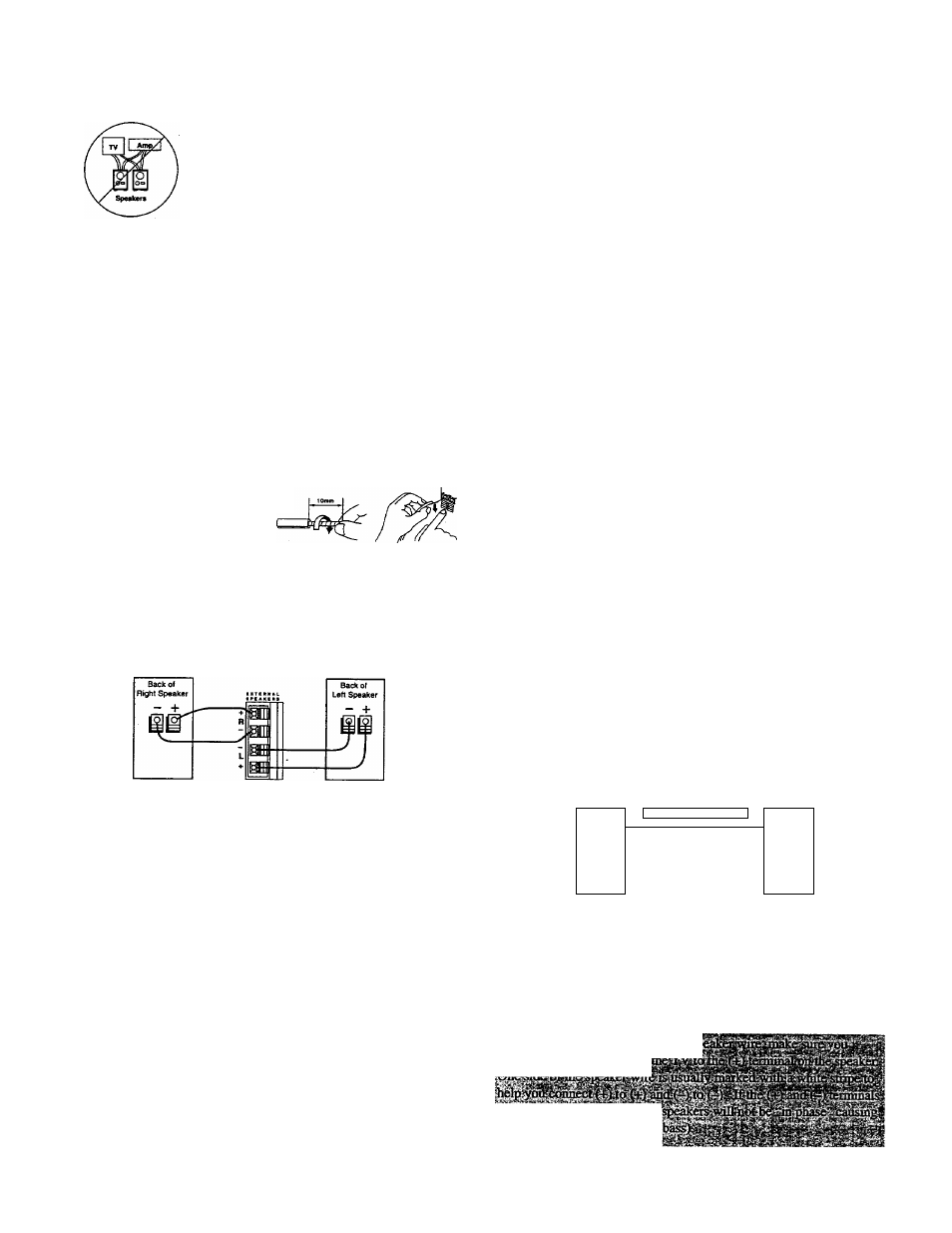

The diagram below shows how to connect external speakers to
the speaker terminals on the back of the TV.
1. Remove the vinyl covering and twist the wire core.
2. Presiand hold the lever down while inserting the wire core
into the hole. Be sure to connect (+) to (+) and (-) to (-) as
explained in the note below.
3. Release the lever.
Notes:
• After releasing the lever, pull gently on the wire and
check that it is connected securely to its terminal.
• Do not allow the wire core to protrude from its terminal or
contact other wires or terminals. If the cores of two wires
touch each other, damage to components could result
The speaker switch on the back of the TV allows you to use the
external speakers two ways:
• To enhance the sound from the TV, place the speakers in the
front of the viewing area (usually beside the TV), and slide
the speaker switch to
EXT. This provides full power to the
external speakers for a “fuller” sound. The internal audio
from the TV’s speakers will be turned off.
EXT
SPEAKER
M 3
INT/EXT
SURR
To obtain a “surround sound” effect, place the external
speakers in the rear of the viewing area, and slide the
speaker switch to
INT/EXT SURR.
This provides full power
to the TV’s internal speakers for the front sound and a
surround signal to the rear speakers.
Helpful Hints:
• External speakers placed next to the TV will sound better the
higher quality they are.
• Very efficient small “bookshelf’ or “compact” speakers will
give good results for surround-sound use.
• Surround effect can often be improved by experimenting
with rear speaker placement.
• Surround-encoded movies (broadcast or tape) give the best
surround effect, but regular stereo and mono programs will .
also benefit.
Connecting Speakers to Back of Amplifier or
Receiver
If you connect an Amplifier or Receiver to your TV, connect
the speakers to the Amplifier/Receiver instead of the TV.
Sound from the TV wiU then come through the
Amphfier/Receiver and the TV’s internal speakers. You can
turn off the TV’s internal speakers with the
SPEAKERS:
OV/DFF function described on page 16.
The diagram here shows how to coimect external speakers to
the speaker terminals on the back of a typical
Amplifier/Receiver. Check the owner’s manual for your
Amplifier/Receiver if its speaker terminals look different than
those shown.
1st Set Q< Speakers -x.
(Connect to *A* Tenninats)
Back of AmpHer / Recerver
—+MOHT— — l£FT +
©
L
- +
• (Optional)
2nd Set of Spaaksfs
(Connect to *B* Temr^nalsl
Notes:
• After connecting speaker wire, pull it gently and check
that it is connected securely to its terminals.
• Do not allow the wire core to protrude from its
terminal or contact other wires or terminal. If the cores
of two wires touch each other, damage to components
could result.
Im{wrtantj^ W£ch conn^tingit^^sp
copn^th&X+i termi^ oi^ ''
uiunot iiiatchul ^•n^x.rb, the
