Setting up rAe system
lOaOVR {En/Kl
Digital connections

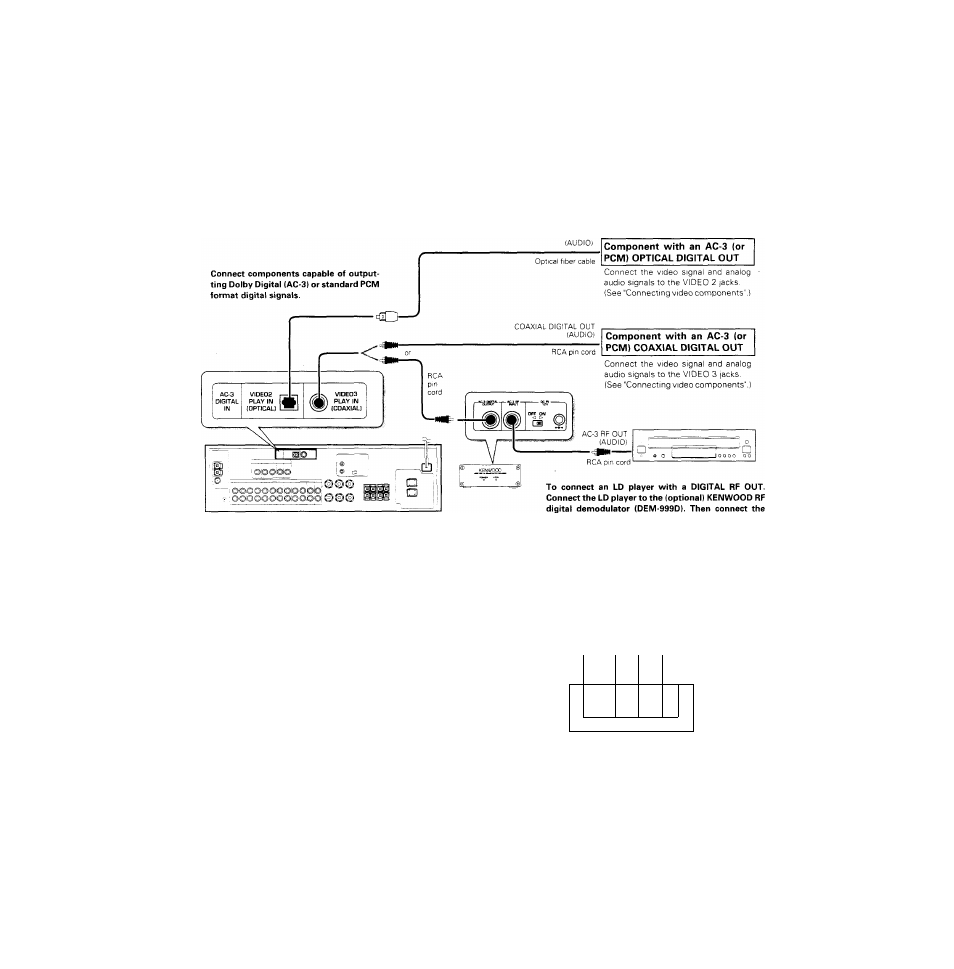

Make connections as shown below.
The digital in jacks can accept either Dolby Digital (AC-3) or PCM signals (the input signal type is detected automatically).
When connecting the related system components, be sure to also refer to the instruction manuals supplied with the
components you are connecting.
Do not connect the power cord to a wall outlet until all connections are completed.
OPTICAL DIGITAL OUT
11
demodulator to the VIDEO 3 DIGITAL IN.
Connect the video signal and analog audio signals to the
VIDEO 3 jacks. (See ‘Connecting video components’.)
AC-3 RFDemodulator DEM-999D (Optional)
o o
KENWOOD
¡t <3iUOOAArVi OFF ON <1 D-
EXTERNAL DC SUPPLY DC 12V
O POWER indicator
Lig’os ueoi v. !''en :ne povver switch I0i is set to ON
© LOCK indicator
Lignts w-nei^ an AC-3 RP signal is input to the AC-3 RF INPUT jack (O)
O AC-3 DIGITAL OUTPUT (coaxial)
Connect this lacK to the coaxial AC-3 DIGITAL IN lack on your receiver,
t outputs AC-3 coaxial digital signals when the POWER (®) is set to
ON and an AC-3 RF signal is input to the AC-3 RF INPUT |ack (O),
O AC-3 RF INPUT
Connect this lack to the AC-3 RF OUTPUT jack on your LD player,
e POWER switch
Use to switch the power ON/OFF.
O DC IN (12V) jack
Connect this jack and inlet power cord to the AC adaptor supplied with
your demodulator. Connect the power cord to a wall outlet after
completing all of the other connections.
Place the power supply away from the demodulator,
receiver, and any antennas.
