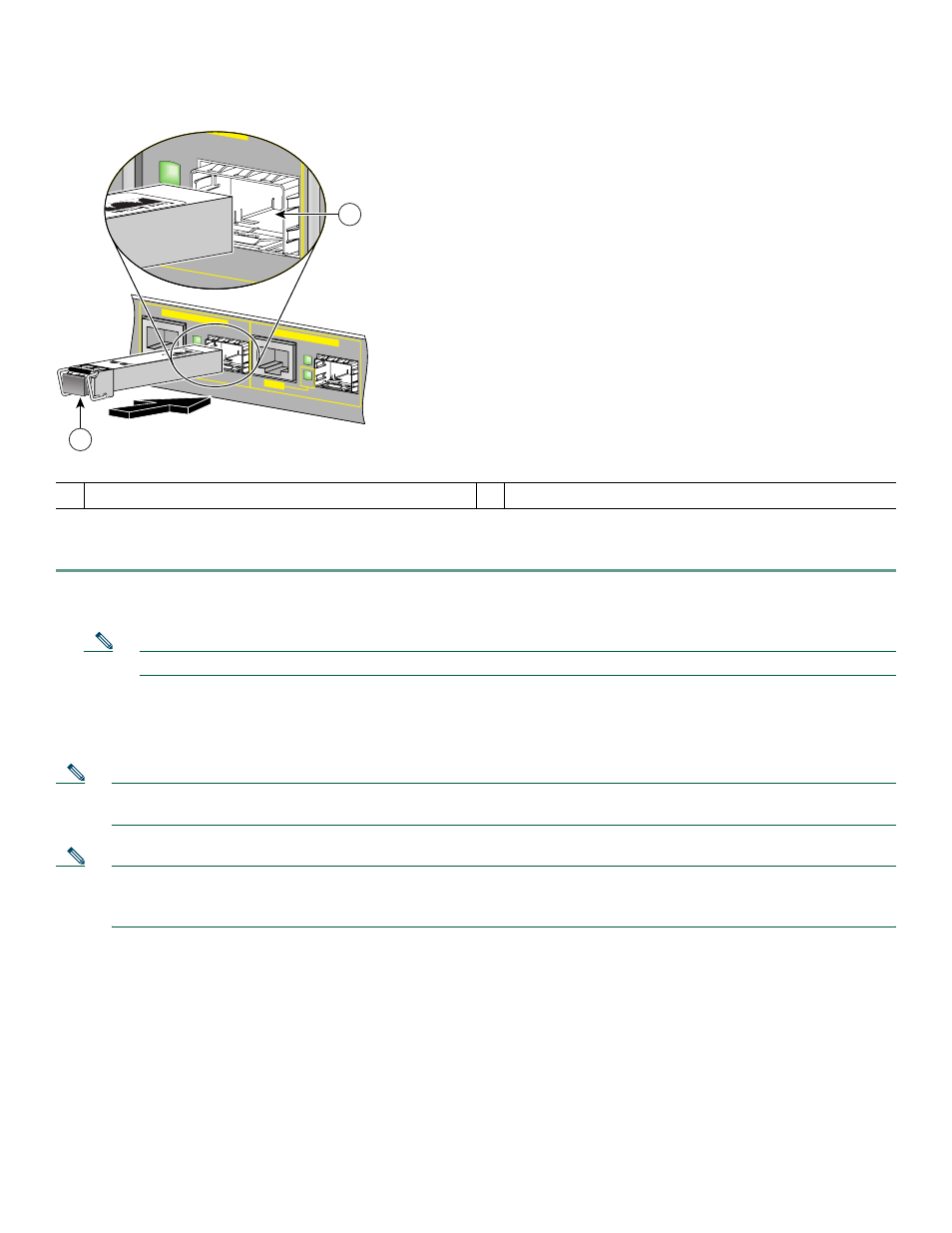

Figure 3

Inserting an SFP Module into the NPE-G2 Gigabit Ethernet Port 0/1

Use the following procedure to install an SFP module in the NPE-G2:

Step 1

Attach an ESD-preventive wrist strap between you and an unpainted chassis surface.

Step 2

Locate the label on the SFP module and turn the SFP module so the label is on top and the alignment groove is down.

Note

The SFP module is keyed so that it cannot be inserted incorrectly.

Step 3

Insert the SFP module into SFP port 0/1, 0/2, or 0/3. The SFP module snaps into place when you have completely and
properly inserted it.

Step 4

Repeat Step 2 if you are inserting a second or third SFP module.

Note

Do not remove the plug from the SFP module optical bores until you are ready to install the network interface optical
fiber cable. Save the plug for future use.

Note

We strongly recommend cleaning all optical fiber connections before connecting optical cables to equipment. For
information about cleaning optical connectors, see the

Inspection and Cleaning Procedures for Fiber-Optic

Connections

document and the

Compressed Air Cleaning Issues for Fiber-Optic Connections

document.

See the

Cisco 7200 VXR Installation and Configuration Guide

for more information.

SFP port 0/1

SFP module

RJ45

GIGABIT ETHERNET 0 / 1
