Note
Ensure that you connect the TX and RX ports on one end of the patch cord to the RX and TX ports (respectively) on
the other end. Connect TX to RX and RX to TX.
Port Adapter Cable Connections
The instructions for connecting the cables for each port adapter installed in the Cisco 7200 VXR routers are in the respective
online note for each port adapter. The documents are available on the Documentation DVD and on Cisco.com. Reference them
from the
at:
http://www.cisco.com/en/US/docs/routers/7200/roadmaps/7200_series_doc_roadmap/3512.html
Placing the Cables in the Cable-Management Brackets

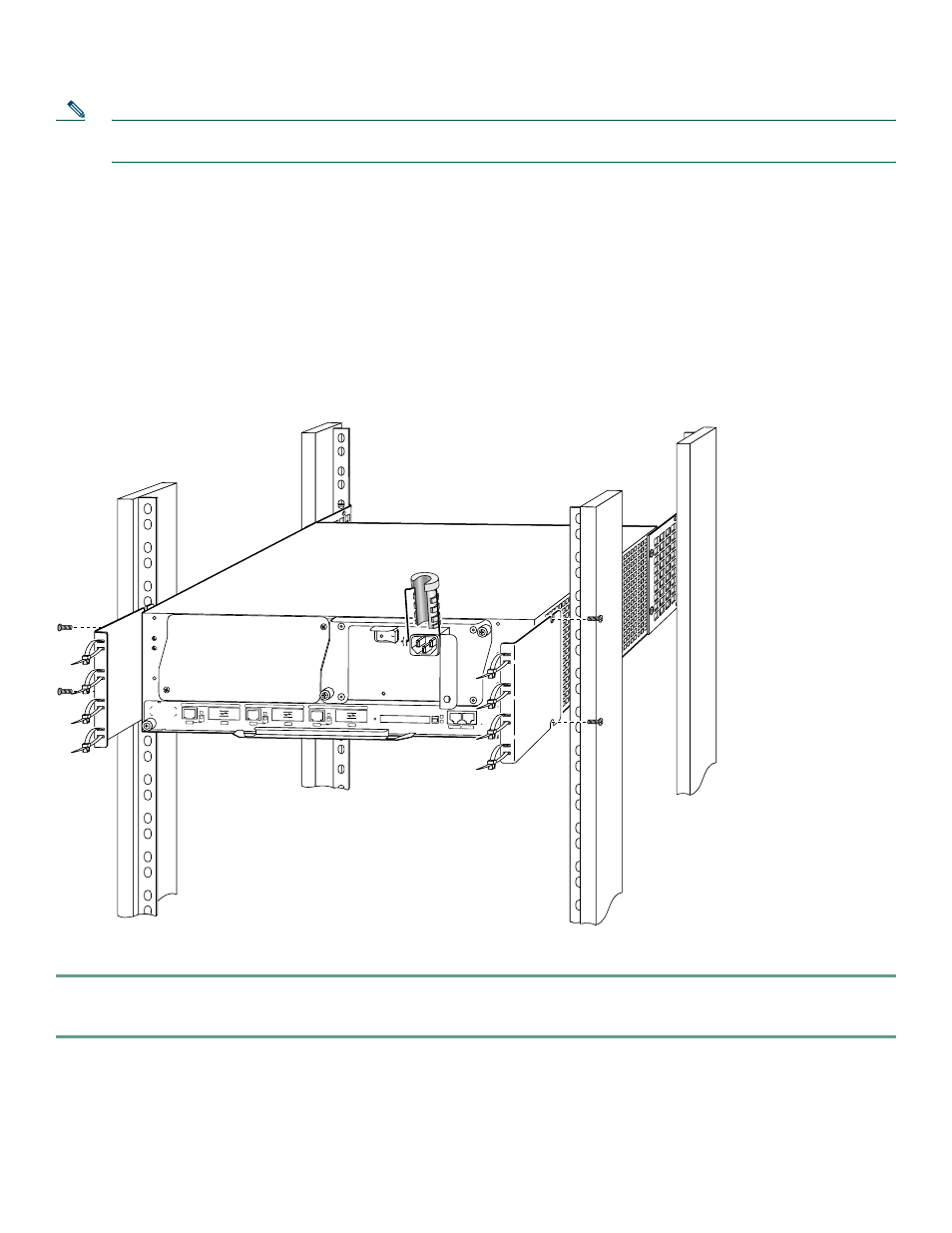

Figure 15
Placing Cables in the Cable-Management Brackets
Step 1
Place the GBIC cables, RJ-45 cables, or SFP cables through the NPE-G1 or NPE-G2 optical cable-management brackets.
Step 2
Place any cables from port adatpers, auxiliary and console ports, through the cable mangement brackets and secure.
H6423
