Specifications
1
Storage temperature:
-40˚–167˚F (-40˚–75˚C)
Operating temperature:
-22˚–167˚F (-30˚–75˚C)
Voltage:
24 VAC, Nominal 60Hz
18-30 VAC Maximum
Operating humidity:
5–95% RH
Panel Power:
4 VA @ 24 VAC
Current Draw Max:
75 VA @ 24 VAC
Current Draw Per Zone:
50 VA Max
2.1”
8”
8”
5.1”
Protection:
Electronic self resetting current
limiting for panel power and
damper zones
Configuration:
Zone number by switch setting
Maximum Zones:
2 Zones Per Expander Panel
Up to a Maximum of 14 Two Zone
Expanders = 32 Total
Zones (28 Expander Zones,
4 Main Panel Zones)

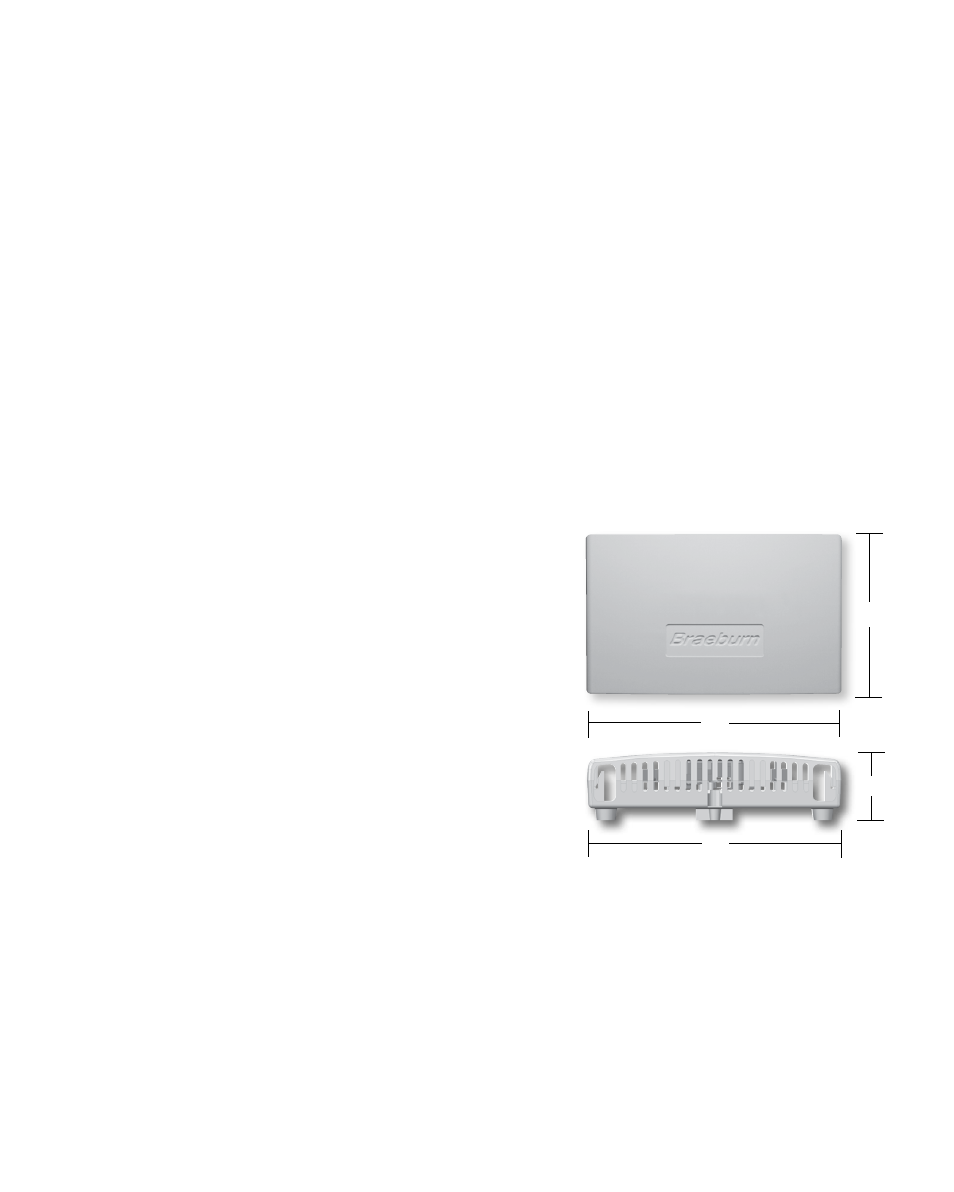

Dimensions:
See Figure 1
Figure 1
Table of Contents
1 Specifications.....................................................................................................................2
2 Suitable Mounting Locations...............................................................................................3
3 Wiring Diagrams............................................................................................................ 5-9
4 Zone Addressing.................................................................................................................9
5 Adding Zones to Main Panel..............................................................................................10
6 Operation...............................................................................................................................10
7 Error Conditions................................................................................................................ 11
8 Warranty........................................................................................................................... 12
