Page 9

9 Installer Guide

The Installer Settings must be properly configured in order for this thermostat to operate correctly. The Installer
Settings are menu driven. The portion of these settings that do not apply to your setup will be skipped. These
settings are indicated below with comments. More detail on each setting follows this table.

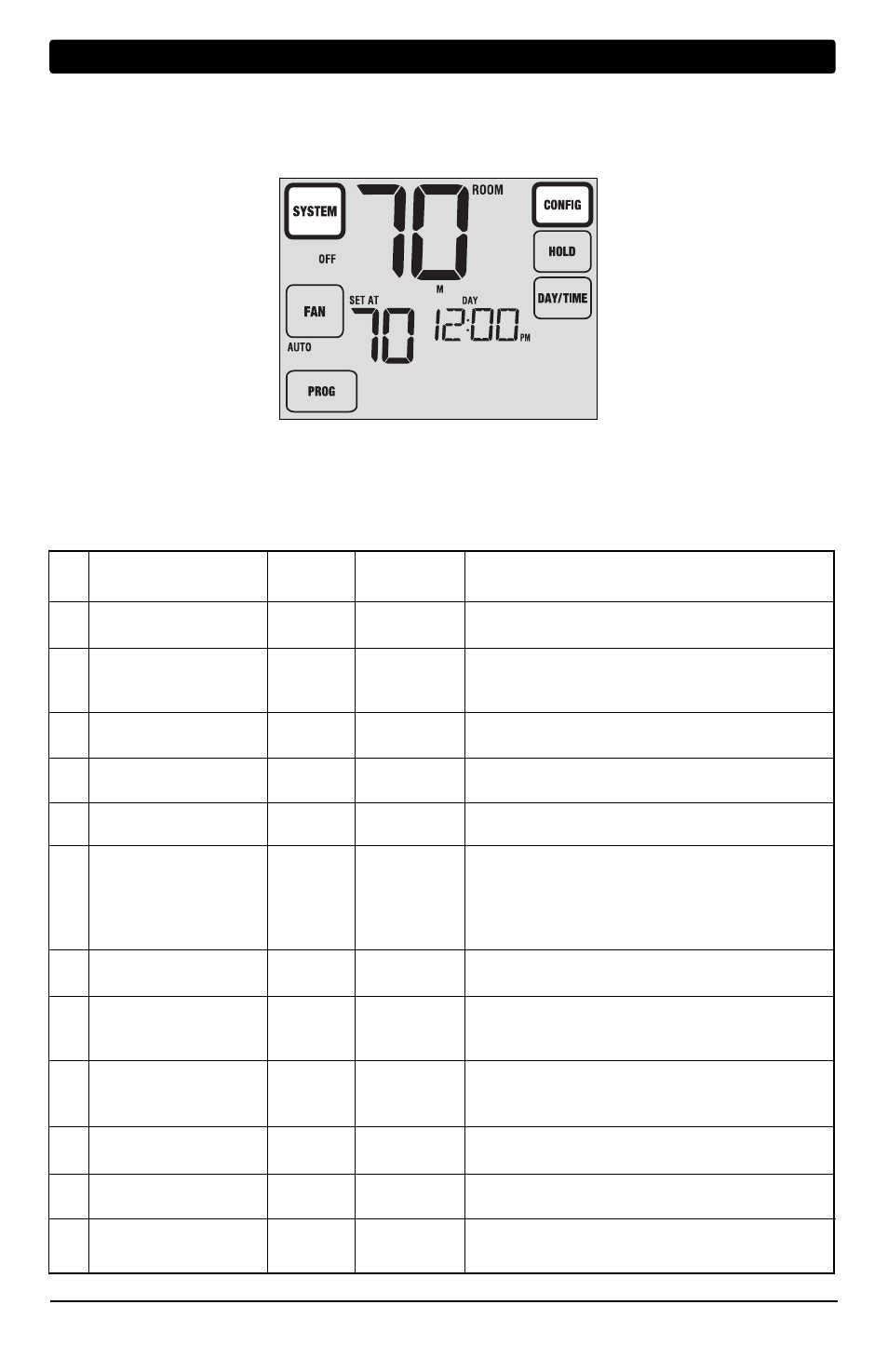

1. Touch and hold down the

SYSTEM and CONFIG TouchPads for 3 seconds.

2. Release both buttons and the first installer setting will be displayed.
3. Change settings as required using the

UP or DOWN portion of the SpeedBar

4. Touch

NEXT or BACK to move to the next or previous setting, touch RETURN to exit.

No. Installer Setting

Factory

Setting

Comments

(

Notes follow this table)

Default

Options

(More information follows this table)

1 Residential or

RES

Select for Residential profile

or Commercial Profile

COMM

Select for Commercial profile

2 Programming Mode

7 PROG

Select for 7 day programming mode

[note 1]

52 PROG

Select for 5-2 day programming mode

NO PROG

Select for non-programmable mode

3 Clock Format

12 HR

Select for 12 hour clock

24 HR

Select for 24 hour clock

4 Temperature Scale

F DEG

Select for Fahrenheit display

C DEG

Select for Celsius display

5 Auto Changeover

oF AUTO

Disables Auto Changeover mode

ON AUTO

Enables Auto Changeover mode

11CONV

Select for 1H/1C Conventional system

22CONV

Select for 2H/2C Conventional system

6 System Type

11CONV

11HP

Select for 1H/1C Heat Pump system

22HP

Select for 2H/2C Heat Pump system

32HP

Select for 3H/2C Heat Pump system

7 1st Stage Differential

0.5 DIF1

0.5, 1.0 or

Select a 1st stage temperature differential of .5°,

2.0 DIF1

1° or 2° F (.25°, .5° or 2° C)

8 2nd Stage Differential

2.0 DIF2

1.0, 2.0, 3.0, Select a 2nd stage temperature differential of 1°,

[note 2]

4.0, 5.0 or 2°, 3°, 4°, 5° or 6° F (.5°, 1°, 1.5°, 2°, 2.5° or 3° C)

6.0 DIF2

9 3rd Stage Differential

2.0 DIF3

1.0, 2.0, 3.0, Select a 3rd stage temperature differential of 1°, 2°,

[note 2]

4.0, 5.0 or 3°, 4°, 5° or 6° F (.5°, 1°, 1.5°, 2°, 2.5° or 3°C)

6.0 DIF3

10 1st Stage Fan Control

HG FAN 1

Select for 1st stage Gas heating

[note 3]

HE FAN 1

Select for 1st stage Electric heating

11 Emergency Heat]

HE EMER

Select for Electric Emergency Heat

Fan Control

[note 4]

HG EMER

Select for Gas Emergency Heat

12 Reversing Valve

REVO

Select for cool active Reversing Valve (O terminal)

(O/B Terminal)

[note 5]

REVB

Select for heat active Reversing Valve (B terminal)

4 Installer Settings
