Installer Guide 8

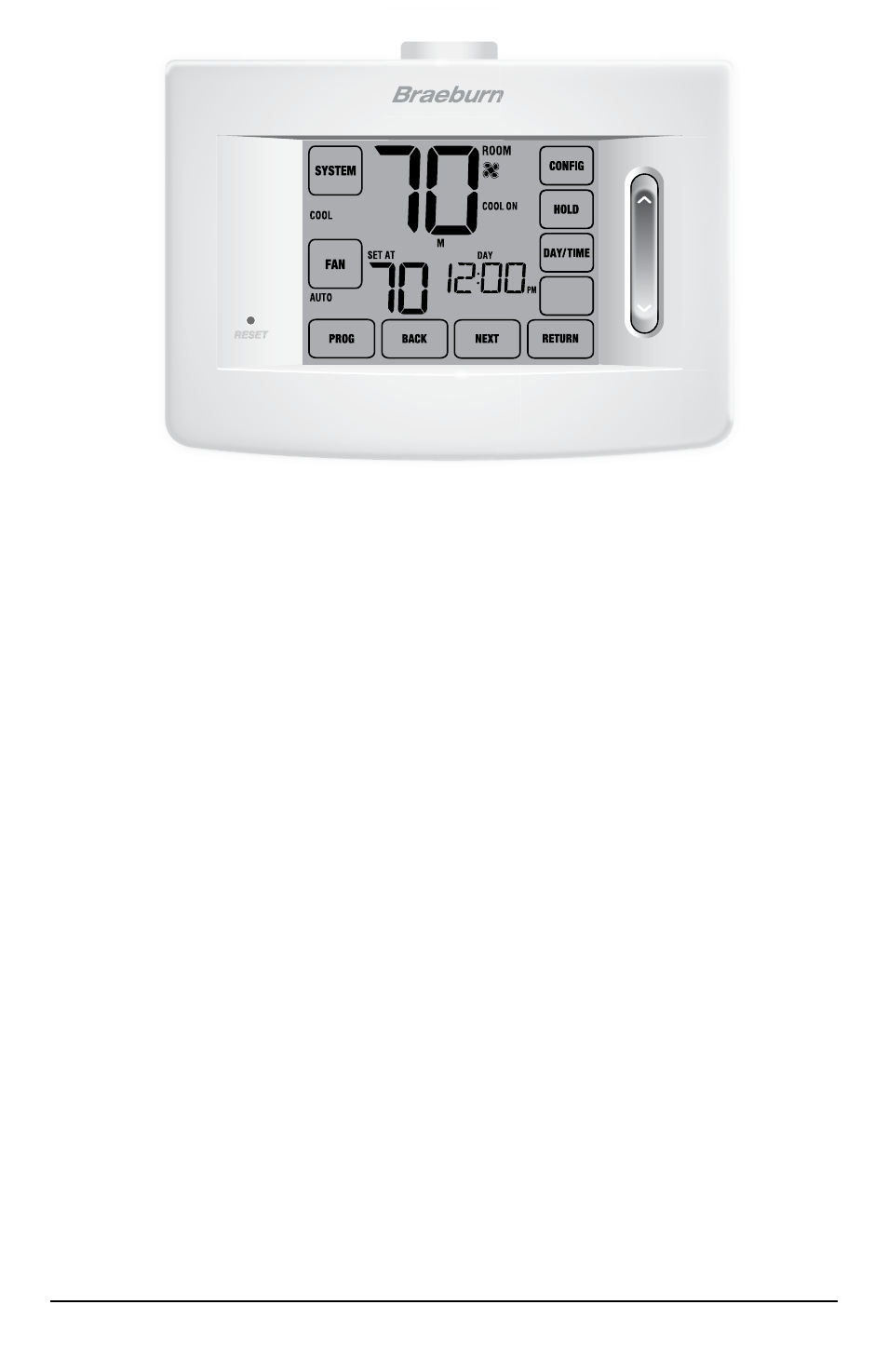

Thermostat TouchPads
NOTE: Thermostat TouchPads are located on the left, right and bottom portions of the display screen. They are
the “touch sensitive” segments used to adjust your thermostat. Depending on the equipment installed, all touch
pads may not show.
SYSTEM...... Selects AUTO (Heat/Cool), COOL, OFF HEAT or EMER (Emergency Heat)
FAN............. Selects AUTO, ON, CIRC (Circulation) and PROG (Program) fan modes
PROG.......... Selects programming mode or press for 3 seconds to select SpeedSet ® mode
HOLD.......... Enters / Exits the HOLD mode (program bypass)
DAY/TIME... Sets the current time and day of the week
BACK.......... Moves back in setting and programming modes
NEXT........... Moves forward in setting and programming modes
RETURN...... Returns to normal mode from program or settings modes
CONFIG....... Enters the User and Installer settings modes
HUMID........ Displays or adjusts the current humidity level
Outdoor Temperature
If an outdoor temperature sensor was connected, you may touch the room temperature area of the screen to
view the outdoor temperature.
