Braeburn 7320 Installer Guide - Manual (Page 6)

INSTRUCTIONS
HUMID
Installer Guide 6
NOTE: This thermostat ships configured as a 1H/1C conventional
thermostat. Confirm installer settings. See page 9.
UP UP
S1
S2
G
Y1
Y2
A
H
L
C
W1/E
/AUX1
W2/
AUX2
W3/
O/B
RH
RC
C
W1/E
/AUX1
S2
G

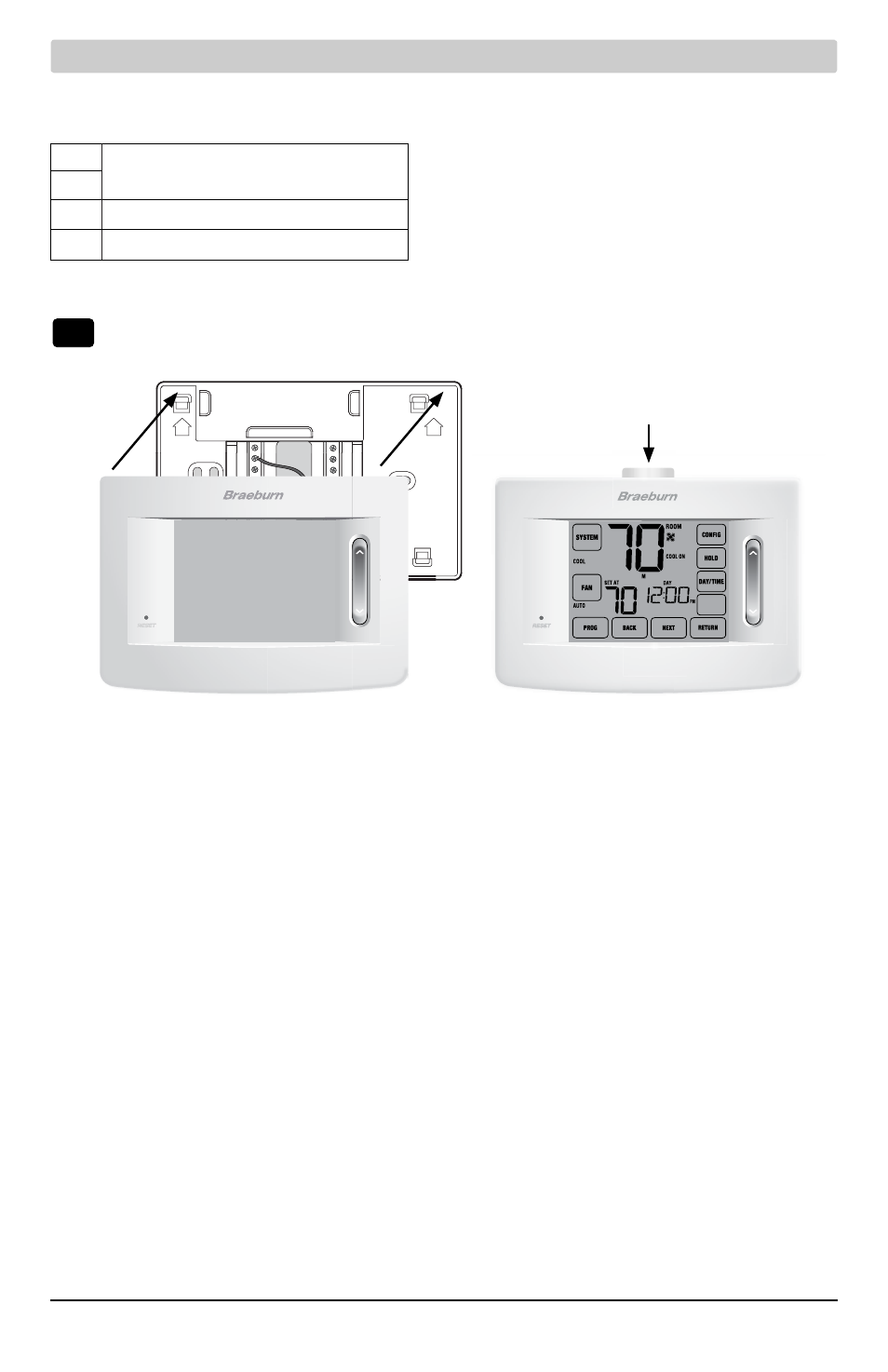

4 Attach Thermostat to Sub-Base
3) Insert Quick Reference Card into slot
on top of thermostat.
1) Line up the thermostat body with the sub-base.
2) Carefully push the thermostat body against the
sub-base until it snaps in place.
NOTE: Additional options are configured in the
Installer Settings section.
S1
S2
A Economizer, Fresh Air or Output Control
K Share-a-Wire TM Module [note 2]
NOTES - Additional Wiring Options
[1] Can be used to connect a Braeburn ® indoor or outdoor
wired remote sensor.
[2] Can be used to share a wire on existing installations
where a common connection (C wire) is required.
Additional Wiring Options - All System Types
Indoor or Outdoor Remote Sensor [note 1]
