S E AM L E SS HDBAS E T M AT RIX S W IT CHE R – HX - 2 344Z
49

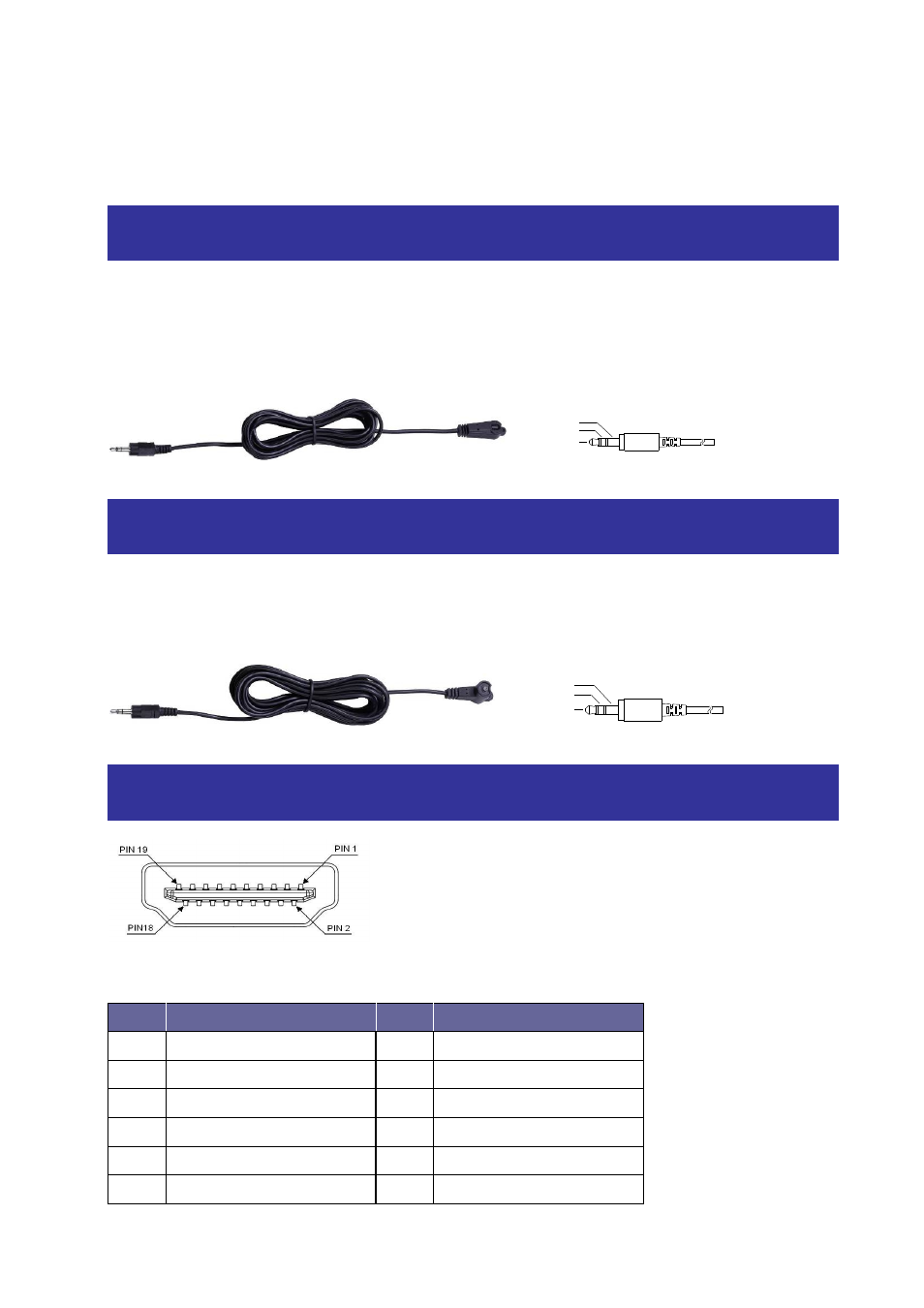

IR Receiver Cable Directions
Put IR Receiver cable into the Extender “IR IN” port and place the IR Receiver Cable, so
that you can aim at it easily with your IR remote controller.
IR Receiver Cable:
GND
+V
Sig
IR Blaster Cable Directions
Plug IR Blaster cable into Extender “IR OUT” port located on the front-panel.
IR Blaster Cable:
NC
P+
N-
HDMI Connector
HDMI Type A Connector host assignment:
Pin # Signal Pin # Signal
1 TMDS Data 2+ 11 TMDS Clock Shield
2 TMDS Data 2 Shield 12 TMDS Clock -
3 TMDS Data 2- 13 NC
4 TMDS Data 1+ 14 NC
5 TMDS Data 1 Shield 15 DDC SCL
6 TMDS Data 1- 16 DDC SDA
