S E AM L E SS HDBAS E T M AT RIX S W IT CHE R – HX - 2 344Z
39
“Refresh” button to renew related information in real time.

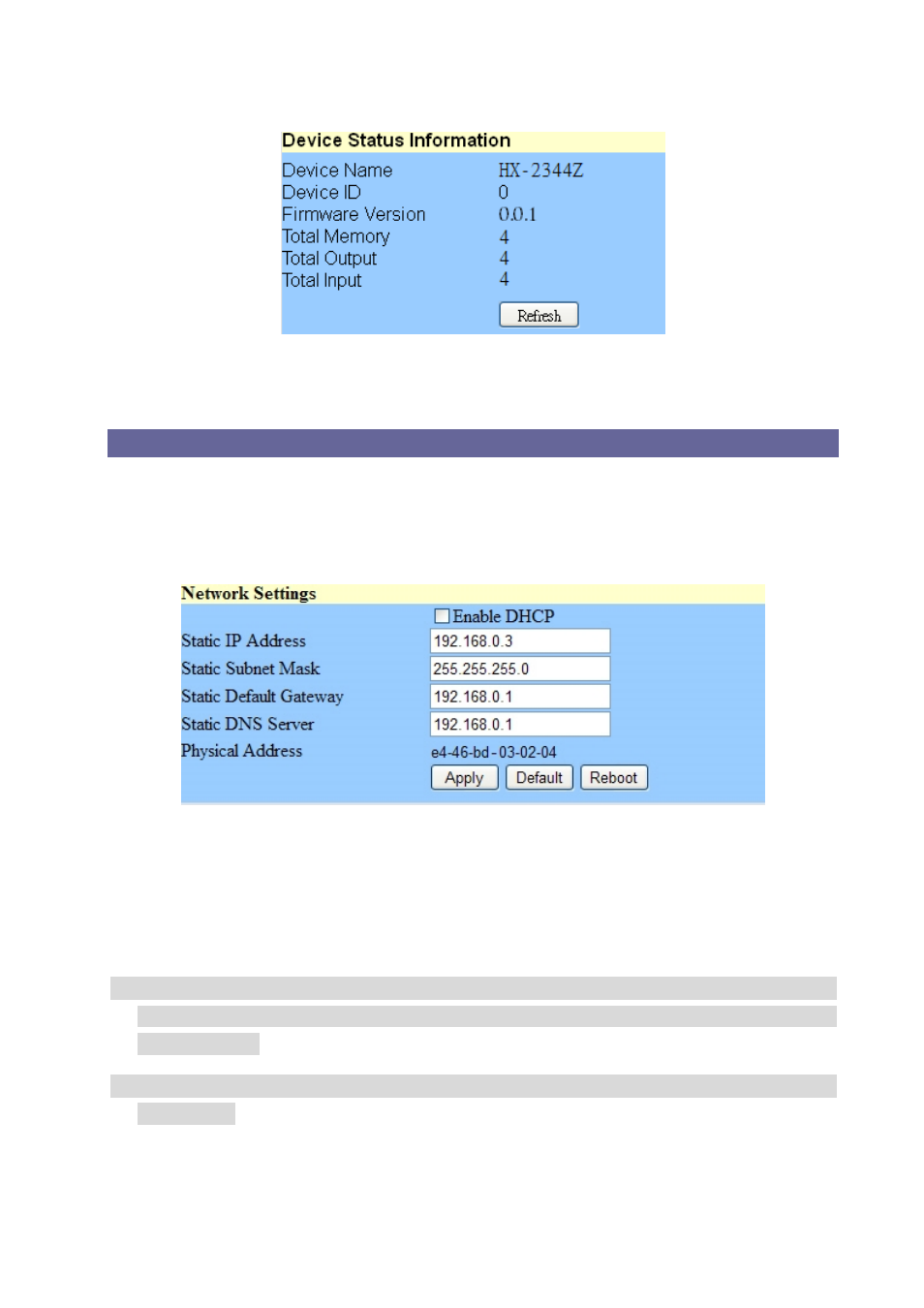

Figure 7-12 Device Status Information
7.3.3 LAN IP Function
In the main configuration menu, select Options button to pop-up the Browser ex.
“Windows Internet Explorer” dialog box, click “OK” to show the IP configuration
window as shown in Figure 7-13.
Figure 7-13 Network Settings
In the “Network Settings” window, you can set the IP information by yourself (Fix IP) or
click the Enable DHCP check box to get the IP from the DHCP (Float IP).
 Click the Default button to restore to default IP address. After changing the IP, you
have to restart (power off then power on) the Device to make the changed values
take effectively.
 You can also use the blue Switcher on the rear panel of the Device to reset the
ignored IP.
