S E AM L E SS HDBAS E T M AT RIX S W IT CHE R – HX - 2 344Z
41

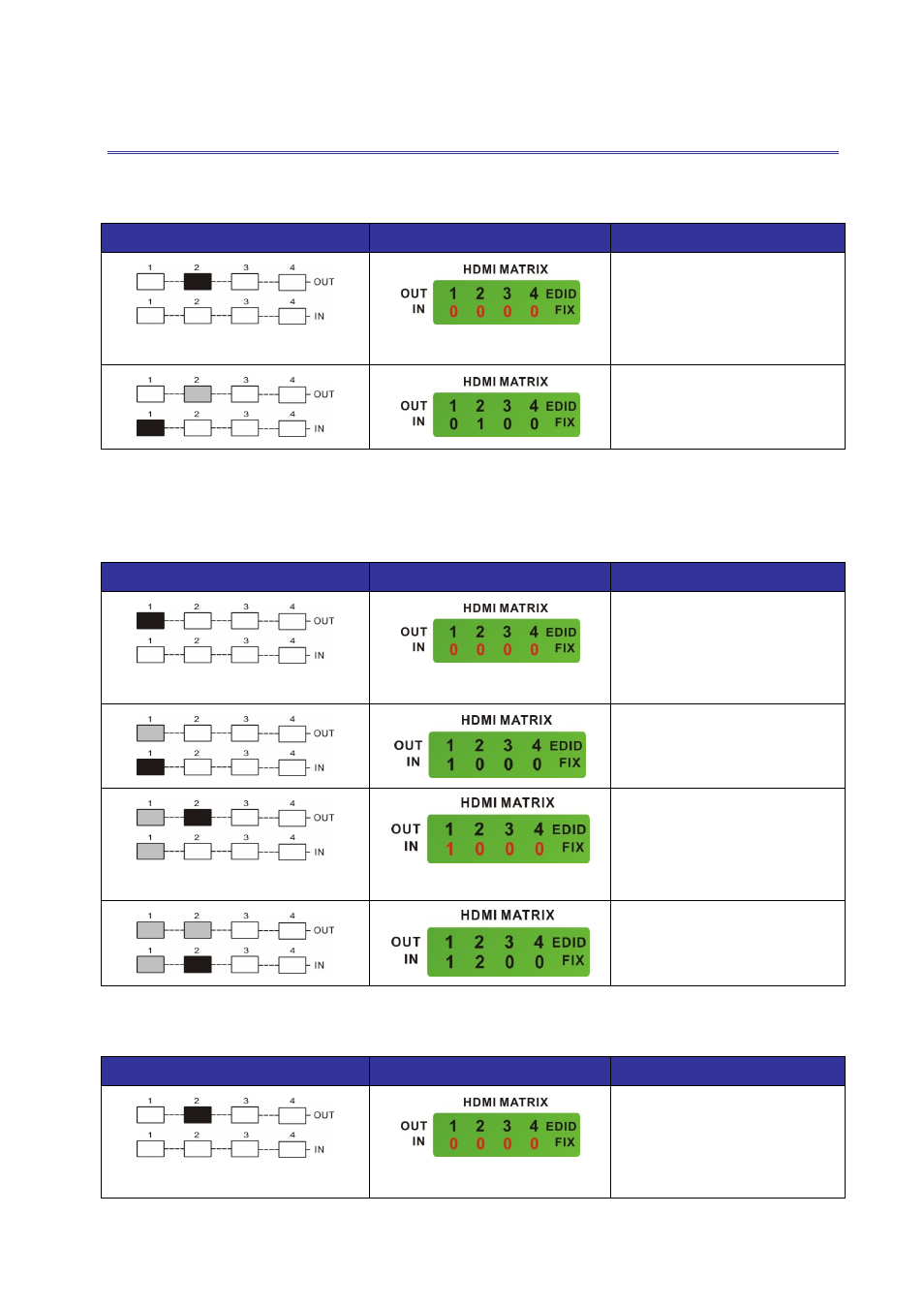

CHAPTER 8 OPERATION EXAMPLES
Example 1: Route the NO.1 input signal to the NO.2 output channel.
Key LCD Display Operation
1. Press the NO.2 key of the
output channel for 2 seconds,
then the input channels will
begin to flicker.
2. Press the NO.1 key of the
Input channel for 2 seconds.
Example 2: Route the NO.1 and NO.2 input signals to NO.1 and NO.2 output channels
respectively.
Key LCD Display Operation
1. Press the NO.1 key of the
output channel for 2 seconds,
then the input channels will
begin to flicker.
2. Press the NO.1 key of the
Input channel for 2 seconds.
3. Press the NO.2 key of the
output channel for 2 seconds,
then the input channels will
begin to flicker.
4. Press the NO.2 key of the
Input channel for 2 seconds.
Example 3: Delete “All” settings.
Key LCD Display Operation
1. Press the NO.2 key of the
output channel for 2 seconds,
then the input channels will
begin to flicker.
